Komponenter for switchboxes og skap - Schneider Electric Circuit breaker without current relay ComPacT NSX100N 50 kA at 415 VAC 50/60 Hz 100 A 3 poles - C10N3
Varenummer: 3271808

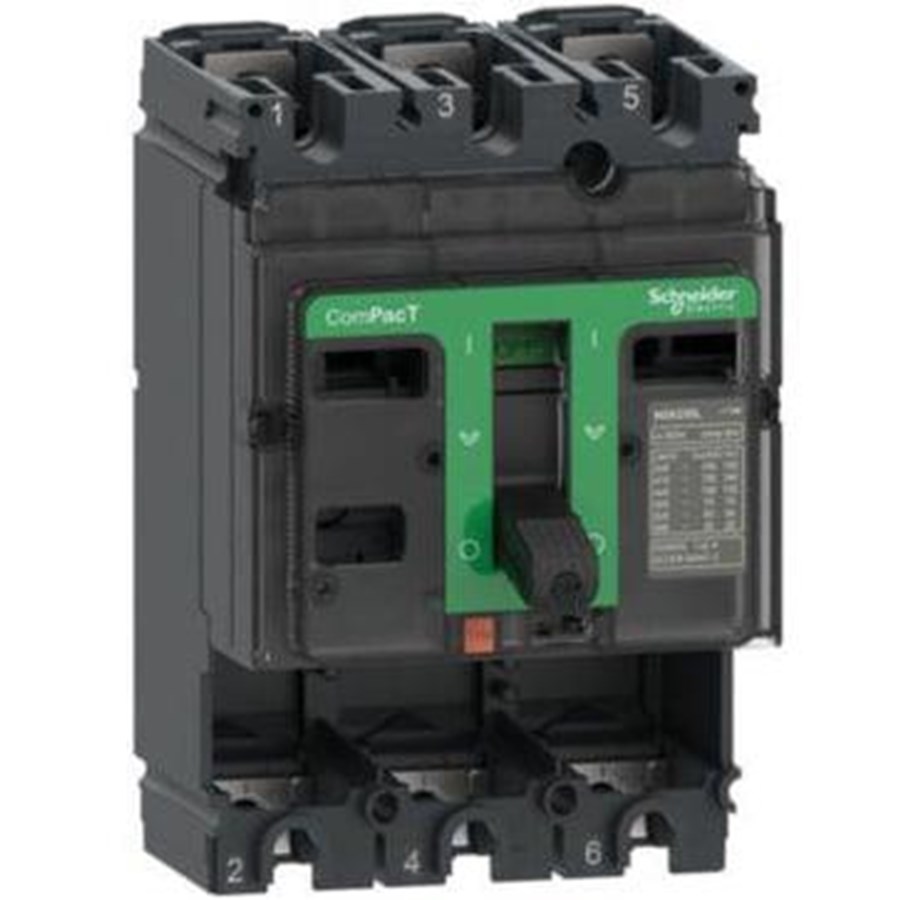

Schneider Electric Circuit breaker without current relay ComPacT NSX100N 50 kA at 415 VAC 50/60 Hz 100 A 3 poles

This is a 3 poles basic frame for ComPacT NSX100N. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit ordered separately. The breaking capacity Icu is 50kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 105mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100N is part of Schneider Electric EcoStruxure Power architecture.

Les mer
4 998,00 kr 3 998,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse

This is a 3 poles basic frame for ComPacT NSX100N. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit ordered separately. The breaking capacity Icu is 50kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 105mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100N is part of Schneider Electric EcoStruxure Power architecture.

Produsent
Varenummer
3271808
Model
C10N3
Ean
3606481999337
