Komponenter for switchboxes og skap - Schneider Electric Circuit breaker without current relay ComPacT NSX160B 25 kA at 415 VAC 50/60 Hz 160 A 3 poles - C16B3
Varenummer: 3271809
C16B3

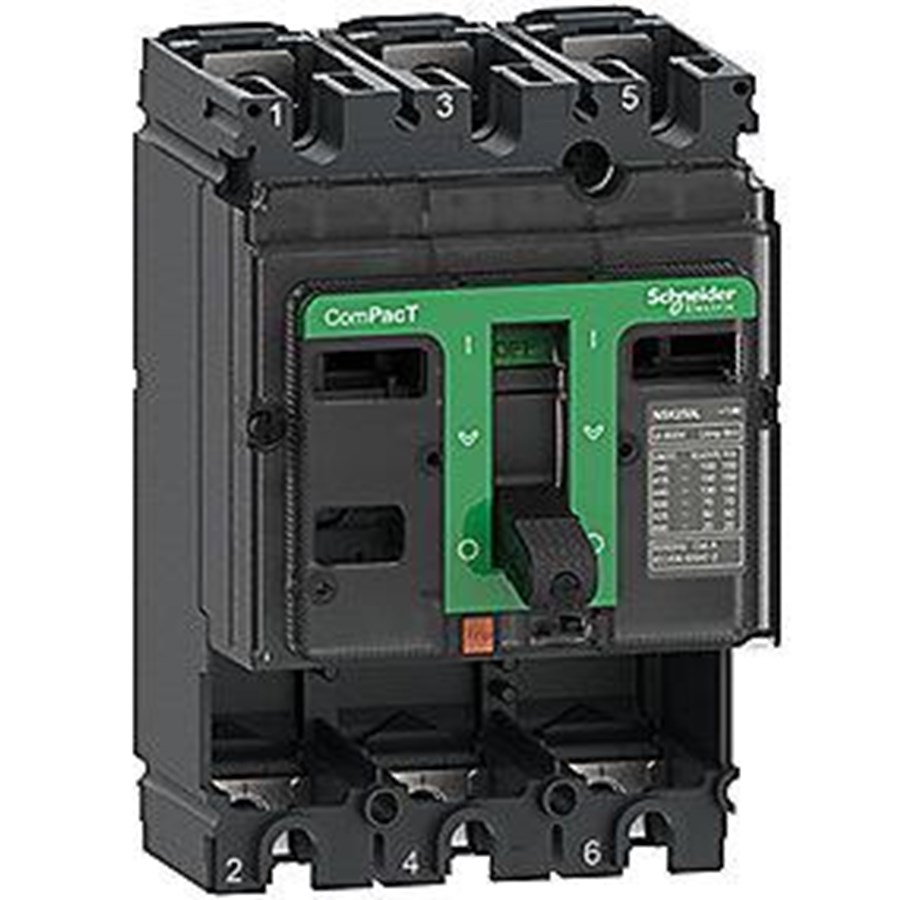

Schneider Electric Circuit breaker without current relay ComPacT NSX160B 25 kA at 415 VAC 50/60 Hz 160 A 3 poles

This is a 3 poles basic frame for ComPacT NSX160B. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 25kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 105mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160B is part of Schneider Electric EcoStruxure Power architecture.

Les mer
5 356,00 kr 4 284,80 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

This is a 3 poles basic frame for ComPacT NSX160B. ComPacT NSX is designed to optimize space and breaking capacity for all standard and specific applications. This basic frame comes without trip unit, and is compatible with any type of trip unit which has to be ordered separately The breaking capacity Icu is 25kA at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if there is an earth-leakage protection). It can be equipped with a variety of optional functions and accessories. The dimensions are 105mm x 161mm x 86mm. It ensures compliance with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160B is part of Schneider Electric EcoStruxure Power architecture.

Produsent
Varenummer
3271809
Model
C16B3
Ean
3606481999375
