Komponenter for switchboxes og skap - Schneider Electric Digital time switch with weekly program - CCT15441
Varenummer: 2899307

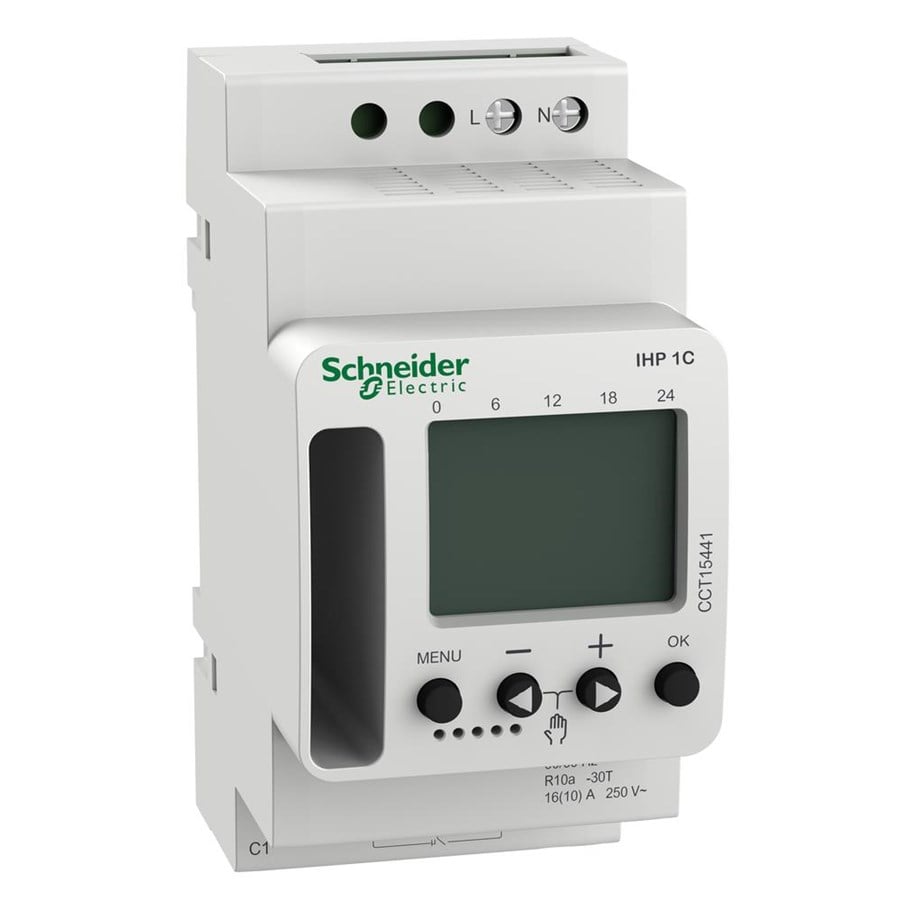

Schneider Electric Digital time switch with weekly program

Digital time switch with weekly program. Programming is carried out on the device. Brief instructions in the storage compartment For installation on TH35 DIN rails as per EN 60715Functions: 56 memory locations ON/OFF switching times Switch preselection ON/OFF permanent switching Manual switching Holiday program Toggling summer time/winter time: -automatic, can be deactivated, toggle rules for Europe,USA and other countries are already saved, customised toggle rules or toggling on a fixeddate can be selected PIN codingNominal voltage:230 AC, -15%/+10%, 50/60 HzMax. switching capacity:16 A, 250 V AC, cos phi=1,10 A, 250 V AC, cos phi=0.6Min. switching capacity:10 mA, 230 V AC,100 mA, 24 V AC/DCContact: Dry contactStandby power: 2 W: 200 WShortest switching time: 1 sConnections: Screw terminals, rigid/flexible 2x0.5 - 2.5 mm2, with end sleeve max.1x2.5 mm2Operating elements: 4 buttons for menu navigationAccuracy: 0.25 s/day (25 °C)Power reserve: 10 yearsIP protection rating: IP 20Insulation class: Class IIOvervoltage category: Class IIIAmbient temperature: -30 °C to +55 °CTransportation temperature: -30 °C to +70 °CStorage temperature: -30 °C to +70 °COperating humidity: 90% RH, no condensingTransportation humidity: 90% RH, no condensingStorage humidity: 90% RH, no condensingWeight: 114g (CCT15440 & CCT15441), 130g (CCT15442 & CCT15443)Dimension: 92.6 x 45 x 66.7 mm (Length x Width x Height)Device width: approx. 45 mm

Les mer
1 700,00 kr 1 360,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-6 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Digital timer IHP 1 channel 24/7 with 56 memories, languages: en, fr, da, nl, it, es, pt, da , no , sv and fi width 45mm Product description: Digital time switch with weekly program. Programming is done on the device. Short instructions in the storage room. For installation on TH35 DIN rails according to EN 60715Functions:¦¦56 memory locations¦¦On / off times¦¦Preselection selection ON / OFF permanent switch Manual switching Holiday program Switch between summer time and winter time: -automatic can be deactivated switching rules for Europe USA and other countries are already saved customized switching rules or switches on a fixed date can be selected PIN codingNominal voltage:230 AC,-15% / +10%,50/60 HzMax.switching capacity :16 A ,250 V AC ,cos phi =1.10 A ,250 V AC cos phi=0.6Min.switching capacity :10 mA ,230 V AC100 mA .24VAC/DCContact:Dry contactStandby power consumption :2 W200 WShortest switching time :1 sConnections:Screw terminals,rigid/flexible2x0.5-2.5 mm²,maximum1x2.5 mm²Operating elements:4 buttons for menu navigationAccuracy :0 .25 s/day(25°C)Power reserve :10 yearsIP protection rating IP20Insulation class Class IIOvervoltage category Class IIIAmbient temperature :-30°C to +55°CTransport temperature :-30°C to +70° CStorage temperature:-30°C to+70° CHumidity during operation90% RH,no condensationTransport humidity90% RH,no condensationStorage humidity90% RH,no condensationWeight114 g(CCT15440 & CCT15441),130g(CCT15442 & CCT15443)Dimension92 .6 x45 x66 .7 mm(length x width x height)Unit width: approx. 45 mm

Produsent
Varenummer
2899307
Model
CCT15441
Ean
3606489524456
Til produsentens hjemmeside

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
