Schneider Electric Interface relay complete with socket with screw terminals 6a

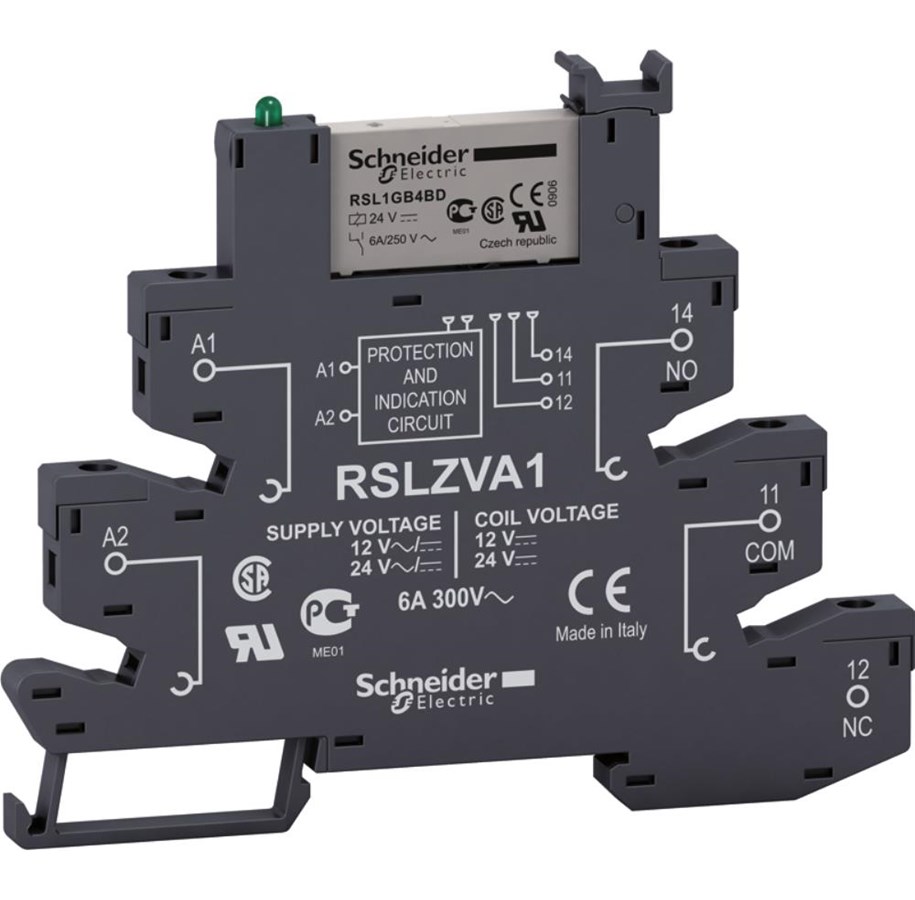

Zelio RSL Slim relays are the most compact socket relays in the Zelio range.With a width of only 6,2 mm. it saves valuable space on the DIN-rail of a panel.The RSL relays are available as either as a complete unit or as a separate relay and socket.The build-in protection circuit protects against reversed polarity and power surges from other equipment in the panel.A green LED on the front indicates if the there is supply to the relay.RSL1PVPU is a complete relay with both plug-in relay and socket mounted from the factory and with screw terminals.The supply voltage can be either 230VAC or 230VDC and the relay has a maximum load up to 6A at 230V (AC1)Electrical durability is 60.000 cycles at maximum load.If you have several RSL relays mounted side-by-side on a DIN-rail the RSLZ2 jumper can be used for easy wiring.The relays can be separated into small groups with the RSLZ3 butterfly isolator and all sockets can be marked with the RSLZ5 legends.interface plug-in relay - Zelio RSL - 1 C/O - 24 V DC - 6 A - with LED
