Komponenter for switchboxes og skap - Schneider Electric Loop rail 3PN 12M: 4P RCD 18mm pitch + N L1 N L2 N L3 N L1 N L2 N L3 9mm pitch allows mix of 1P - A9XPB812
Varenummer: 3271794
A9XPB812

Schneider Electric Loop rail 3PN 12M: 4P RCD 18mm pitch + N L1 N L2 N L3 N L1 N L2 N L3 9mm pitch allows mix of 1P

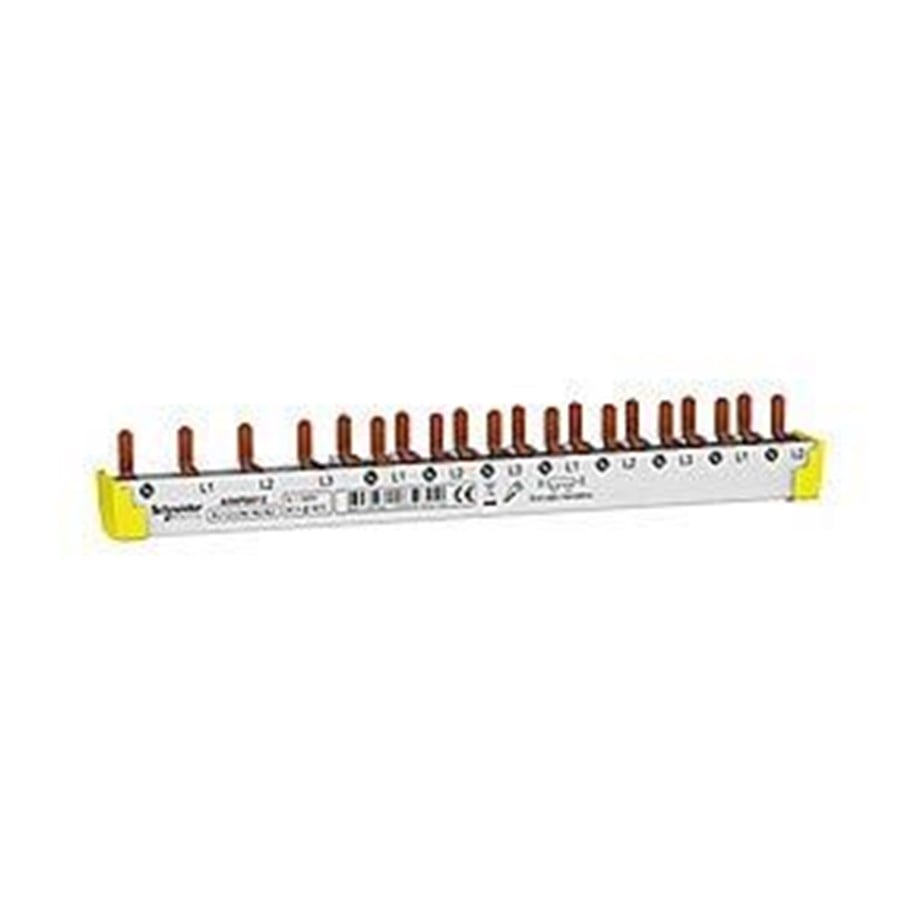

This Acti9 product is a hybrid horizontal comb busbar 12 modules for bottom connection. It is dedicated to 3L+N installations. The type is NL1L2L3 (Line). It is a set of 1 device. It is suitable for 4 devices (3P+N). The length is 218mm.The total number of modules of 18mm is 12. The distance between each way is 54mm. The Ie rated operational current at 40°C is 80A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 440VAC. The Ue rated operational voltage is 230VAC phase to neutral. The color of the device is white (RAL9003). The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with EN/IEC 60439-1 standard.

Les mer
190,00 kr 152,00 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

This Acti9 product is a hybrid horizontal comb busbar 12 modules for bottom connection. It is dedicated to 3L+N installations. The type is NL1L2L3 (Line). It is a set of 1 device. It is suitable for 4 devices (3P+N). The length is 218mm.The total number of modules of 18mm is 12. The distance between each way is 54mm. The Ie rated operational current at 40°C is 80A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 440VAC. The Ue rated operational voltage is 230VAC phase to neutral. The color of the device is white (RAL9003). The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with EN/IEC 60439-1 standard.

Produsent
Varenummer
3271794
Model
A9XPB812
Ean
3606481832702
