Schneider Electric Multifunc timer 1c o 12 240vac dc

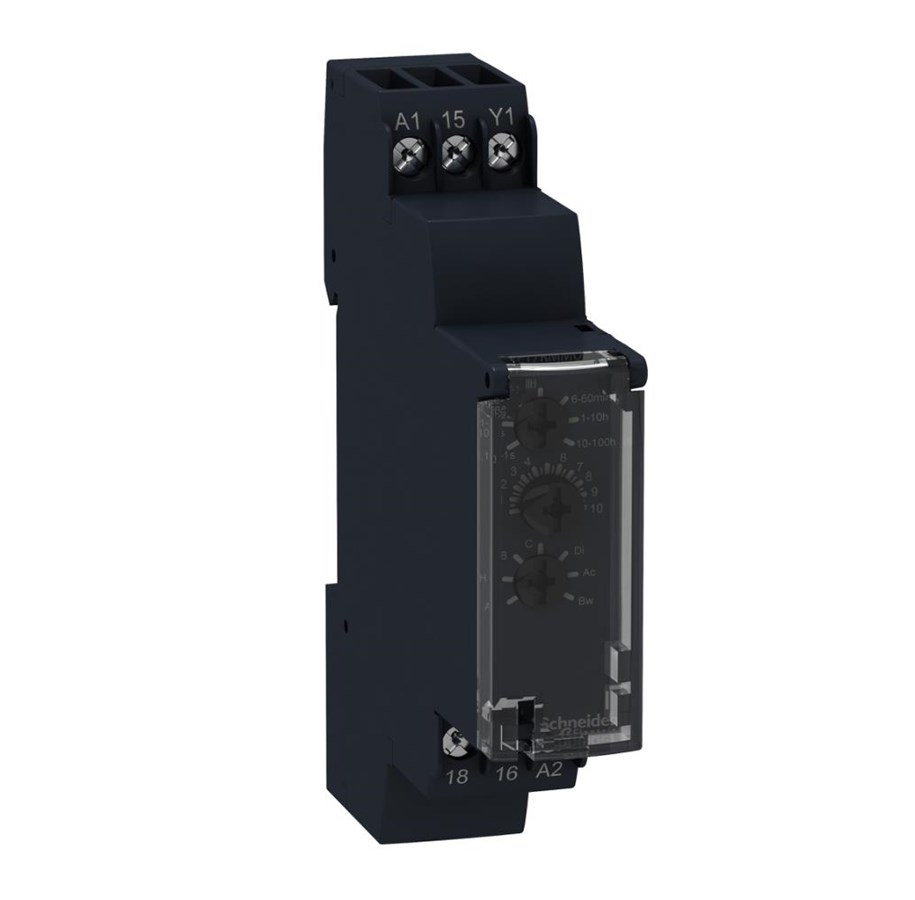

Timer 17.5mm multifunction 0.1s-100t 1 C/O 5A 12-240VAC/DC Product description: The Zelio RE17 series is a compact range of timers for easy installation on a DIN rail in a panel. With its width of only 17.5 mm, it takes up very little valuable space in the panel and the timer's design allows it to be placed behind a cover on the front of the panel if desired. The transparent front cover protects the timer from dust and dirt and can be locked to prevent unintentional adjustment of the timer.RE17RMMW is a multifunction timer with seven different timing functions.The supply voltage can be anything from 12-240V AC/DC.The maximum load on the contact set is 5A.RE17RMMW has seven different timing functions described below:A: Delayed pull-in when power is supplied to the timerH: Adjustable pulse (one-shot) when power is supplied to the timerB Adjustable pulse (one-shot) activated by control input Y1C: Delayed drop-out activated when voltage is removed from control input Y1Di Symmetrical blink (pulse-pause) starting with one pulseAc Delayed pull-in and delayed drop-out activated by control input Y1Bw Adjustable pulse triggered by both high and low edges on control input Y1The time range can be freely adjusted within one of these seven time ranges using two adjustment screws on the front.RE17RMMW has following time ranges:0.1-1 second, ​​​​​​​ ​​​​​​​ ​​​​​​​ ​​​ ​ ​ ​ ​ ​ ​​                                                                                                                                                      1-10 seconds,6-60 seconds,1-10 minutes,6-60 minutes,1-10 hours and 10-100 hours.The LED on the front indicates the status of the relay output. Technical specifications: Current (A): 8AConnection: Screw terminals
