Schneider Electric Multifunc timer 1c o 24vac dc 240vac

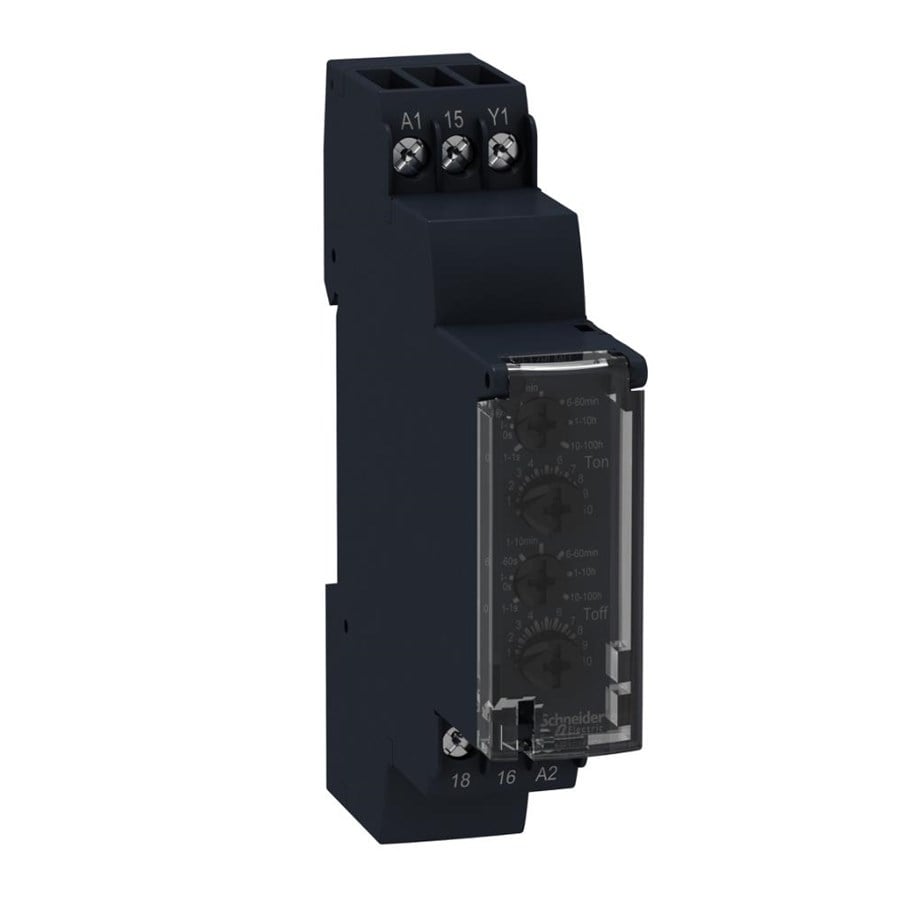

Timer 17.5mm asymmetric flash 0.1s-100t 1 C/O 5A 24VDC/24-240VAC Product description: The Zelio RE17 series is a compact range of timers designed for easy installation on a DIN rail in a control panel. With its width of only 17.5 mm, it takes up very little valuable space in the panel and its design allows it to be placed behind a cover on the front of the panel if desired. The transparent front cover protects the timer from dust and dirt, and it can be locked to prevent accidental adjustment of the timer.RE17RLMU is an asymmetric flashing timer that is activated when the connection to Y1 is removed. The power supply voltage can be either 24VDC or 24-240V AC.The maximum load on the contact set is 5A.The time range can be freely adjusted within one of seven selected time ranges using four adjustment screws on the front.The top set of screws sets the period during which output is activated, while bottom set sets pause time.RE17RLMU has following time ranges:0.1-1 second1-10 seconds6-60 seconds1-10 minutes6-60 minutes1-10 hours10 -100 hoursThe LED on front indicates status of relay output Technical specifications: Current (A):8ATerminal type:Screw terminalsWidth:17.5mm
