Komponenter for switchboxes og skap - Schneider Electric Resi9 XP Load disconnector/main switch 4P 40A 72mm - R9PS440
Varenummer: 3271786

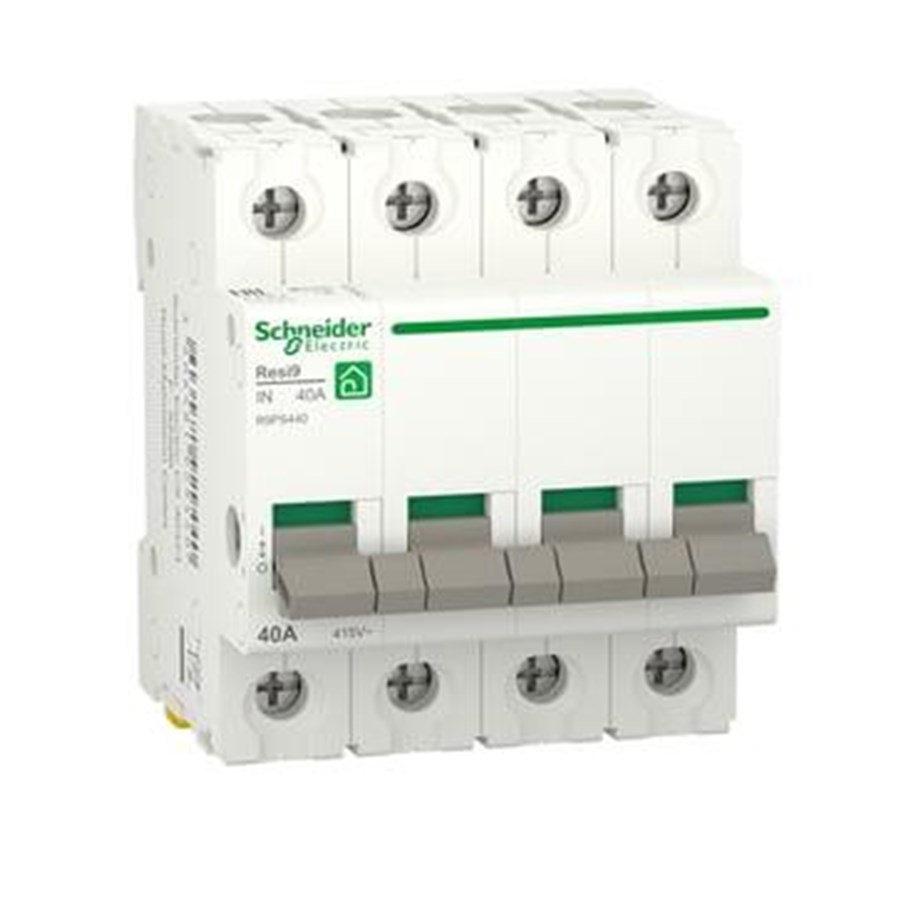

Schneider Electric Resi9 XP Load disconnector/main switch 4P 40A 72mm

This Resi9 product is a switch disconnector. It is a 4 poles switch disconnector with 40A rated current at 415VAC. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. Electrical endurance goes up to 10000 cycles . Mechanical endurance goes up to 50000 cycles . The Ui rated insulation voltage is 500 VAC. It has a Uimp rated impulse withstand voltage of 6kV. The operating frequency is 50Hz or 60Hz. It can be mounted on a DIN rail for modular installation. Its width is 8 pitches of 9mm. The dimensions are (W) 72mm x (H) 81mm x (D) 70.5mm . The product weight is 309g. The color is white (RAL9003). According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60669-2-4 standard.

Les mer
350,00 kr 280,00 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

This Resi9 product is a switch disconnector. It is a 4 poles switch disconnector with 40A rated current at 415VAC. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. Electrical endurance goes up to 10000 cycles . Mechanical endurance goes up to 50000 cycles . The Ui rated insulation voltage is 500 VAC. It has a Uimp rated impulse withstand voltage of 6kV. The operating frequency is 50Hz or 60Hz. It can be mounted on a DIN rail for modular installation. Its width is 8 pitches of 9mm. The dimensions are (W) 72mm x (H) 81mm x (D) 70.5mm . The product weight is 309g. The color is white (RAL9003). According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60669-2-4 standard.

Produsent
Varenummer
3271786
Model
R9PS440
Ean
3606481929440
