Komponenter for switchboxes og skap - Schneider Electric Resi9 XP MCB/circuit breaker 1PN C-characteristic 13A 6kA 18mm - R9P19613
Varenummer: 3271860
R9P19613

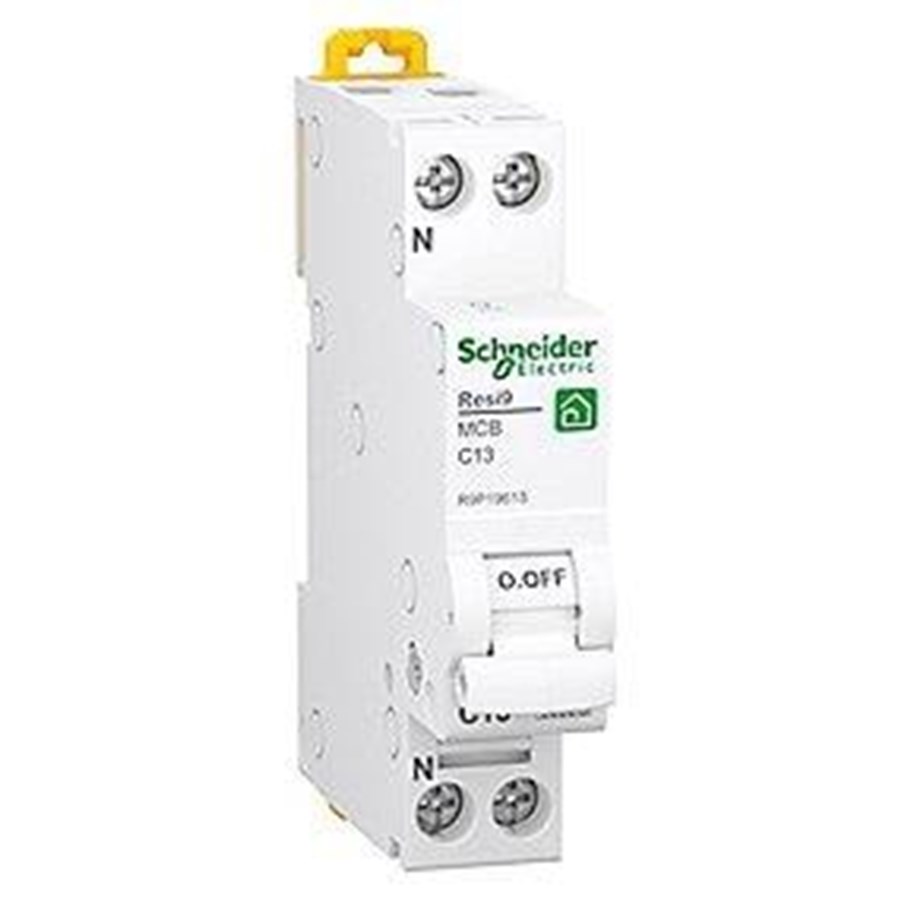

Schneider Electric Resi9 XP MCB/circuit breaker 1PN C-characteristic 13A 6kA 18mm

This Resi9 product is a low voltage miniature circuit-breaker (MCB). It is a 1P+N circuit breaker with 1 protected pole and 13A In rated current and C tripping curve. The Icn rated short-circuit breaking capacity is up to 6000A at 230VAC with operating frequency of 50Hz to 60Hz conforming to EN/IEC 60898-1 standard. This miniature circuit-breaker protects circuit against short-circuit and overload current. This product complies with EN/IEC 60898-1 standard. The electrical endurance is up to 7500 cycles and the mechanical endurance is up to 20000 cycles. The Resi9 is targeted to residential for individual and collective buildings. This circuit-breaker has an ON/OFF indication for local signalling with toggle control. It has a tunnel type terminals connection at top or bottom. The connection allows rigid copper cables. The cable cross section capacity is from 1mm2 to 16mm2. The connection allows flexible copper cables. The cable cross section capacity is from 1mm2 to 10mm2. The connection allows flexible with ferrule copper cables. The cable cross section capacity is from 1mm2 to 10mm2. The Ue rated operational voltage is up to 230VAC with operating frequency of 50Hz to 60Hz. The Ui rated insulation voltage is up to 440VAC. The Uimp rated impulse withstand voltage is 4kV. The overvoltage category is 3. It can be mounted on DIN rail for modular installation. The width in 9mm pitch is 2. The dimensions are (W) 18mm x (H) 81mm x (D) 70.5mm. The product colour is white (RAL 9003). The product weight is 110g. The pollution degree is 2 conforming to EN/IEC 60898-1 standard. The relative humidity is 95% at 55°C. The level of tropicalisation is 2 conforming to IEC 60068-1 standard. The limitation class is 3 conforming to EN/IEC 60898-1 standard. The wire stripping length is 13mm (top or bottom). The tightening torque of connection is 2N.m (top or bottom) for PZ2 screwdriver type. According to IEC 60529 standard, the IP degree of protection is IP20 and becomes IP40 once in mod

Les mer
96,00 kr 76,80 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

This Resi9 product is a low voltage miniature circuit-breaker (MCB). It is a 1P+N circuit breaker with 1 protected pole and 13A In rated current and C tripping curve. The Icn rated short-circuit breaking capacity is up to 6000A at 230VAC with operating frequency of 50Hz to 60Hz conforming to EN/IEC 60898-1 standard. This miniature circuit-breaker protects circuit against short-circuit and overload current. This product complies with EN/IEC 60898-1 standard. The electrical endurance is up to 7500 cycles and the mechanical endurance is up to 20000 cycles. The Resi9 is targeted to residential for individual and collective buildings. This circuit-breaker has an ON/OFF indication for local signalling with toggle control. It has a tunnel type terminals connection at top or bottom. The connection allows rigid copper cables. The cable cross section capacity is from 1mm2 to 16mm2. The connection allows flexible copper cables. The cable cross section capacity is from 1mm2 to 10mm2. The connection allows flexible with ferrule copper cables. The cable cross section capacity is from 1mm2 to 10mm2. The Ue rated operational voltage is up to 230VAC with operating frequency of 50Hz to 60Hz. The Ui rated insulation voltage is up to 440VAC. The Uimp rated impulse withstand voltage is 4kV. The overvoltage category is 3. It can be mounted on DIN rail for modular installation. The width in 9mm pitch is 2. The dimensions are (W) 18mm x (H) 81mm x (D) 70.5mm. The product colour is white (RAL 9003). The product weight is 110g. The pollution degree is 2 conforming to EN/IEC 60898-1 standard. The relative humidity is 95% at 55°C. The level of tropicalisation is 2 conforming to IEC 60068-1 standard. The limitation class is 3 conforming to EN/IEC 60898-1 standard. The wire stripping length is 13mm (top or bottom). The tightening torque of connection is 2N.m (top or bottom) for PZ2 screwdriver type. According to IEC 60529 standard, the IP degree of protection is IP20 and becomes IP40 once in mod

Produsent
Varenummer
3271860
Model
R9P19613
Ean
3606485849614
