Komponenter for switchboxes og skap - Schneider Electric Resi9 XP RCBO/combination switch 3PN C-characteristic 10A 6kA 30mA class A 90mm - R9D55710
Varenummer: 3271791

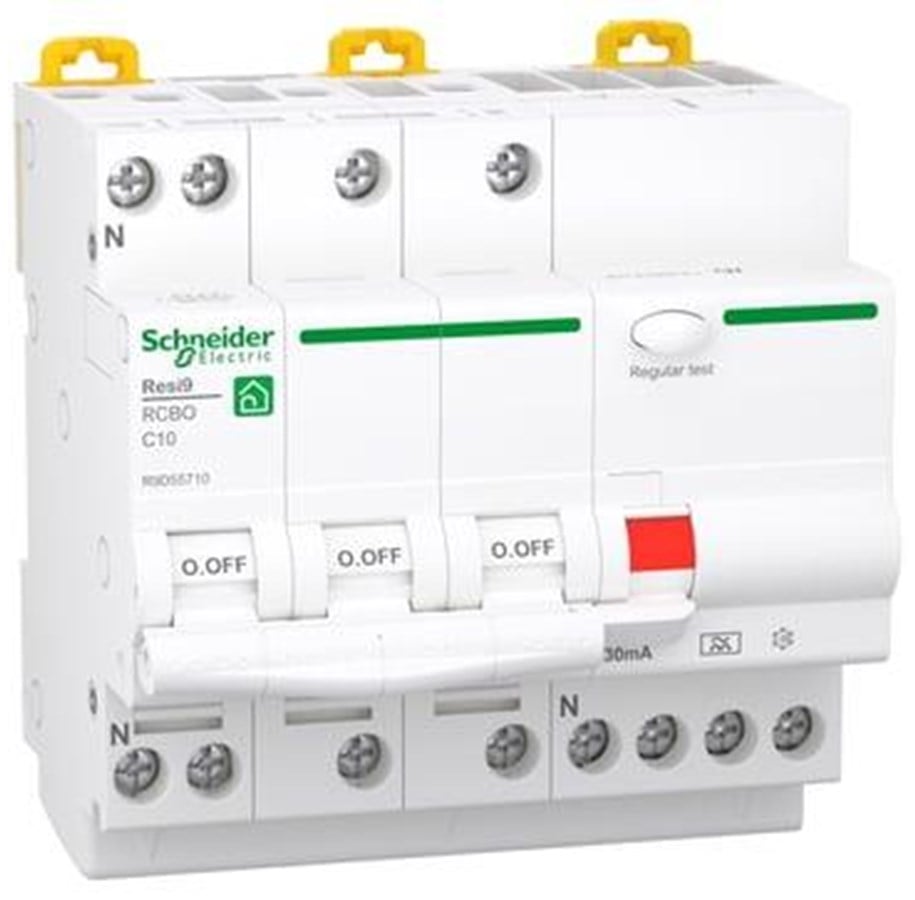

Schneider Electric Resi9 XP RCBO/combination switch 3PN C-characteristic 10A 6kA 30mA class A 90mm

This Resi9 product is a modular residual current breaker with overcurrent protection (RCBO). It is a 3P+N circuit breaker with 3 protected poles and 10A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The rated short-circuit breaking capacity is up to 6000A conforming to EN/IEC 61009-2-1 standard. This product protects against short-circuit, cable overload, electrical shock by indirect contact and fire hazards. It brings safety, reliable solution for commercial and industrial applications with high breaking capacity. This product complies with EN/IEC 61009-2-1 and EN/IEC 61009-1 standards. The electrical endurance is up to 7500 cycles and the mechanical endurance is up to 20000 cycles. This circuit-breaker has a position contact indicator, and also has a ON/OFF indication for local signalling with toggle control. It has a tunnel type terminals connection at top or bottom. The connection allows rigid copper cables. The cable cross section capacity is from 1mm2 to 16mm2. The connection allows flexible copper cables. The cable cross section capacity is from 1mm2 to 10mm2. The connection allows flexible with ferrule copper cables. The cable cross section capacity is from 1mm2 to 10mm2. The Ue rated operational voltage is up to 400VAC with operating frequency of 50Hz. The Ui rated insulation voltage is up to 400V. The Uimp rated impulse withstand voltage is 4kV. The overvoltage category is 3. It can be mounted on DIN rail for modular installation. The width in 9mm pitch is 10. The dimensions are (W) 90mm x (H) 91mm x (D) 72.5mm. The product colour is white (RAL 9003). The product weight is 500g. The pollution degree is 2. The tightening torque of connection is 2N.m (top or bottom) for PZ2 screwdriver type. The wire stripping length is 13mm (top or bottom). According to IEC 60529 standard, the IP degree of protection is IP20 and becomes IP40 once in mo

Les mer
1 337,00 kr 1 069,60 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

This Resi9 product is a modular residual current breaker with overcurrent protection (RCBO). It is a 3P+N circuit breaker with 3 protected poles and 10A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The rated short-circuit breaking capacity is up to 6000A conforming to EN/IEC 61009-2-1 standard. This product protects against short-circuit, cable overload, electrical shock by indirect contact and fire hazards. It brings safety, reliable solution for commercial and industrial applications with high breaking capacity. This product complies with EN/IEC 61009-2-1 and EN/IEC 61009-1 standards. The electrical endurance is up to 7500 cycles and the mechanical endurance is up to 20000 cycles. This circuit-breaker has a position contact indicator, and also has a ON/OFF indication for local signalling with toggle control. It has a tunnel type terminals connection at top or bottom. The connection allows rigid copper cables. The cable cross section capacity is from 1mm2 to 16mm2. The connection allows flexible copper cables. The cable cross section capacity is from 1mm2 to 10mm2. The connection allows flexible with ferrule copper cables. The cable cross section capacity is from 1mm2 to 10mm2. The Ue rated operational voltage is up to 400VAC with operating frequency of 50Hz. The Ui rated insulation voltage is up to 400V. The Uimp rated impulse withstand voltage is 4kV. The overvoltage category is 3. It can be mounted on DIN rail for modular installation. The width in 9mm pitch is 10. The dimensions are (W) 90mm x (H) 91mm x (D) 72.5mm. The product colour is white (RAL 9003). The product weight is 500g. The pollution degree is 2. The tightening torque of connection is 2N.m (top or bottom) for PZ2 screwdriver type. The wire stripping length is 13mm (top or bottom). According to IEC 60529 standard, the IP degree of protection is IP20 and becomes IP40 once in mo

Produsent
Varenummer
3271791
Model
R9D55710
Ean
3606485849652
