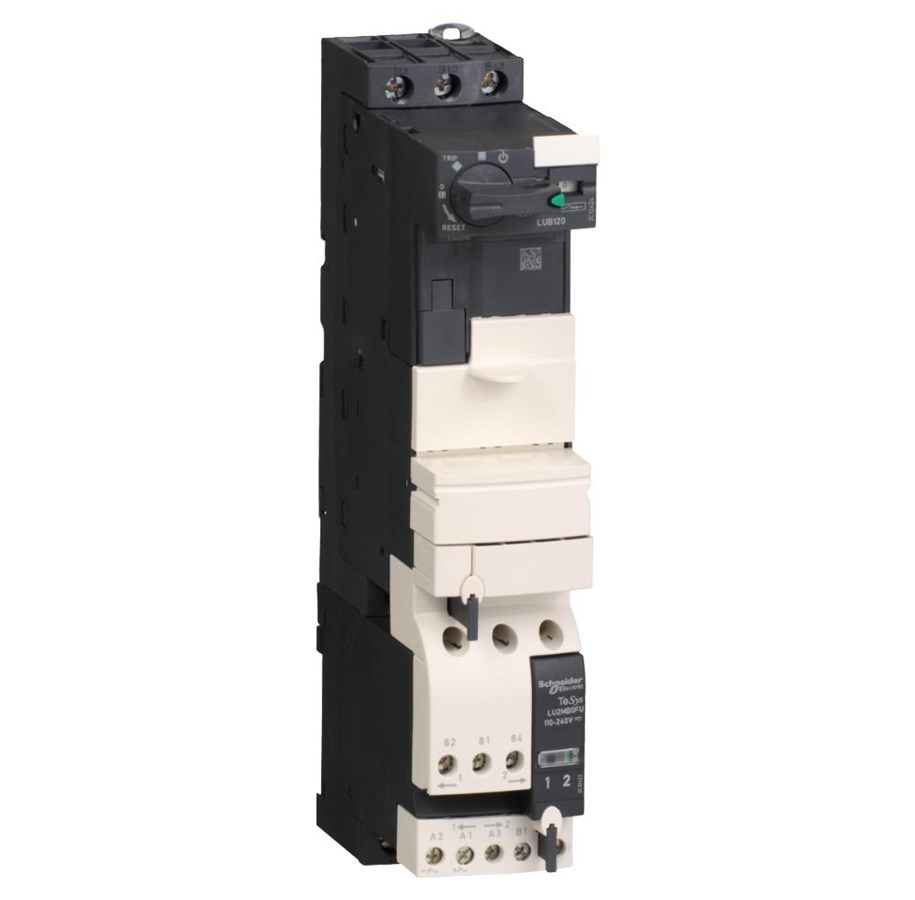

Schneider Electric Revers.12a 48-72v ac/dc with screw cla

Reversing 12A M/KL.24VDC Product description: TeSys U - Motor starters up to 15 kW With a capacity of up to 32 A/15 kW, TeSys U consists of: • A 45 mm base module (1): with two indications for nominal current, reversing or non-reversing, breaker function and built-in interference suppression • One of three possible control units that can be clipped on: Standard-CU: protection against overload and short circuit/CU which can be expanded: + alarm and fault differentiation/multifunctional CU (2): real-time control of motor load, local or remote diagnostics and parameter setup • One of three possible automation modules that can be clipped on: (3): Modbus, CANopen, AS-Interface and Profibus DP, Ethernet, DeviceNet Fipio Interbus S via Advantys STB le-module or a simple parallel link • Two optional 45 mm power modules: current limiter(4) and switch relay(5) Benefits A simple and compact motor starter We are introducing the first intelligent starter that can integrate motor control, management and switching functions in a single 45 mm wide unit! It is compact, simple modular design allows it to adapt to all applications.
