Komponenter for switchboxes og skap - Schneider Electric Tesys u standard control unit luca - class 10 - 8...32 a - 24 v dc - LUCA32BL
Varenummer: 2952232

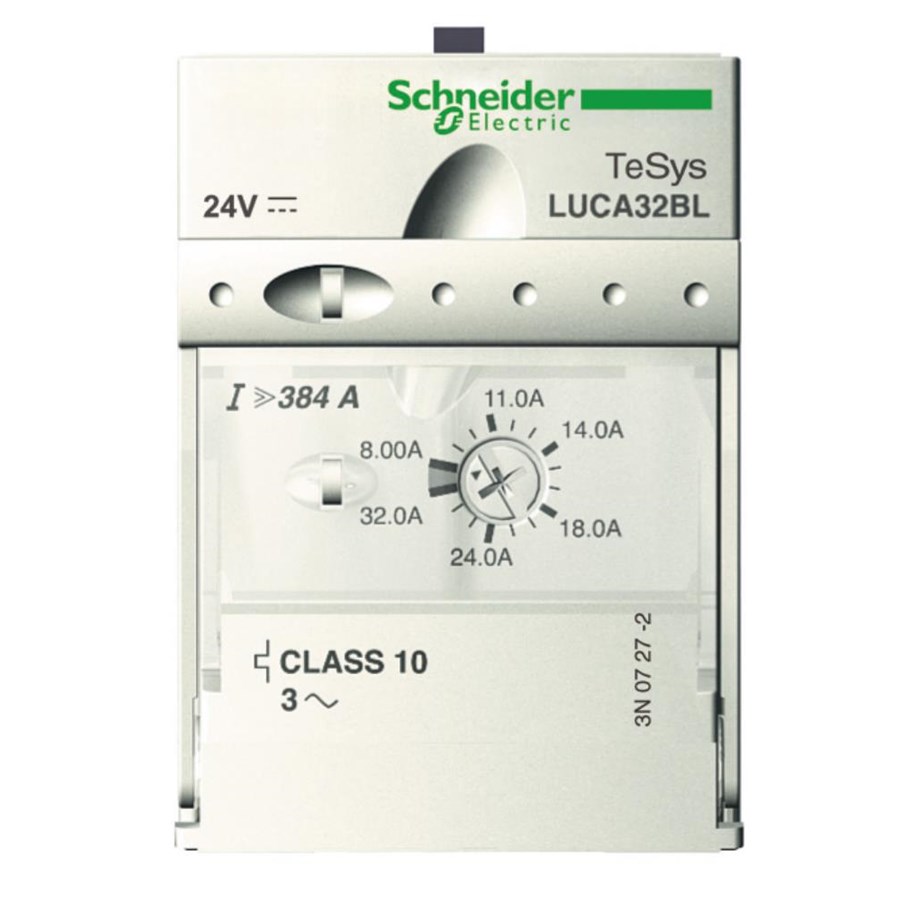

Schneider Electric Tesys u standard control unit luca - class 10 - 8...32 a - 24 v dc

TeSys U standard control unit to be inserted in a power base LUB32 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection for motors with a rated current Ir 8-32A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). Control unit to be supplied with 24V DC through the control terminal block located in the power base. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Les mer
3 997,00 kr 3 197,60 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, leveringstiden kan ikke opplyses.
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

TeSys U power module LUCA - class 10 - 8...32 A - 24 V DC Product description: TeSys U power module LUCA, 8-32A, 24 V DC. The LUCA32BL provides basic protection against overload and short circuits. The module is class 10, suitable for application category AC-43 and designed for 24V DC with rated current from 8 to 32A. The compact, modular design makes the LUCA32BL power module ideal for use in the construction of high-performance, intelligent TeSys Ultima motor starters with integrated motor control, control and switching functions combined in a single unit. TeSys U motor starters are ideal for all types of applications such as industry, infrastructure and buildings - even where there is a need to place the motor starters decentrally in machines or process plants.

Produsent
Varenummer
2952232
Model
LUCA32BL
Ean
3389110363869
