Komponenter for switchboxes og skap - Schneider Electric Timer on-delay 1s-300h 1 c/o 8a 24-240v - RE22R1AMR
Varenummer: 2952135

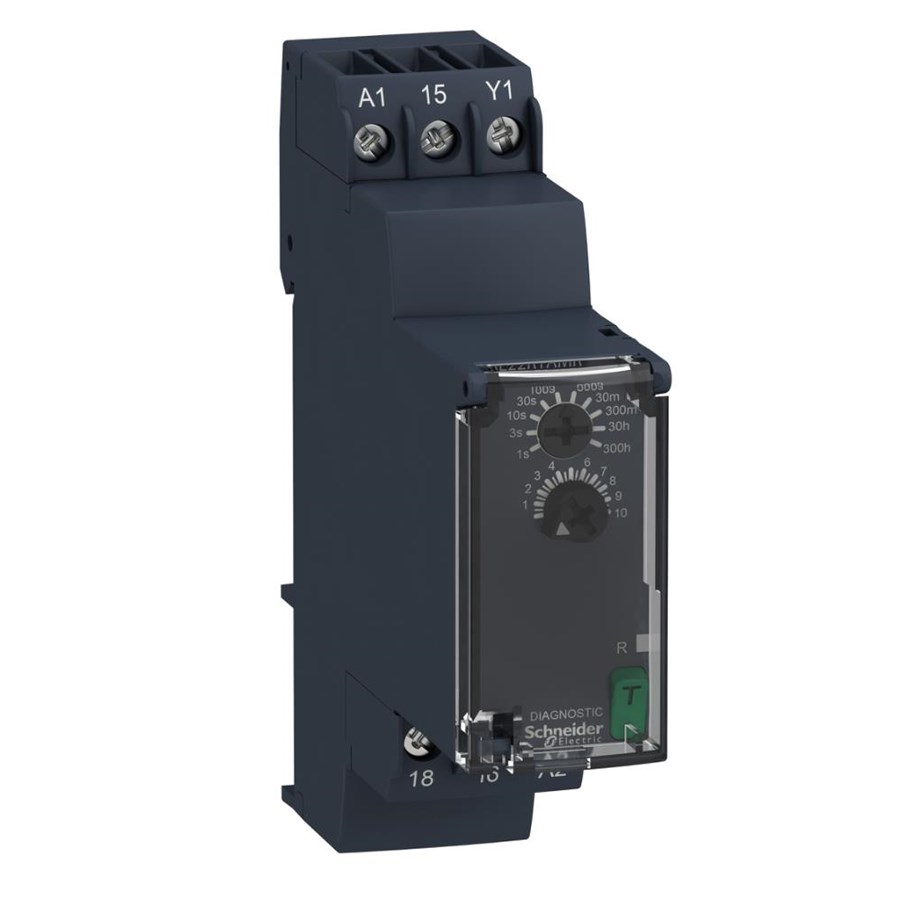

Schneider Electric Timer on-delay 1s-300h 1 c/o 8a 24-240v

The Zelio RE22 range brings to market 2 new key improvements.- The backlight LED dials for adjustment makes it easy to use in any condition, even in dusty or poorly lit enviroments. - The built-in testbutton simplifies commissioning and troubleshooting by a push of a button.RE22R1AMR is an on-delay timer activated by the powersupply.The timer is supplied by 24 -240V AC/DC which makes it usable in most applications.The time range can be selected between 10 ranges and adjusted within by the 2 dials on the front.Selectable time ranges:0-1 second0-3 seconds0-10 seconds0-30 seconds0-100 seconds0-300 seconds0-30 minutes0-300 minutes0-30 hours0-300 hoursThe LED's on the front shows the status of the contacts.The testbutton force the output when the timer is powered on.

Les mer
946,00 kr 756,80 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 3-6 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Delayed attraction timer 1s-300h 1 C/O 8A 24-240V Product description: Zelio RE22 timers add two major improvements to the market. The backlit LED screws for adjustment make it easy to see the setting in places with sparse lighting. The built-in test button facilitates testing and troubleshooting as the output can be tested with a press of the button.RE22R1AMR is a delayed attraction timer that is activated when the timer is supplied with voltage. The timer can be supplied with anything from 24 -240V AC/DC, making it suitable for most applications.The time range can be freely adjusted within one of the selected ten time ranges using the two adjustment screws on the front.RE22R1AMR has following time ranges:0-1 second0-3 seconds0-10 seconds0-30 seconds0-100 seconds0-300 seconds0-30 minutes0–300 minutes (5 hours) or more depending on model type and configuration. Luminous diode on front indicates status of relay output.Test button activates output when there is supply to timer.Technical specifications:Width (mm): 22,5Height (mm):90Time range: 1s..300tDepth (mm):79,5

Produsent
Varenummer
2952135
Model
RE22R1AMR
Ean
3606480792366
