Komponenter for switchboxes og skap - Schneider Electric Timer on-delay 1s-300h 2 c/o 24-240v - RE22R2AMR
Varenummer: 2952128

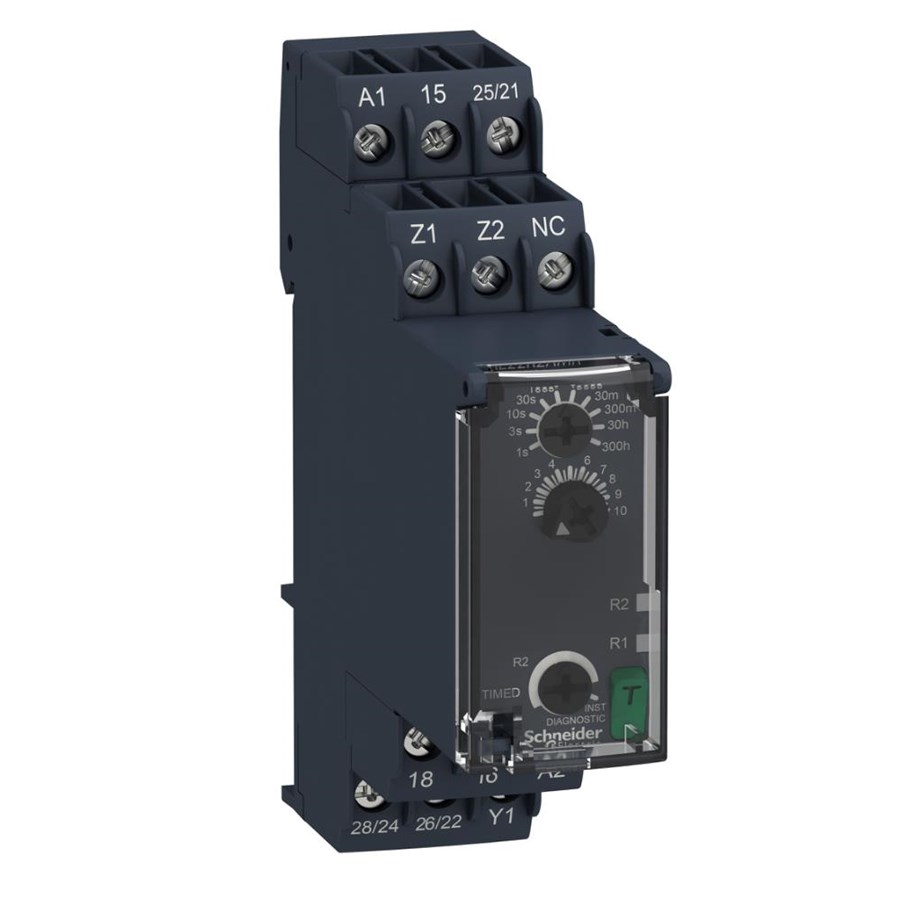

Schneider Electric Timer on-delay 1s-300h 2 c/o 24-240v

The Zelio RE22 range brings to market 2 new key improvements.- The backlight LED dials for adjustment makes it easy to use in any condition, even in dusty or poorly lit enviroments. - The built-in testbutton simplifies commissioning and troubleshooting by a push of a button.RE22R2AMR is an on-delay timer activated by the powersupply.The timer is supplied by 24 -240V AC/DC which makes it usable in most applications.The time range can be selected between 10 ranges and adjusted within by the 2 top dials on the front.The timer has 2 C/O contacts and you can choose if R2 should follow R1 or if it should be activated instantly with power up of the timer.You adjust this with the bottom dial which can be set to TIMED or INST function.Selectable time ranges:0-1 second0-3 seconds0-10 seconds0-30 seconds0-100 seconds0-300 seconds0-30 minutes0-300 minutes0-30 hours0-300 hoursThe LED's on the front shows the status of the contacts.The testbutton force the output when the t

Les mer
1 387,00 kr 1 109,60 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-6 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Delayed On Timer 1s-300h 2 C/O 24-240VProduct Description: Zelio RE22 timers add two major improvements to the market. The backlit LED screws for adjustment make it easy to see the setting in places with low lighting. The built-in test button facilitates testing and troubleshooting as the output can be tested with a push of a button.RE22R2AMR is a delayed on timer that activates when the timer is supplied with voltage. The timer can be supplied with anything from 24-240V AC/DC, making it suitable for most applications. The time range can be freely adjusted within one of ten selected time ranges using the two top adjustment screws on the front panel.The timer has two contact sets, and there is an option to choose whether R2 should activate with R1 or if it should activate with the supply of power to the timer. This is adjusted on the bottom adjustment screw that can either be in TIMED or INST function.RE22R2AMR has following time ranges:0-1 second0-3 seconds0-10 seconds0-30 seconds0-100 seconds0-300 seconds 0 -30 minutes 0 -300 minutes 0 -30 hours 03000 hours The LEDs on front indicate status of both relay outputs.The test button activates output when there's supply voltage present.Technical Specifications:Width (mm): 22,5 Height (mm):90 Time Range:1s..300t Depth(mm):79,5

Produsent
Varenummer
2952128
Model
RE22R2AMR
Ean
3606480792472
