Komponenter for switchboxes og skap - Schneider Electric Zelio control relay for 3-phase detection of phase-loss and - RM17TG20
Varenummer: 2758406

Schneider Electric Zelio control relay for 3-phase detection of phase-loss and

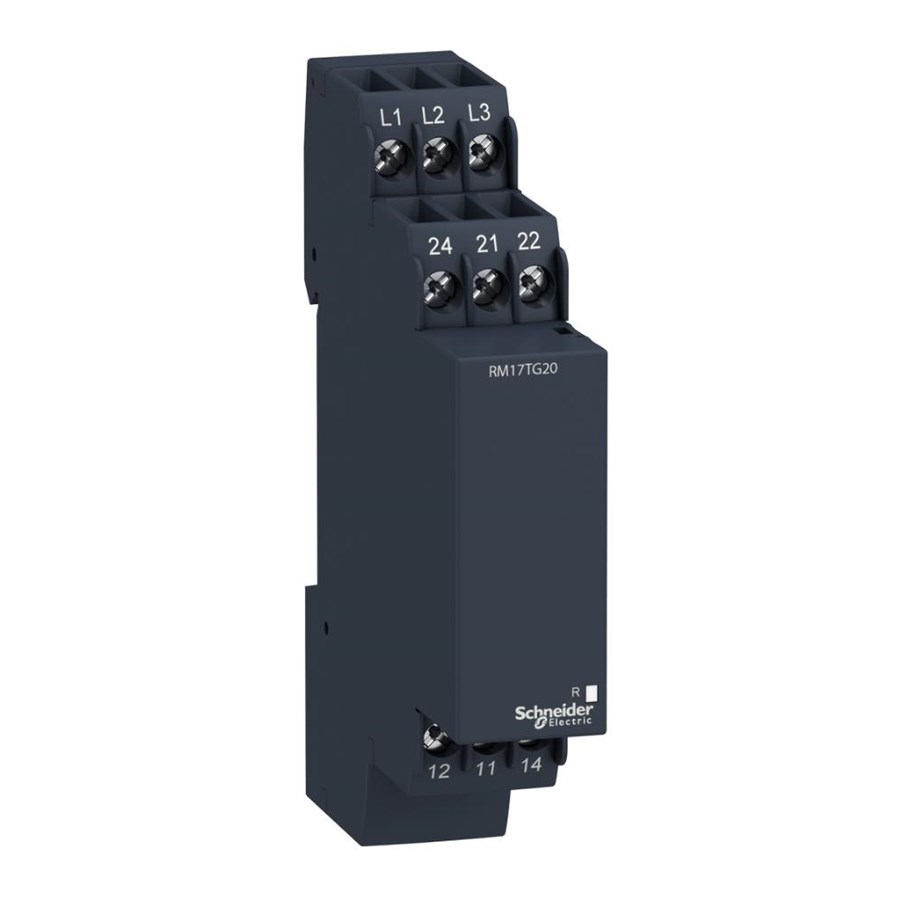

Zelio RM17 is a compact series of control relays which is easy to mount on a DIN-rail.The relays are available for either 1 phase or 3 phase applications and are able to measure the voltage, current, phase-loss, phase-sequence and asymmetry between phases.With a width of only 17,5 mm they only take up a very limited space on the DIN-rail and they also fit behind the cover of a standard panel.RM17TG20 is a simple control relay for phase-loss and phase-sequence in 3-phase applications.The 3 phases are mounted on the supply L1, L2 and L3 terminals on the top of the relay and the output contacts are located in the bottom.The output is activated instantanious when powered on if all 3 phases are present and mounted in the right order.The control relay has 2 C/O output contacts and the maximum load is 5A.RE17TG20 is self powered through the measuring terminals on the top and the supply voltage can be from 208 to 440 VACThe relay can be used with both 50Hz and 60Hz supply voltage.A yellow LED on the front of the relay indicates the relay output status.

1 296,00 kr 1 036,80 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-5 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Zelio control relay 3-phase for measuring phase break and phase sequence 2 C/O 5A 3x230-400 VAC Product description: Zelio RM17 is a series of compact control relays that can easily be mounted on a DIN rail. The series is available for either single-phase or three-phase applications and can be used to measure voltage, current, or phase break/phase sequence and asymmetry. With a width of only 17.5 mm, they take up very little space on the DIN rail, just like they fit under a cover on a distribution board. RM17TG20 is a simple phase sequence and phase break relay for three-phase applications. The three phases are mounted on the L1, L2, and L3 terminals at the top of the relay with the contact set at the bottom. The output is activated immediately upon supply if all three phases are present and installed in the correct order. The control relay has two C/O outputs that can be loaded up to 5A.RM17TG20 is powered directly through the measurement circuitry and can be used for both 50Hz and 60Hz supplies.A yellow LED on the front of the relay indicates that it has been pulled in (activated).

Produsent
Varenummer
2758406
Model
RM17TG20
Ean
3389119405072
Til produsentens hjemmeside
Produktfarge
Sort
Kroppsmateriale
Plast
DIN-skinnemontering
Ja
Antall kontakter
2
Fjerndrevet
Nei
LED-indikatorer
Ja
Sertifisering
CE GOST C-Tick UL CSA GL IP20 IP30
AC-inngangsspenning
208 - 440 V
AC-inngangsfrekvens
50 - 60 Hz
Belastningskapasitet
1250 VA
Strøm
5 A
Vekt
130 g
Pakkebredde
78 mm
Pakkedybde
97 mm
Pakkehøyde
27 mm
Pakkevekt
93 g
Driftstemperatur (T-T)
-20 - 50 °C
Samsvarssertifikat
RoHS

Egenskaper

Produktfarge
Sort
Kroppsmateriale
Plast
DIN-skinnemontering
Ja
Antall kontakter
2
Fjerndrevet
Nei
LED-indikatorer
Ja
Sertifisering
CE GOST C-Tick UL CSA GL IP20 IP30

Energihåndtering

AC-inngangsspenning
208 - 440 V
AC-inngangsfrekvens
50 - 60 Hz
Belastningskapasitet
1250 VA
Strøm
5 A

Vekt og dimensjoner

Vekt
130 g
Pakkebredde
78 mm
Pakkedybde
97 mm
Pakkehøyde
27 mm
Pakkevekt
93 g

Miljømessige forhold

Driftstemperatur (T-T)
-20 - 50 °C

Tekniske detaljer

Samsvarssertifikat
RoHS

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
