Komponenter for switchboxes og skap - Schneider Electric Zelio control relay for overcurrent detection 2..20a with current trafo 1c/o 5a 24-240vac/dc - RM17JC00MW
Varenummer: 2952145

Schneider Electric Zelio control relay for overcurrent detection 2..20a with current trafo 1c/o 5a 24-240vac/dc

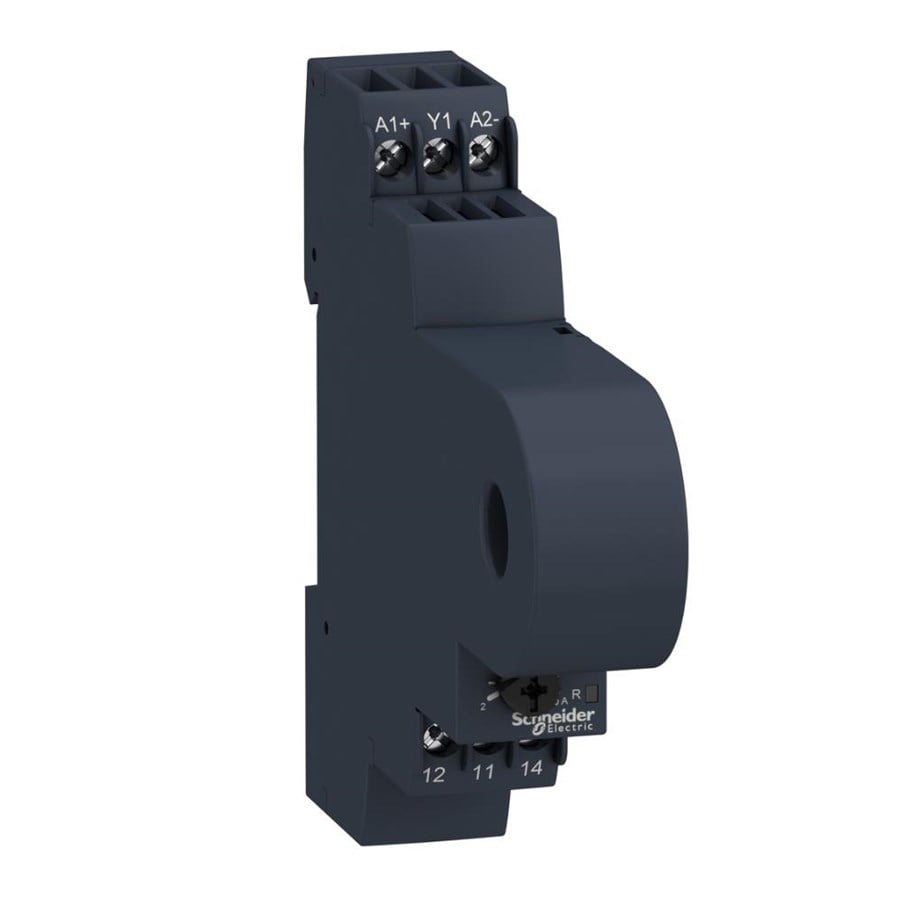

Zelio RM17 is a compact series of control relays which is easy to mount on a DIN-rail.The relays are available for either 1 phase or 3 phase applications and are able to measure the voltage, current, phase-loss, phase-sequence and asymmetry between phases.With a width of only 17,5 mm they only take up a very limited space on the DIN-rail and they also fit behind the cover of a standard panel.RM17JC00MW is a control relay for detecting overcurrent from 2..20A.The measurement is done through the integrated CT in the top of the relay.Setup is done by adjusting the potentiometer which is placed just underneith the current transformer.The setting can be between 10..100% equivalent to the 2..20A.The control relay has a 1 C/O output contact with a maximum load of 5A.Supply voltage of the relay is 24..240V AC/DCOn the front of the relay are 2 LED's for easy status.The green LED indicates that the supply is present and the yellow LED indicates the status of the relay output.

Les mer
1 920,00 kr 1 536,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-6 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Zelio control relay for measuring overcurrent with current transformer 2..20A 1 C/O 5A 24-240 VAC/DC Product description: Zelio RM17 is a series of compact control relays that can easily be mounted on a DIN rail. The series is available for either single-phase or three-phase applications and can be used to measure voltage, current or phase break/phase sequence and asymmetry. With a width of only 17.5 mm, they take up very little space on the DIN rail, just like they fit under a cover on a group panel board. RM17JC00MW is a control relay for measuring overcurrent from 2..20A. The measurement takes place through a current transformer at the top of the relay. The relay is set to the desired set point by adjusting the potentiometer located just below the current transformer. The scale on the potentiometer ranges from 10..100% corresponding to 2..20A.The control relay has one C/O output that can be loaded up to 5A.The supply voltage to the relay is24..240 VAC/DCOnthe front of therelay there are two LEDs.The green LED indicates that thereis powerontherelayandtheyellowLEDindicatesthattherelayoutputisactivated.Technical specifications: Width (mm):17,5Height(mm):90Depth(mm):97Measurement range:2...20 A

Produsent
Varenummer
2952145
Model
RM17JC00MW
Ean
3389119405034
