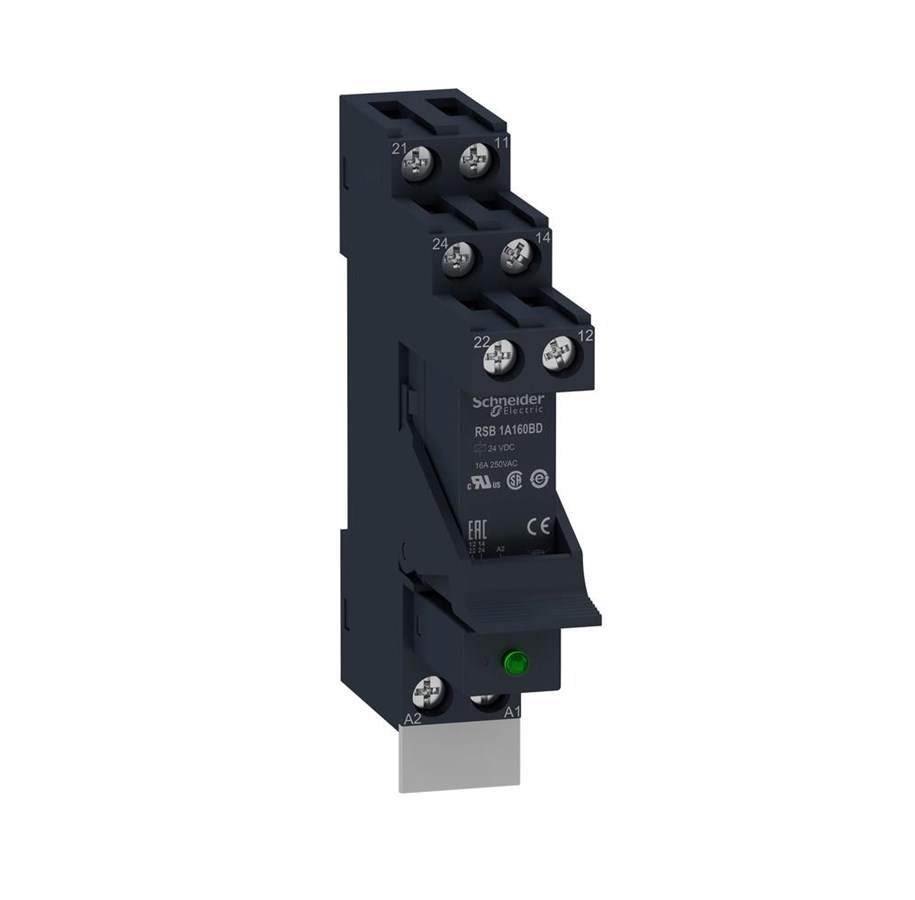

Schneider Electric Zelio rsb plug-in relay premounted in socket with diode and legend 1 c/o 16a contact and 24vdc supply

Zelio RSB plug-in relay with diode and label, 1 C/O contact at 16A and 24VDC supply. Product description: Zelio RSB is a series of compact plug-in relays with a width of only 16 mm. The relays are available with either 1 C/O at 12 or 16A or 2 C/O contacts at 8A. There is the possibility of inserting a protection module (diode, varistor or RC-led) directly into the relay socket if required. The RSZE1S35M and RSZE1S48M sockets have separate terminals for supply and contact sets, making it easy to troubleshoot the relays. RSB1A160BDPV is a complete plug-in relay mounted in an RSZE1S48M relay socket with a retaining clip that ensures that the relay remains securely in place even under vibrating conditions. A blocking diode for rectifying DC voltage is mounted in the socket, which also has an LED indicating when there is power to the relay.RSB1A160BDPV has one AgNI C/O contact with maximum load capacity of up to16A.The life span of this Relay depends on its load capacity type but it can last up to100000 cycles.The power supply for RSB1A160BDPVis24VDCandthe self-consumptionoftherelayis0.45W.Minimumswitchingcurrentonthecontactsetis100mA.It's possibletoconnectupto8relayswiththeloopbarRGZS08whichisasaccessorytothesockets.RSBserieshasULandCSAcertificationforuseintheUSAandCanada
