Komponenter for switchboxes og skap - Schneider Electric Zelio rsb plug-in relay premounted in socket with varistor and legend 1 c/o 12a contact and 230vac supply - RSB1A120P7PV
Varenummer: 2952156

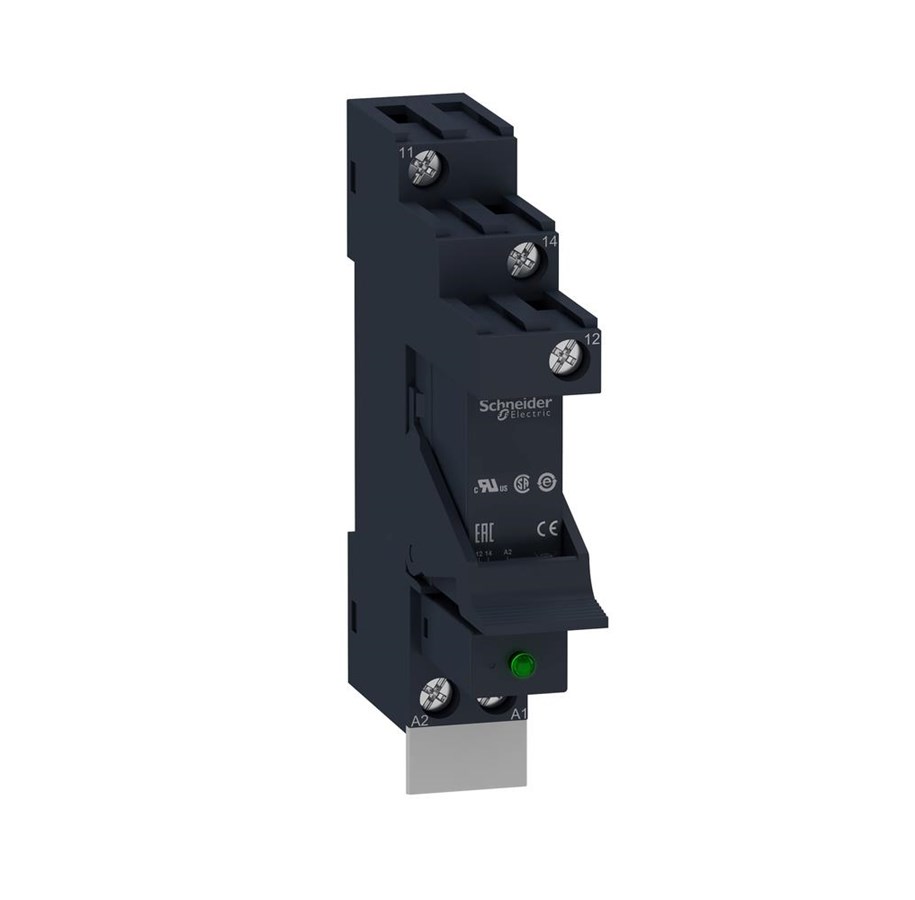

Schneider Electric Zelio rsb plug-in relay premounted in socket with varistor and legend 1 c/o 12a contact and 230vac supply

Zelio RSB are a series of compact plug-in relays with a width of only 16 mm.The relays are available with 1 C/O with either 12 and 16A or 2 C/O contacts with 8A maximum load.It is possible to insert a protection module (diode, varistor or RC-circuit) into the relay socket if needed.The sockets RSZE1S35M and RSZE1S48M has separate terminals for supply and load which simplify troubleshooting and mounting of the relays.RSB1A120P7PV is a complete plug-in relay mounted into a RSZE1S35M socket with a maintaining clamp, which secure that the relay stays in the socket even in an environment with vibrations.The socket has a varistor interserted for protection against voltage spikes generated by coils in the panel.The varistor module has also a build-in LED for indication of supply to the relay.RSB1A120P7PV has a 1 C/O AgNI contact with a maximum load of 12A.The relay has a lifetime of 100.000 cycles (depending on load).Supply voltage to the RSB1A120P7PV is 230 VAC and average coil co

Les mer
348,00 kr 278,40 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Fjernlager, 2-4 dager til forsendelse

Zelio RSB plug-in relay with varistor and label, 1 C/O contact at 12A and 230 VAC supply. Product description: Zelio RSB is a series of compact plug-in relays with a width of only 16 mm. The relays are available with either 1 C/O at 12 or 16A or 2 C/O contacts at 8A. There is the possibility of inserting a protection module (diode, varistor or RC-led) directly into the relay socket if required. The RSZE1S35M and RSZE1S48M sockets have separate terminals for supply and contact sets, making it easy to troubleshoot the relays. RSB1A120P7PV is a complete plug-in relay mounted in an RSZE1S35M relay socket with a retaining clip that ensures that the relay remains securely in place even under vibrating conditions. A varistor is mounted in the socket to protect against unwanted transients, especially when coils are switched off. The varistor also has an integrated LED that indicates when there is power to the relay.RSB1A120P7PV has one AgNI C/O contact with a maximum load capacity of12A.Therelayhasalifetimeof100000switches(dependingonloadandtype).Thepower supply for RSB1A120P7PVis230VACandtheownconsumptionoftherelayis0,75VA.The minimum switching current onthecontactsetis100mA.Itispossibletoconnectupto8relayswiththeloopbarRGZS08whichisasaccessorytothesockets.TheRSBserieshasULandCSAcertificationforuseintheUSAandCanada

Produsent
Varenummer
2952156
Model
RSB1A120P7PV
Ean
3606489562717
