Komponenter for switchboxes og skap - Schneider Electric Zelio rsb plug-in relay premounted in socket with varistor and legend 1 c/o 16a contact and 230vac supply - RSB1A160P7PV
Varenummer: 2952153

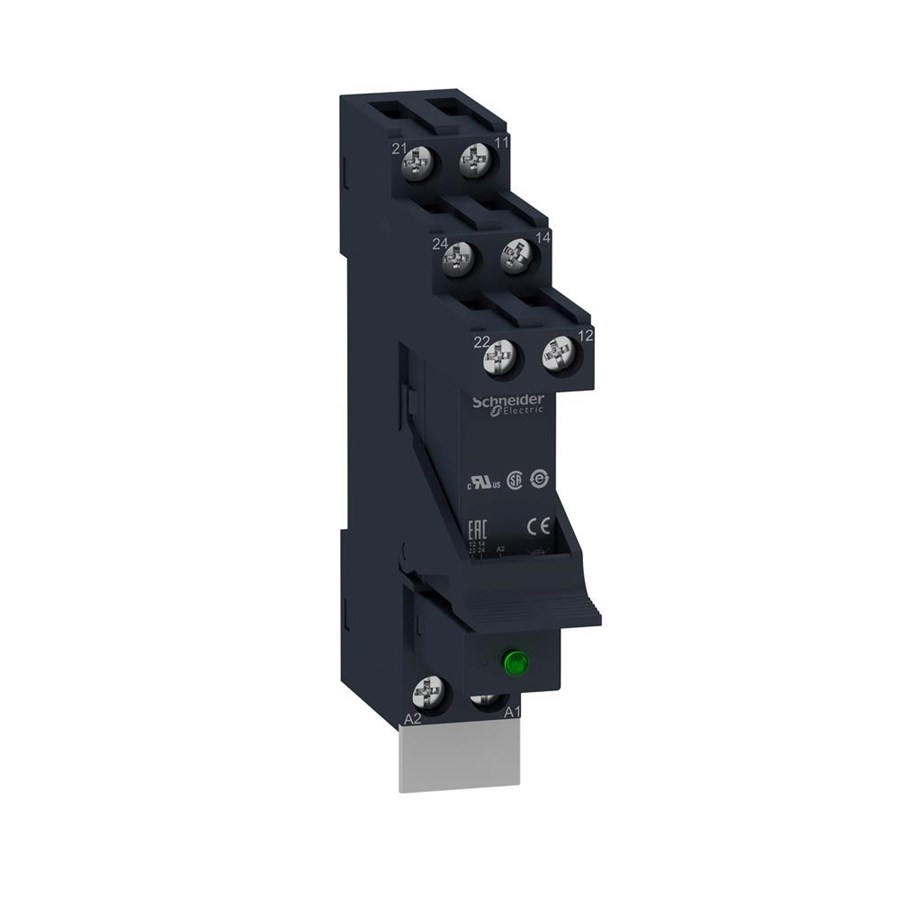

Schneider Electric Zelio rsb plug-in relay premounted in socket with varistor and legend 1 c/o 16a contact and 230vac supply

Zelio RSB are a series of compact plug-in relays with a width of only 16 mm.The relays are available with 1 C/O with either 12 and 16A or 2 C/O contacts with 8A maximum load.It is possible to insert a protection module (diode, varistor or RC-circuit) into the relay socket if needed.The sockets RSZE1S35M and RSZE1S48M has separate terminals for supply and load which simplify troubleshooting and mounting of the relays.RSB1A160P7PV is a complete plug-in relay mounted into a RSZE1S48M socket with a maintaining clamp, which secure that the relay stays in the socket even in an environment with vibrations.The socket has a varistor interserted for protection against voltage spikes generated by coils in the panel.The varistor module has also a build-in LED for indication of supply to the relay.RSB1A160P7PV has a 1 C/O AgNI contact with a maximum load of 16A.The relay has a lifetime of 100.000 cycles (depending on load).Supply voltage to the RSB1A160P7PV is 230 VAC and average coil co

Les mer
359,00 kr 287,20 kr eksl. mva
Rimeligste private frakt: 99,00 kr
Bestillingsvare, leveringstiden kan ikke opplyses.
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Zelio RSB plug-in relay with varistor and label, 1 C/O contact at 16A and 230 VAC supply. Product description: Zelio RSB is a series of compact plug-in relays with a width of only 16 mm. The relays are available with either 1 C/O at 12 or 16A or 2 C/O contacts at 8A. There is the possibility of inserting a protection module (diode, varistor or RC-led) directly into the relay socket if required. The RSZE1S35M and RSZE1S48M sockets have separate terminals for supply and contact sets, making it easy to troubleshoot the relays. RSB1A160P7PV is a complete plug-in relay mounted in an RSZE1S48M relay socket with a retaining clip that ensures that the relay remains securely in place even under vibrating conditions. A varistor is mounted in the socket to protect against unwanted transients, especially when coils are switched off. The varistor also has an integrated LED that indicates when there is power to the relay.RSB1A160P7PV has one AgNI C/O contact with a maximum load capacity of 16A.The relay has a lifespan of up to100,000 switching cycles (depending on load level and type).The supply voltage for RSB1A160P7PVis230VACandthe own consumptionoftherelayis0.75VA.The minimum switch-on current onthecontactsetis100mA.It's possibletoconnectupto8relayswiththeloopbarRGZS08whichisasaccessorytothesockets.TheRSBserieshasULandCSAcertificationforuseintheUSAandCanada

Produsent
Varenummer
2952153
Model
RSB1A160P7PV
Ean
3606489562731
