Schneider Electric Controller 8 input 2x2 output screw term

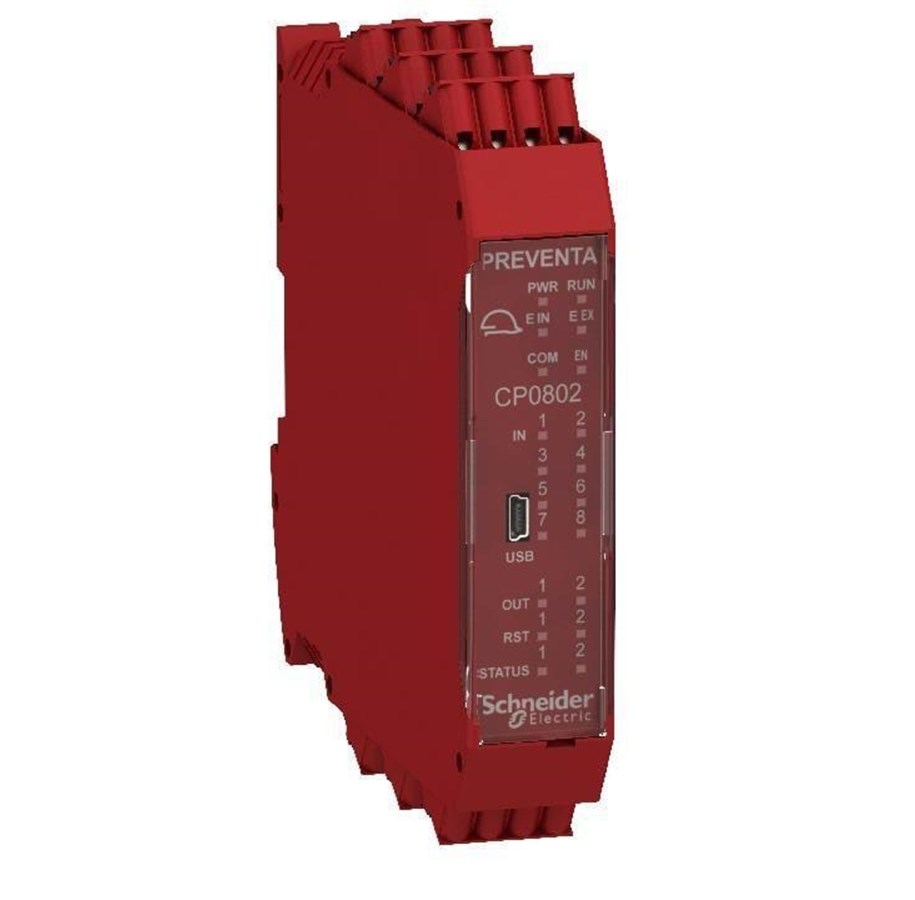

XPSMCM safety controller 8SDI, 2x2 SDO, 2DO Product description: XPSMCM Safety Controller. 8 safety inputs, 2x2 safety outputs, and 2 status outputs. Performance level e category 4. The Preventa XPSMCM safety controller is a modular safety controller that can handle up to 128 safety inputs and16x2 safety outputs. The controller is configured using the free SoSafe configurator via a standard USB cable with a mini USB connector. The security solution can achieve the Performance level e Category4 according to ISO13849-1.The security controller has on-board eight security inputs, two sets of two security outputs & two statusoutputs which means it can handle up to four security functions &two secure zones if the solution needs to be duplicated.If thecontroller is connected with expansion modules via connection loopXPSMCMCN0000SG,the solution can handle up to64security functions and16secure zones if duplicated.Preventa XPSMCMSafety Controllercan be connectedto various communication modules so thatthe entire solutioncan be monitored froma PLC or other control system.Product family: Muting module suitable for type-2and type-4 light curtains.Allows muting ofthe safetysystemso that objects on an assembly line do not triggerthe stop function.Technical specifications: MTTFd (years):100DC%:`+99SIL CL:SIL3Category:4
