Maskinsikkerhet - Schneider Electric Safety module uep cat.4 24v screw - XPSUEP14AP
Varenummer: 2949784

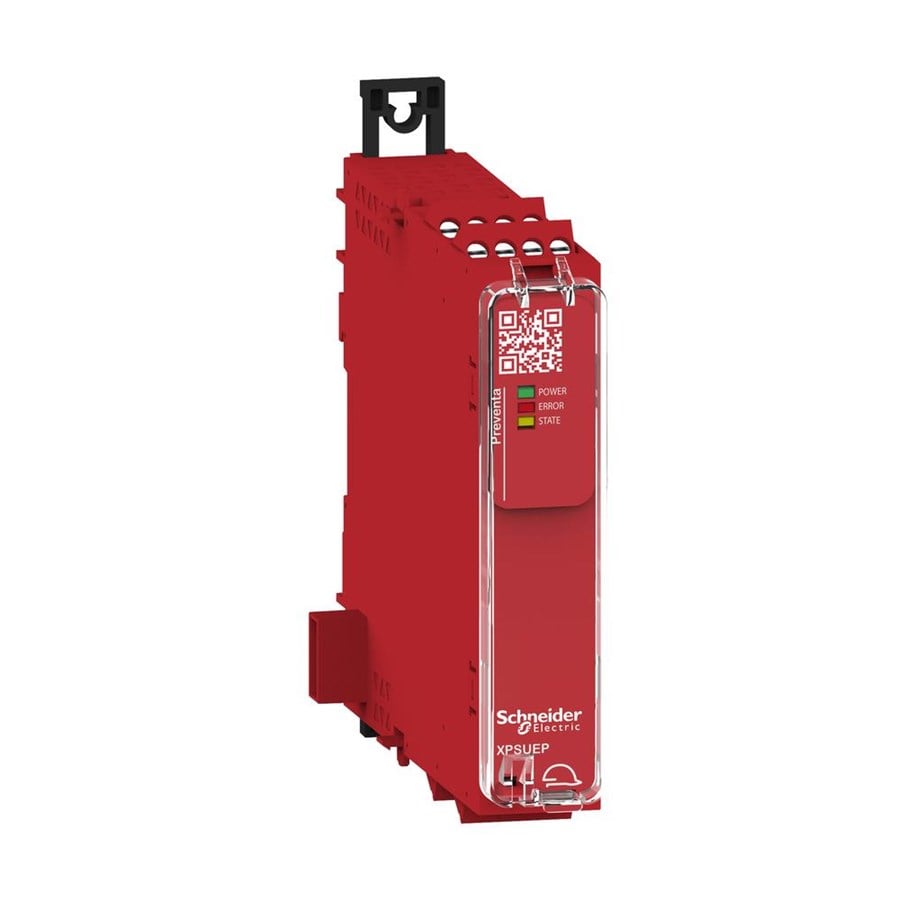

Schneider Electric Safety module uep cat.4 24v screw

The Preventa XPS Universal safety modules comes with a number of technical features.It has protection against unintended changes with the transparent cover at the front face to prevent changes of the functional settings of the selector switches.XPSU is easy to install, it has side connection for extension unit, no need for external wiring (except XPSUAB and XPSUEP).Preventa XPS Universal comes with a wide time setting area, time delay is selectable from 0.1 to 900 seconds for low and high inertia machines.Compact modules, flexible mounting: 22.5 and 45 mm width, DIN-rail or direct wall mounting (IP40 housing, IP20 terminals).Only 2 supply variants for all references: 24V AC/DC + wide range power supply 48...240V AC/DC All models are available in 2 variants, one with removable screw terminal or with removable spring terminal.Preventa XPS Universal combines the simplicity of application of hardwired safety modules with a diversity of messages.With a simple point-to-point connectio

2 783,00 kr 2 226,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse

Preventa XPS Universal Safety Relay UEP Cat.4 24V Screw Product Description: The Preventa XPS Universal safety modules come with a range of technical features. XPSU has protection against unintended changes, the transparent cover on the front prevents changes to the function settings. XPSU is easy to install, it has side connection for expansion module, which requires no extra wiring. Preventa XPS Universal comes with a wide time setting range, time delay can be selected from 0.1 to 900 seconds for low and high inertia machines.XPSU is compact and flexible.Mounting: 22.5 and 45 mm width, DIN rail or direct wall mounting (IP40 housing, IP20 terminals).Only two supply variants for all references: 24V AC / DC supply voltage or 48 ...240V AC / DC.All models are available in two variants: either with removable screw terminals or with removable spring terminals.Preventa XPS Universal makes it easy to use hard-wired safety modules.Via a single wire connection,XPSU intelligent solid state output is connected to a digital input on the PLC,and in this wayPreventa XPS Universal safety module can send more than forty different status messages to the PLC (depending on type)!XPSUEP safety module is used to expand the number of safety outputs on base modules.They are available as additions to Preventa XPS base modules (emergency stop,end stop,two-hand control etc.).WhenX PSUATis base module ,its configuration is usedto select whetherX PSUEPsoutputs followX PSUATs instantaneousor timedelayed outputs.Three LEDs onthe front provide information aboutthe statusofX PSUEP .

Produsent
Varenummer
2949784
Model
XPSUEP14AP
Ean
3606489601775
Til produsentens hjemmeside
