Nettverksadapter - Foundry Networks Broadcom NetXtreme E-Series P2100G - BCM957508-P2100G
Varenummer: 3139505
BCM957508-P2100G

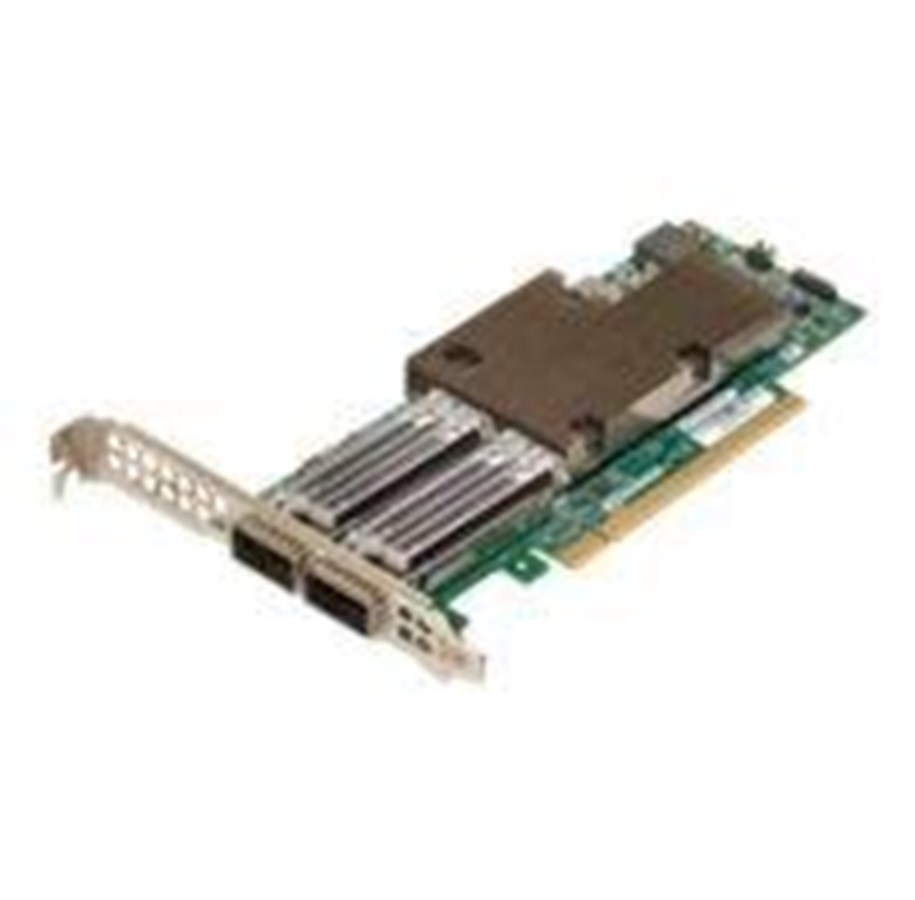

Foundry Networks Broadcom NetXtreme E-Series P2100G

Nettverksadapter, PCIe 4.0 x16 lav profil, 100 Gigabit QSFP56 x 2

9 049,00 kr 7 239,20 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse

Based on Broadcom's scalable 10/25/50/100/200G Ethernet controller architecture, the NetXtreme-E Series P2100G 2x100G PCIe NIC is designed to build highly scalable, feature-rich networking solutions in servers for enterprise and cloud-scale networking and storage applications, including high-performance computing, telco, machine learning, storage disaggregation and data analytics.The P2100G 2x100G PCIe NIC builds upon the success of the widely deployed NetXtreme E-Series architecture by combining a high-bandwidth Ethernet controller with a unique set of highly optimized hardware acceleration engines to enhance network performance and improve server efficiency.Driven by the growing need for higher server bandwidth and storage capacity to support emerging applications, enterprises, telcos and cloud providers are modernizing their data centers by adopting networking technologies, such as server virtualization and NVMe-oF. The resulting expansion in data volumes increases server-to-server traffic and CPU loads for networking tasks.

Produsent
Varenummer
3139505
Model
BCM957508-P2100G
Ean
0650861000291
Til produsentens hjemmeside
Produktbeskrivelse
Broadcom NetXtreme E-Series P2100G - nettverksadapter - PCIe 4.0 x16 - 100 Gigabit QSFP56 x 2
Enhetstype
Nettverksadapter
Produktformfaktor
Plugginnkort - lav profil
Grensesnitts(databuss)-type
PCI Express 4.0 x16
PCI-spesifikasjonsrevidering
PCIe 4.0
Porter
100 Gigabit QSFP56 x 2
Vekt
167 g
Datakjedeprotokoll
100GbE
Prosessor
Broadcom BCM57508
Fabrikantgaranti
3 års garanti

Generelt

Enhetstype
Nettverksadapter
Produktformfaktor
Plugginnkort - lav profil
Grensesnitts(databuss)-type
PCI Express 4.0 x16
PCI-spesifikasjonsrevidering
PCIe 4.0

Nettverkstilknytning

Porter
100 Gigabit QSFP56 x 2
Overføringsteknologi
Kablet
Datakjedeprotokoll
100 Gigabit Ethernet
Statusindikatorer
Lenke/aktivitet
Egenskaper
Støtte for DCBX, PXE-støtte, LSO, LRO, RSS, UEFI-støtte, SR-IOV, DCB, TSO, MSI-X, GRE, TSS, iSCSI boot, TCP/IP kontrollsumavlastning, UDP/IP kontrollsumavlastning, RoCE, PFC, NC-SI, VXLAN, NVGRE, FLR, MSI, støtte for Jumbo Frames (inntil 9000 byte), NPAR, Mware NetQueue and Microsoft VMQ, MCTP over SMBus, TruFlow, Programavbruddssammenføring, ETS, QCN, Multi-Host-teknologi, vSwitch Acceleration, tunnellbevisste tilstandsløse avlastinger, SMBus 2.0, NetQueue

Prosessor / Minne

Prosessor
Broadcom BCM57508

Ekspansjon / Tilkoplinger

Grensesnitt
2 x 100Gb Ethernet - QSFP56

Diverse

Tilleggsutstyr inkludert
Lavprofilsbrakett, standardbøyle
Tilpassede standarder
MSA SFF-8402

Strømforsyning

Strømforbruk ved drift
19.3 watt

Mål og vekt

Vekt
167 g
