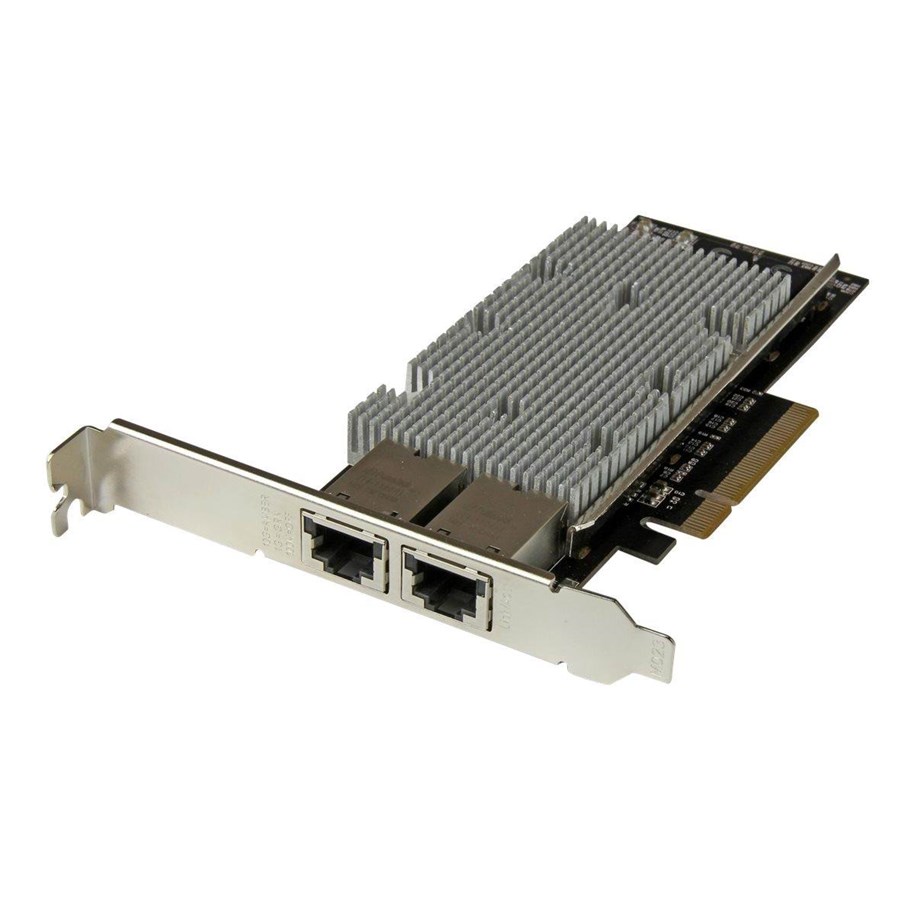

StarTech.com 2-Port PCI Express 10GBase-T Ethernet Network Card
10Gbase-t Ethernet Card, 100/1000/10000 Mbps LAN Card (ST20000SPEXI), Nettverksadapter, PCIe 2.0 x8 lav profil, 10Gb Ethernet x 2, svart, for P/N: BNDTB10GI, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142
9 005,00 kr
7 204,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 5-7 dager til forsendelse
Add two 10 Gigabit Ethernet ports (10Gbps) to a client, server or workstation through one PCI Express slot. Now, you can add 10 GbE networking, while minimizing your deployment costs. This 10Gbase-T network card (NIC) lets you add two RJ45 ports through a single PCI Express slot, to deliver reliable high-speed network connections to your workstations and servers without draining your budget.
Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. It's a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, and Auto-MDIX.
This 2-port PCI Express 10GBase-T network card features the Intel X540 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The X540 chipset provides many advanced features including Intel Virtualization Technology for connectivity and PXE network boot support.
Compliant with IEEE 802.3/u/ab standards, the network card delivers a dependable way to upgrade or replace your existing network ports with dual 100/1000/10G compatible RJ45 ports, providing throughput capability of up 10Gbps in each direction (20Gbps total). It connects through a single, four-lane (x8 or higher) PCI Express slot.
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis, and includes a low-profile/half-height installation bracket that you can use as needed.
Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. It's a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, and Auto-MDIX.
This 2-port PCI Express 10GBase-T network card features the Intel X540 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The X540 chipset provides many advanced features including Intel Virtualization Technology for connectivity and PXE network boot support.
Compliant with IEEE 802.3/u/ab standards, the network card delivers a dependable way to upgrade or replace your existing network ports with dual 100/1000/10G compatible RJ45 ports, providing throughput capability of up 10Gbps in each direction (20Gbps total). It connects through a single, four-lane (x8 or higher) PCI Express slot.
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis, and includes a low-profile/half-height installation bracket that you can use as needed.
Produsent
Varenummer
2522910
Model
ST20000SPEXI
Ean
0065030860598
Til produsentens hjemmeside
Produktbeskrivelse
StarTech.com 2-Port 10Gb PCIe NIC with Native Link Aggregation - 10Gbase-t Ethernet Card - 100/1000/10000 Mbps LAN Card (ST20000SPEXI) - nettverksadapter - PCIe 2.0 x8 - 10Gb Ethernet x 2
Enhetstype
Nettverksadapter
Produktformfaktor
Plugginnkort - lav profil
Grensesnitts(databuss)-type
PCI Express 2.0 x8
PCI-spesifikasjonsrevidering
PCIe 2.0
Porter
10Gb Ethernet x 2
Dimensjoner (BxDxH)
2 cm x 16.3 cm x 12 cm
Vekt
160 g
Kabelføringstype
Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T
Datakjedeprotokoll
100Mb LAN, 1GbE, 10GbE
Dataoverføringshastighet
10 Gbps
Ytelse
Videresendingsytelse (full dupleks): 20 Gbps
Kapasitet
Jumbo rammestørrelse: 15000
Prosessor
Intel x540
Tilpassede standarder
IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3an, IEEE 802.3az
Farge
Svart
Systemkrav
Microsoft Windows Server 2008 R2 x64 Edition, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, VMware ESXi 5.5, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2016 (64-bit), Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 (64-bit)
Fabrikantgaranti
2 års garanti
Designet for
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, ET10GSFP, TB31PCIEX16
Generelt
Enhetstype
Nettverksadapter
Produktformfaktor
Plugginnkort - lav profil
Grensesnitts(databuss)-type
PCI Express 2.0 x8
PCI-spesifikasjonsrevidering
PCIe 2.0
Nettverkstilknytning
Porter
10Gb Ethernet x 2
Overføringsteknologi
Kablet
Kabelføringstype
Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T
Datakjedeprotokoll
Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Dataoverføringshastighet
10 Gbps
Ytelse
Videresendingsytelse (full dupleks): 20 Gbps
Kapasitet
Jumbo rammestørrelse: 15000
Statusindikatorer
Port status, lenke/aktivitet
Egenskaper
Full dupleks-funksjon, auto-uplink (auto MDI/MDI-X), Jumbo Frames-støtte, LACP
Tilpassede standarder
IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3an, IEEE 802.3az
Prosessor / Minne
Prosessor
Intel x540
Ekspansjon / Tilkoplinger
Grensesnitt
2 x 10GBase-T - RJ-45
Diverse
Tilleggsutstyr inkludert
Lavprofilsbrakett
Tilpassede standarder
FCC, RoHS
Farge
Svart
Programvare / Systemkrav
OS påkrevd
Microsoft Windows Server 2008 R2 x64 Edition, VMware ESXi 5.1, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition, VMware ESXi 5.5, Microsoft Windows 7 / 8 / 8.1 / 10 (64 bits), Microsoft Windows Server 2016 (64-bit), Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019 (64-bit)
Mål og vekt
Bredde
2 cm
Dybde
16.3 cm
Høyde
12 cm
Vekt
160 g
Miljøparametere
Min. driftstemperatur
5 °C
Maks. Driftstemperatur
50 °C
Driftsfuktighet
20 - 80%
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
