Nettverksadapter - StarTech.com 8-Port PCI Express Serial Card - Low Profile - RS-232 - serial adapter - PEX8S1050LP
Varenummer: 2809450
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP
PEX8S1050LP

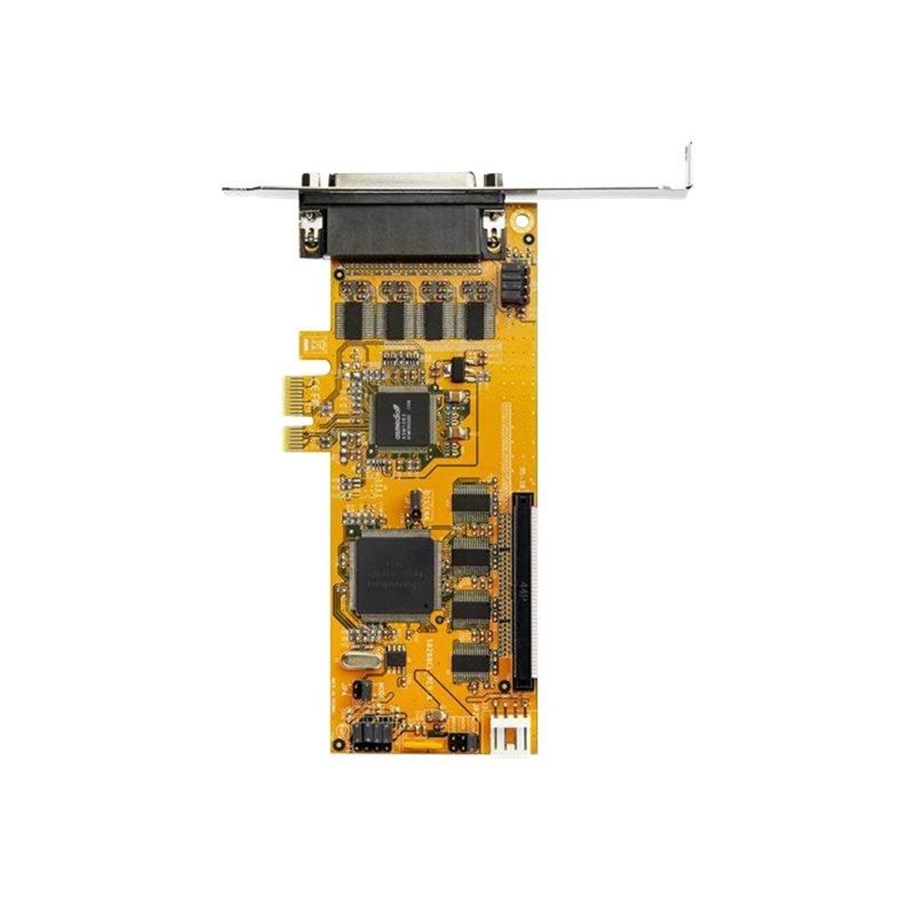

StarTech.com 8-Port PCI Express Serial Card - Low Profile - RS-232 - serial adapter

Full Profile Bracket Incl, Seriell adapter, PCIe lav profil, RS-232 x 8, gul, TAA-samsvar

3 183,00 kr 2 546,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.

Produsent
Varenummer
2809450
Model
PEX8S1050LP
Ean
0065030886574
Til produsentens hjemmeside
Produktbeskrivelse
StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Low Profile Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows/Linux - Full Profile Bracket Incl - seriell adapter - PCIe - RS-232 x 8 - TAA-samsvar
Enhetstype
Seriell adapter
Produktformfaktor
Plugginnkort - lav profil
Grensesnitts(databuss)-type
PCI Express
Porter
RS-232 x 8
Dimensjoner (BxDxH)
6.7 cm x 14.3 cm x 2 cm
Vekt
120 g
Kabelføringstype
Seriell RS-232
Prosessor
ASMedia ASM1083
Farge
Gul
Systemkrav
Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows XP / 7 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
TAA-samsvar
Ja
Fabrikantgaranti
Begrenset livstidsgaranti

Generelt

Enhetstype
Seriell adapter
Produktformfaktor
Plugginnkort - lav profil
Grensesnitts(databuss)-type
PCI Express

Nettverkstilknytning

Porter
RS-232 x 8
Overføringsteknologi
Kablet
Kabelføringstype
Seriell RS-232
Egenskaper
16550 UART-støtte, 256-byte FIFO

Prosessor / Minne

Prosessor
ASMedia ASM1083

Ekspansjon / Tilkoplinger

Grensesnitt
8 x RS-232 - 9-pin D-Sub (DB-9)

Diverse

Tilleggsutstyr inkludert
Brakett med full høyde
Tilpassede standarder
FCC, RoHS, WEEE, REACH
Farge
Gul
TAA-samsvar
Ja

Programvare / Systemkrav

OS påkrevd
Microsoft Windows 98 Second Edition / Windows 2000, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows XP / 7 / 8.1 / 10, Microsoft Windows Server 2016, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019

Mål og vekt

Bredde
6.7 cm
Dybde
14.3 cm
Høyde
2 cm
Vekt
120 g

Størrelser og vekt (forsendelse)

Fraktbredde
29 cm
Fraktdybde
19.2 cm
Frakthøyde
7 cm
Fraktvekt
700 g

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
