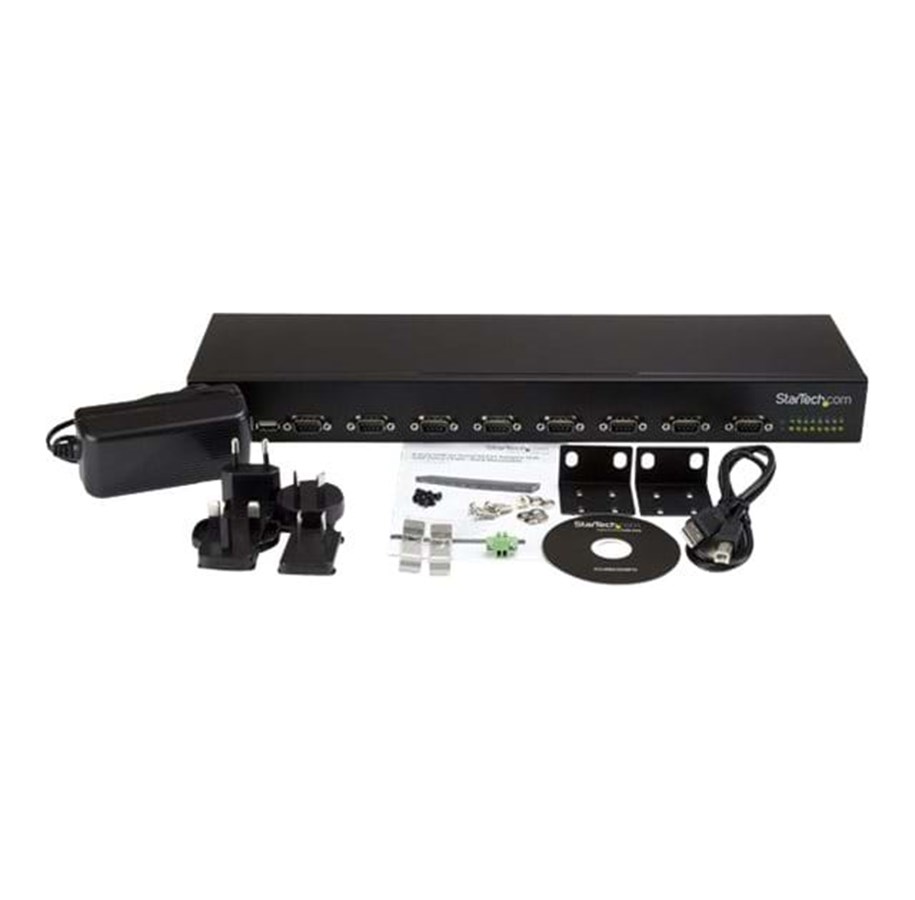

StarTech.com 8 Port USB to Serial Adapter Hub - USB to RS232 Daisy Chain

8 Port, COM Port Retention, Rack Mount and Daisy Chainable, FTDI USB to RS232 Hub (ICUSB23208FD), Seriell adapter, USB 2.0, RS-232 x 8, svart

4 590,00 kr 3 672,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse

Convert a single USB port into eight serial ports, and connect multiple hubs together for a scalable solution. This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.

This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.

Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.

The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.

The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.

With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.

Produsent
Varenummer
2571935
Model
ICUSB23208FD
Ean
0065030866705
Til produsentens hjemmeside
Produktbeskrivelse
StarTech.com USB to Serial Hub - 8 Port - COM Port Retention - Rack Mount and Daisy Chainable - FTDI USB to RS232 Hub (ICUSB23208FD) - seriell adapter - USB 2.0 - RS-232 x 8
Enhetstype
Seriell adapter
Produktformfaktor
Ekstern
Grensesnitts(databuss)-type
USB 2.0
Porter
RS-232 x 8
Dimensjoner (BxDxH)
12 cm x 43 cm x 4.5 cm
Vekt
1.4 kg
Datakjedeprotokoll
RS-232
Farge
Svart
Strømforsyning
AC 120/230 V
Systemkrav
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Linux 2.4.x eller nyere, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Kun Linux LTS-versjoner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
Fabrikantgaranti
2 års garanti

Generelt

Enhetstype
Seriell adapter
Produktformfaktor
Ekstern
Grensesnitts(databuss)-type
USB 2.0

Nettverkstilknytning

Porter
RS-232 x 8
Overføringsteknologi
Kablet
Datakjedeprotokoll
RS-232
Statusindikatorer
Status

Ekspansjon / Tilkoplinger

Grensesnitt
8 x RS-232 - 9-pins D-Sub (DB-9) (hann)
1 x USB - 4-pins USB-type B

Diverse

Tilleggsutstyr inkludert
2 rackmonteringsbøyler, 4 x mutre, skruer for rackmontering, monteringsskruer for DIN-skinne, 2 DIN-skinne monteringsbraketter, 4 pakninger, plugg for terminalblokk, strømadapter
Medfølgende kabler
1 x USB-kabel (ekstern) - 90 cm
Tilpassede standarder
FCC, RoHS
Farge
Svart

Strømforsyning

Påkrevd nettspenning
AC 120/230 V
Strømforbruk ved drift
36 watt

Programvare / Systemkrav

Inkludert programvare
Drivers & Utilities
OS påkrevd
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Linux 2.4.x eller nyere, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Kun Linux LTS-versjoner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0

Mål og vekt

Bredde
12 cm
Dybde
43 cm
Høyde
4.5 cm
Vekt
1.4 kg
