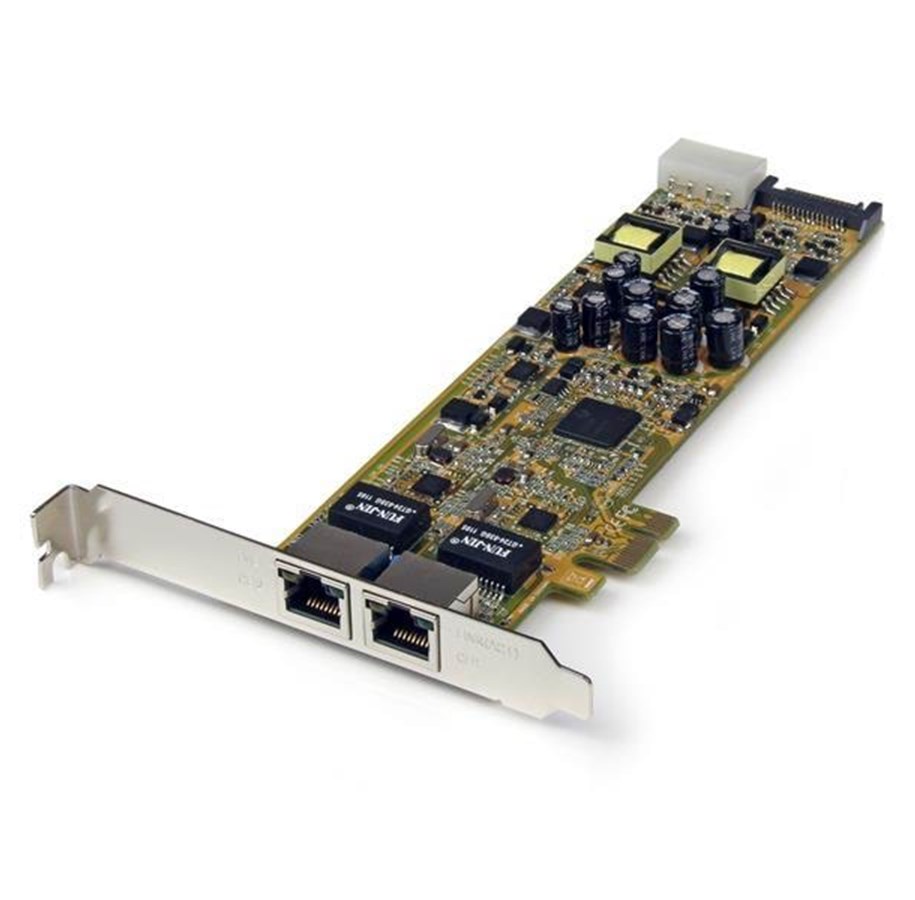

StarTech.com ST2000PEXPSE Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter
2 Port PCIe NIC 10/100/100 Server Adapter with PoE PSE (ST2000PEXPSE), Nettverksadapter, PCIe, Gigabit Ethernet x 2
2 170,00 kr
1 736,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-5 dager til forsendelse
Add two Power-over-Ethernet Gigabit Ports to a PCI Express-enabled Computer. The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.
This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.
Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).
This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.
Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).
Produsent
Varenummer
2401811
Model
ST2000PEXPSE
Ean
0065030849128
Til produsentens hjemmeside
Produktbeskrivelse
StarTech.com Dual Port PCI Express Gigabit Ethernet Network Card Adapter - 2 Port PCIe NIC 10/100/100 Server Adapter with PoE PSE (ST2000PEXPSE) - nettverksadapter - PCIe - Gigabit Ethernet x 2
Enhetstype
Nettverksadapter
Produktformfaktor
Plugginnkort
Grensesnitts(databuss)-type
PCI Express x1
Porter
Gigabit Ethernet x 2
Dimensjoner (BxDxH)
6.8 cm x 19.5 cm x 1.9 cm
Vekt
150 g
Kabelføringstype
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Datakjedeprotokoll
10Mb LAN, 100Mb LAN, 1GbE
Dataoverføringshastighet
1 Gbps
Prosessor
Realtek Semiconductor RTL8111E
Tilpassede standarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at
Systemkrav
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.6 - 10.9, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Fabrikantgaranti
2 års garanti
Generelt
Enhetstype
Nettverksadapter
Produktformfaktor
Plugginnkort
Grensesnitts(databuss)-type
PCI Express x1
Nettverkstilknytning
Porter
Gigabit Ethernet x 2
Overføringsteknologi
Kablet
Kabelføringstype
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Datakjedeprotokoll
Ethernet, Fast Ethernet, Gigabit Ethernet
Dataoverføringshastighet
1 Gbps
Statusindikatorer
PoE, lenke/aktivitet
Egenskaper
Full dupleks-funksjon, PoE, auto-uplink (auto MDI/MDI-X)
Tilpassede standarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at
Prosessor / Minne
Prosessor
Realtek Semiconductor RTL8111E
Ekspansjon / Tilkoplinger
Grensesnitt
2 x 1000Base-T (PoE) - RJ-45
Kompatible spor
1 x PCI Express x1
Diverse
Tilleggsutstyr inkludert
Lavprofilsbrakett
Tilpassede standarder
FCC, RoHS
Programvare / Systemkrav
Inkludert programvare
Drivers & Utilities
OS påkrevd
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple MacOS X 10.6 - 10.9, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Linux 2.4.x to 4.11.x LTS versions only, Microsoft Windows Server 2019
Mål og vekt
Bredde
6.8 cm
Dybde
19.5 cm
Høyde
1.9 cm
Vekt
150 g
