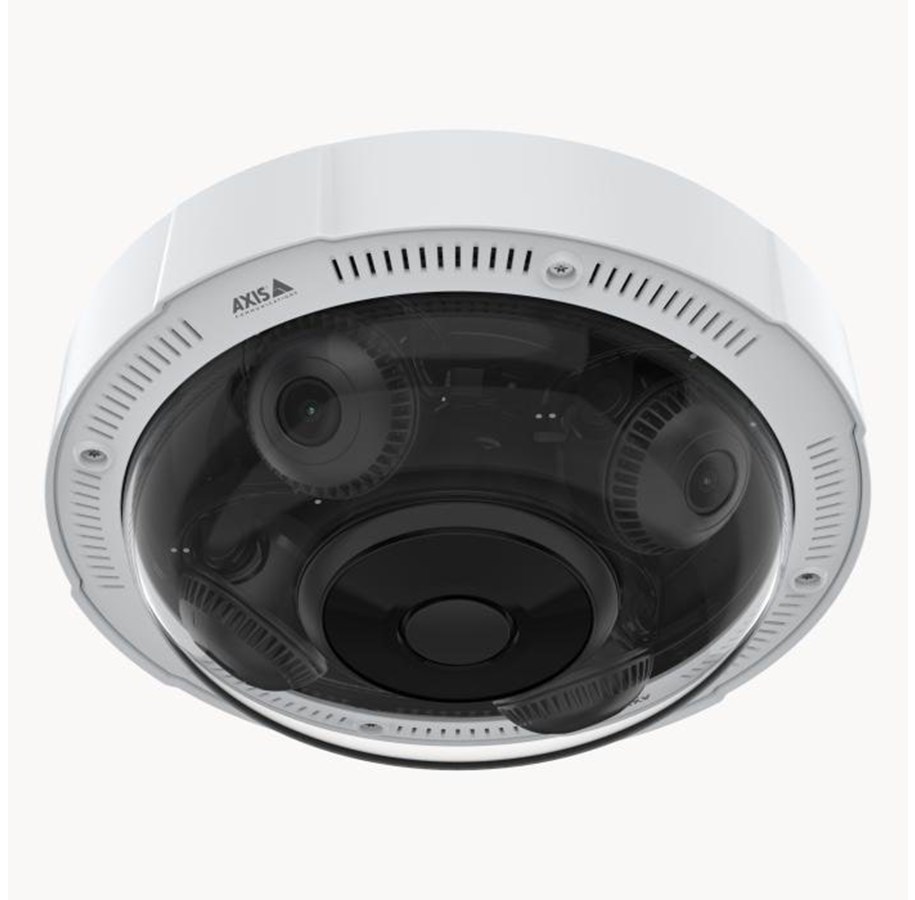

Axis P3737-PLE Panoramic AI-powered 4x5 MP multidirectional Camera
Axis P3737-PLE Kuppel IP-sikkerhetskamera Inne & Ute 2688 x 1944 piksler Tak
23 661,00 kr
18 928,80 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 8-10 dager til forsendelse
UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025
Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.
Ideal for wide-area surveillance, this multidirectional camera delivers excellent overviews and detailed coverage. With highly efficient power consumption, it ensures sustainable surveillance with lower operating costs.
Wide area surveillance with high-quality overview - 24/7
AXIS P3737-PLE offers four channels with 5 MP per channel at 20 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.
Brilliant Design
This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.
Cost-efficient and secure
With four camera heads in one camera, AXIS P3737-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Deep learning analytics
Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Wide area surveillance with high-quality overview - 24/7
AXIS P3737-PLE offers four channels with 5 MP per channel at 20 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.
Brilliant Design
This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.
Cost-efficient and secure
With four camera heads in one camera, AXIS P3737-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Deep learning analytics
Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Produsent
Varenummer
3268033
Model
02634-001
Ean
7331021080638
Til produsentens hjemmeside
Produktbeskrivelse
AXIS P37 Series P3737-PLE - panoramisk nettverkskamera - kuppel - TAA-samsvar
Enhetstype
Panoramisk nettverkskamera - multi-sensor - kuppel - utendørs - manipulasjonssikker / værbestandig
Lyd
Ja: toveis lyd via valgfritt lyd- og I/O-grensesnitt, høyttalerparing
Dimensjoner (BxDxH)
25.5 cm x 25.5 cm x 9.2 cm
Vekt
2 kg
Farge
Hvit, NCS S 1002-B
Konnektivitetsteknologi
Kablet
Kamera
Farge - Dag og natt
Optisk zoom
2.5 x
Maks. oppløsning
2592 x 1944
Bildehastighet (maks.)
30 bilder pr. sekund
Bevegelsesdetektering
Ja
Type bildebrikke
PS RGB CMOS - 4 x 1/2.7" - 4 x 5 MP
Minimumsbelysning
0.19 lux - farge - F1.9 - 50 IRE
0 lux - S/H - F1.9 - 50 IRE
0 lux - IR
0 lux - S/H - F1.9 - 50 IRE
0 lux - IR
Fokallengdekontroll
Variabel fokallengde
Min/Maks brennvidde (zoomområde)
3.2 mm - 8.1 mm
Fokusjustering
(minimumsavstand 0.5 m)
Linseirisblender
F/1.9-3.2 - fast irisblender
Panoreringsområde (grader)
Fra -90 til +90
Tippeområde (grader)
25 to 95
Grensesnitt
Ethernet 10Base-T/100Base-TX/1000Base-T
Spenning
PoE Plus Class 4
Egenskaper
IR-korrigert linse, fjernzoom, eksternt fokus, infrarødt kuttefilter, prosesseringsenhet for dyp læring (DLPU), Zipstream-teknologi, Variabel bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), lav latensmodus, videostrømningsindikator, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction-teknologi, dag/natt-terskel, tonekartlegging, tønneforvrengningskorreksjon, tekstoverlegg, bildeoverlegg, dynamisk tekst, Privacy Mask Function, polygon-personvernmaske, Lightfinder-teknologi, OptimizedIR, ONVIF (Profile G)-støtte, støtte for ONVIF (Profil M), støtte for ONVIF (Profile S), støtte for ONVIF (Profile T), Pixel Counter Support, scene metadata, undertegnet fastvare, råkrafts forsinkelsesvern, sammendragsverifisering, passordbeskyttelse, Axis Edge Vault, Axis enhets-ID, sikker nøkkellager, signert video, sikker oppstart, IP-adressesfiltrering
TAA-samsvar
Ja
Fabrikantgaranti
5 års garanti
Miljøparametere (operativ)
-30 °C - 50 °C; 10 - 100% RH (condensing) relativ fuktighet
Generelt
Enhetstype
Panoramisk nettverkskamera
Lydstøtte
Ja: toveis lyd via valgfritt lyd- og I/O-grensesnitt, høyttalerparing
Formfaktor
Kuppel
Konnektivitetsteknologi
Kablet
Bredde
25.5 cm
Dybde
25.5 cm
Høyde
9.2 cm
Vekt
2 kg
Lokalisering
Argentina, Australia, Brasil, Kina, Europa, Japan, Korea, Storbritannia, USA
Kamera
Type
Farge - Dag og natt - multi-sensor - utendørs - manipulasjonssikker / værbestandig
Digitalt Videoformat
H.264B, H.264M, H.264H, H.265, MJPEG, MPEG-4 Part 10, AVC, MPEG-H Part 2, HEVC
Maks digitalvideooppløsning
2592 x 1944
Bevegelsesdetektering
Ja
Eksponeringsområde
1/5 sek - 1/50000 sek
Minimumsbelysning
0.19 lux - farge - F1.9 - 50 IRE
0 lux - S/H - F1.9 - 50 IRE
0 lux - IR
0 lux - S/H - F1.9 - 50 IRE
0 lux - IR
Infrarøde LED-er
Ja
Infrarød avstand
15 m
Videoopptak
2592 x 1944 @ 20 fps
2560 x 1440 @ 25/30 fps
2560 x 1440 @ 25/30 fps
RAM
4 GB
Flash-minne
8 GB
Egenskaper
IR-korrigert linse, fjernzoom, eksternt fokus, infrarødt kuttefilter, prosesseringsenhet for dyp læring (DLPU), Zipstream-teknologi, Variabel bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), lav latensmodus, videostrømningsindikator, Forensic WDR, 2D Noise Reduction Technology, 3D Noise Reduction-teknologi, dag/natt-terskel, tonekartlegging, tønneforvrengningskorreksjon, tekstoverlegg, bildeoverlegg, dynamisk tekst, Privacy Mask Function, polygon-personvernmaske, Lightfinder-teknologi, OptimizedIR, ONVIF (Profile G)-støtte, støtte for ONVIF (Profil M), støtte for ONVIF (Profile S), støtte for ONVIF (Profile T), Pixel Counter Support, scene metadata, undertegnet fastvare, råkrafts forsinkelsesvern, sammendragsverifisering, passordbeskyttelse, Axis Edge Vault, Axis enhets-ID, sikker nøkkellager, signert video, sikker oppstart, IP-adressesfiltrering
Bildesensor
Type
4 x 5 MP PS RGB CMOS 4 x 1/2.7"
Optisk konstruksjon
Type
Variabel fokallengde
Optisk zoom
2.5 x
Min/Maks brennvidde (zoomområde)
3.2 mm - 8.1 mm
Linseirisblender
F/1.9-3.2 fast irisblender
Min. fokusavstand
0.5 m
Vannrett synsfelt (grad)
37 - 99
Loddrett synsfelt (grad)
28 - 70
Diagonalt synsfelt (grader)
47 - 134
Panorering
Bevegelsesområde (grader)
Fra -90 til +90
Tipping
Bevegelsesområde (grader)
25 to 95
Grensesnitt
Nettverksgrensesnitt
Ethernet 10Base-T/100Base-TX/1000Base-T
Nettverksprotokoller
IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf
Ekspansjon / Tilkoplinger
Porter
LAN - RJ-45
Støttede minnekort
microSD-kort, microSDHC-kort, microSDXC-kort
Krypteringsalgoritme
TLS 1.2, TLS 1.3
Diverse
Tilleggsutstyr inkludert
Kontaktvern, kabelpakninger
TAA-samsvar
Ja
Tilpassede standarder
IEEE 802.1x, IEEE 802.1ar, UL, cUL, UKCA, KC, EAC, RCM, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN/UL 62368-1 Third Edition, IEC/EN 62471, IS 13252, AS/NZS 62368.1:2022, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK09, ISO 21207 method B, MIL-STD-810H, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), VDMA 24364, NIST SP500-267, ETSI EN 303 645, FIPS 140, IEEE 802.3at, PVC-free, BFR-fri, CFR free, RoHS 2011/65/EU, EN 63000:2018, REACH 2006/1907
Farge
Hvit, NCS S 1002-B
Strømforsyning
Strømforsyningskrav
PoE Plus Class 4
Strømenhet
13.25 watt
Programvare / Systemkrav
Inkludert programvare
AXIS Object Analytics, AXIS Video Motion Detection
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
