Pumper - Grundfos magna3 25-60n cirkulating pump 180 mm - 97924337
Varenummer: 2898941

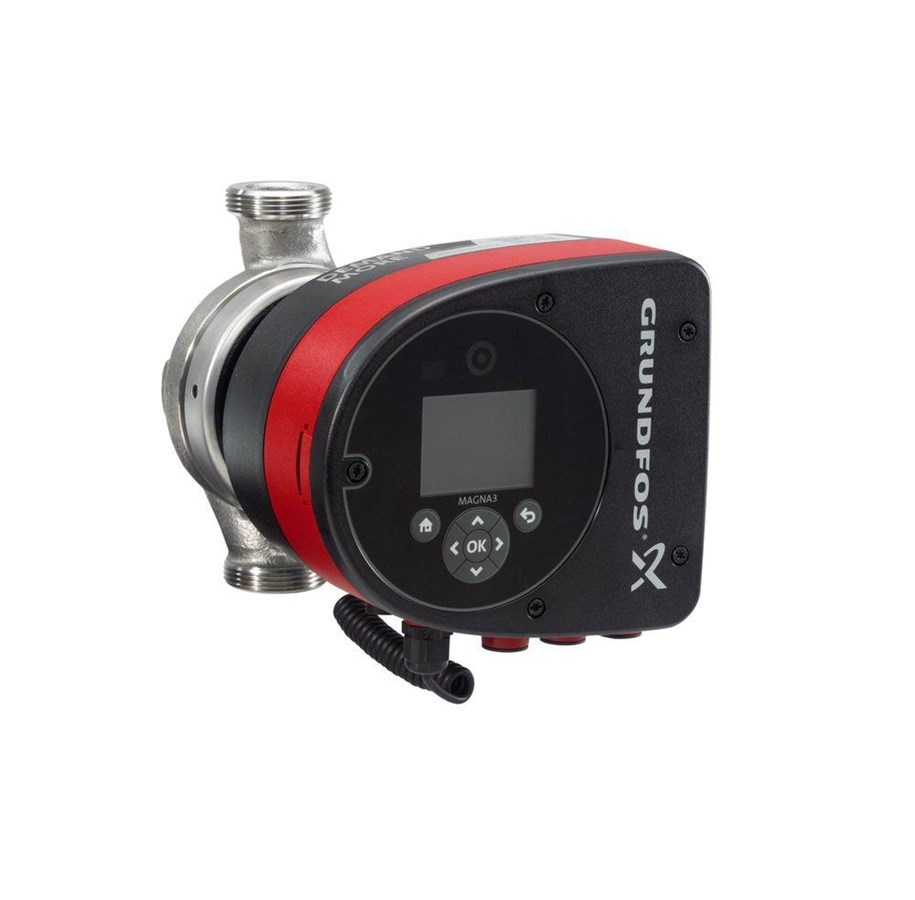

Grundfos magna3 25-60n cirkulating pump 180 mm

MAGNA3 40-100 FMAGNA3 – More than a pumpWith its unrivalled efficiency, all-encompassing range and built-in communication capabilities plus functionalities replacing system components, the MAGNA3 is ideal for engineers and specifiers looking to create high-performance systems for buildings. This pump in the Grundfos Master Class will fit both heating and cooling applications perfectly, making it the obvious choice for almost any building project – old or new.The MAGNA3 is of the canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.The innovative clamp with only one screw enables easy repositioning of the pump head. The MAGNA3 is a pump with no maintenance requirements and with extremely low Life Cycle Cost.The pump is characterised by the following:• controller integrated in the control box• control panel with TFT display on the control box• control box prepared for optional CIM modules• built-in differential-pressure and temperature sensor• cast-iron pump housing (depending on model)• carbon-fibre-reinforced composite rotor can• stainless-steel bearing plate and rotor cladding• aluminium alloy stator housing• air-cooled power electronicsThe MAGNA3 is a single-phase pump.Characteristic features• AUTOADAPT.• FLOWADAPT and FLOWLIMIT (more than a pump function as it reduces the need for pump throttling valves).• Proportional-pressure control.• Constant-pressure control.• Constant-temperature control.• Constant-curve duty.• Max. or min. curve duty.• Automatic Night Setback.• No external motor protection required.• Insulating shells supplied with single-head pumps for heating systems.• Large temperature range where the liquid temperature and the ambient temperature are independent of each other.CommunicationThe MAGNA3 enables communication via the following:• wireless Grundfos GO Remot

Les mer
14 893,00 kr 11 914,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 4-6 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT
FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

For å få levert varene dine før jul, må du bestille innen 17. desember kl. 14. Dette gjelder for postnummer 0 til 3999, varene må være på lager og leveres av PostNord. Bor du på et postnummer høyere enn 3999, må du bestille innen 16. desember kl. 14.

Abel (Modbus, BACnet, LON)• Grundfos Remote Management (GRM) via CIM modulerMAGNA3 25-60N circulation pump 180 mmProduct description:MAGNA3 25-60N - More than just a pumpWith unparalleled efficiency, comprehensive program and installation options plus functionalities that replace system components, MAGNA3 is particularly suitable for engineers and the like who seek to build high-performance building systems. This pump in Grundfos' Master Class will fit perfectly for both heating and cooling purposes, making it the obvious choice for almost any construction project - old or new.MAGNA3 is a wet rotor pump, meaning that the pump and motor form a single unit without shaft seals and with only two packings as seals. The bearings are lubricated by the pumped medium.The newly developed tensioning piece with only one screw makes it possible to quickly move the top piece. MAGNA3 is a maintenance-free pump with very low life cycle costs.The pump is characterized by:• Control integrated in control box• Operating panel with TFT display on control box• Control box prepared for CIM modules available as accessories• Built-in differential pressure and temperature sensor• Pump housing made of cast iron (depending on model)• Carbon fiber reinforced rotor casing in composite material • Bearing plate and rotor cap made of stainless steel • Stator housing made of aluminum alloy • Air-cooled power electronicsMAGNA3 is a single-phase pump.Characteristic advantages: • AUTOADAPT.• FLOWADAPT & FLOWLIMIT (more than just a pumping function as it reduces the need for throttle valves). • Proportional pressure regulation.• Constant pressure regulation.• Constant temperature regulation.• Constant curve operation.• Max or min curve operation. Automatic night lowering. No need for external motor protection.Isolation shells are supplied together with individual pumps for heating systems.Large temperature range where medium temperature and ambient temperature are independent.CommunicationWith MAGNA3, communication can be via:• Wireless remote control Grundfos GO Remote• Fieldbus cable (Modbus, BACnet, LON)• Grundfos Remote Management (GRM) via CIM modules.

Produsent
Varenummer
2898941
Model
97924337
Ean
5710626494132

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
