Pumper - Grundfos magna3 32-100 cirkulating pump 180 mm - 97924257
Varenummer: 2898943

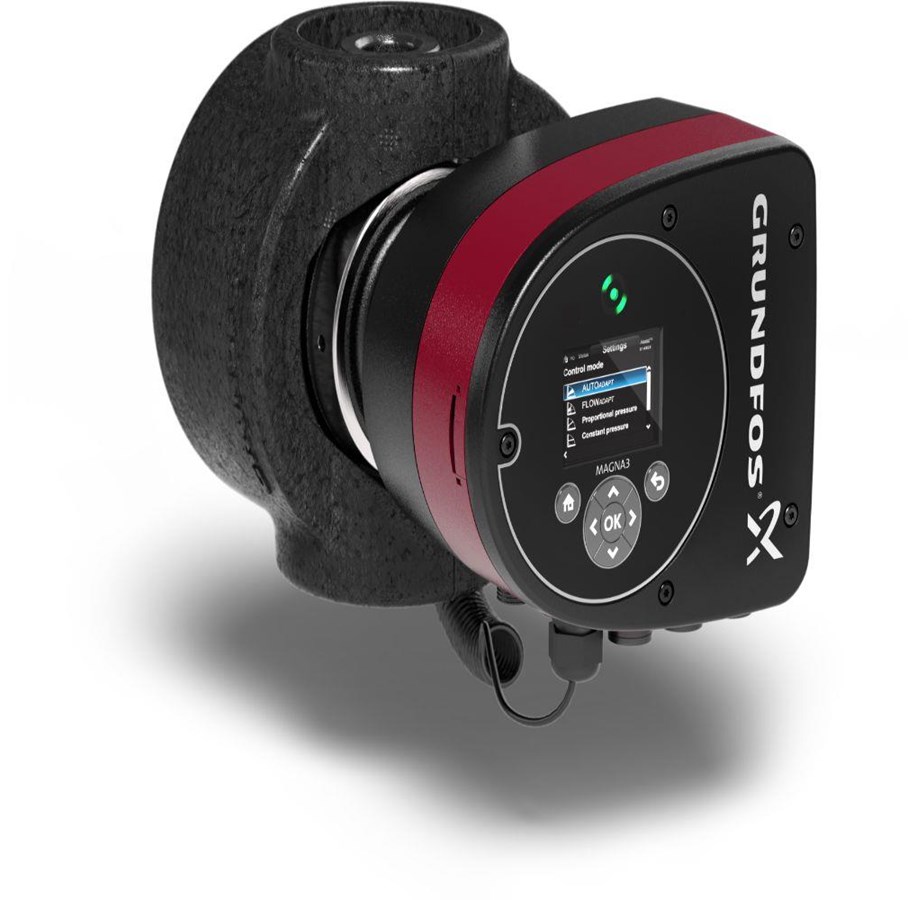

Grundfos magna3 32-100 cirkulating pump 180 mm

MAGNA3 40-100 FMAGNA3 – More than a pumpWith its unrivalled efficiency, all-encompassing range and built-in communication capabilities plus functionalities replacing system components, the MAGNA3 is ideal for engineers and specifiers looking to create high-performance systems for buildings. This pump in the Grundfos Master Class will fit both heating and cooling applications perfectly, making it the obvious choice for almost any building project – old or new.The MAGNA3 is of the canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.The innovative clamp with only one screw enables easy repositioning of the pump head. The MAGNA3 is a pump with no maintenance requirements and with extremely low Life Cycle Cost.The pump is characterised by the following:• controller integrated in the control box• control panel with TFT display on the control box• control box prepared for optional CIM modules• built-in differential-pressure and temperature sensor• cast-iron pump housing (depending on model)• carbon-fibre-reinforced composite rotor can• stainless-steel bearing plate and rotor cladding• aluminium alloy stator housing• air-cooled power electronicsThe MAGNA3 is a single-phase pump.Characteristic features• AUTOADAPT.• FLOWADAPT and FLOWLIMIT (more than a pump function as it reduces the need for pump throttling valves).• Proportional-pressure control.• Constant-pressure control.• Constant-temperature control.• Constant-curve duty.• Max. or min. curve duty.• Automatic Night Setback.• No external motor protection required.• Insulating shells supplied with single-head pumps for heating systems.• Large temperature range where the liquid temperature and the ambient temperature are independent of each other.CommunicationThe MAGNA3 enables communication via the following:• wireless Grundfos GO Remot

Les mer
13 388,00 kr 10 710,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Grundfos MAGNA3 32-100 circulation pump 180 mm Product description: MAGNA3 32-100MAGNA3 - More than just a pumpWith an unparalleled efficiency, comprehensive program and installation options plus functionalities that replace system components, MAGNA3 is particularly suitable for engineers and the like who seek to build high-performance building systems. This pump in Grundfos' Master Class will fit perfectly for both heating and cooling purposes, making it the obvious choice for almost any construction project - old or new.MAGNA3 is a wet rotor pump, i.e. the pump and motor form a single unit without shaft seal and with only 2 packings as sealing. The bearings are lubricated by the pumped medium.The newly developed tensioning piece with only one screw makes it possible to quickly move the top piece. MAGNA3 is a maintenance-free pump with very low life cycle costs.The pump is characterized by:• control integrated in control box• operating panel with TFT display on control box• control box prepared for CIM modules available as accessories• built-in differential pressure and temperature sensor• cast iron (depending on model) housing of the impeller.• carbon fiber reinforced composite rotor casing.• bearing plate and impeller cover made of stainless steel.• stator housing made of aluminum alloy.• air-cooled power electronicsMAGNA3 is a single-phase pump.Characteristic advantages:• AUTOADAPT.• FLOWADAPT and FLOWLIMIT (more than just a pumping function as it reduces the need for throttle valves).• Proportional pressure regulation.• Constant pressure regulation.• Constant temperature regulation.• Constant curve operation..Max or min curve operation..Automatic night lowering..No need for external motor protection..Insulation shells are supplied together with individual pumps for heating systems...Large temperature range where medium temperature and ambient temperature are independent of each other.CommunicationWith MAGN

Produsent
Varenummer
2898943
Model
97924257
Ean
5710626493326
