Pumper - Grundfos magna3 50-60 f 240 1x230v pn6/10 - 97924281
Varenummer: 2898929

Grundfos magna3 50-60 f 240 1x230v pn6/10

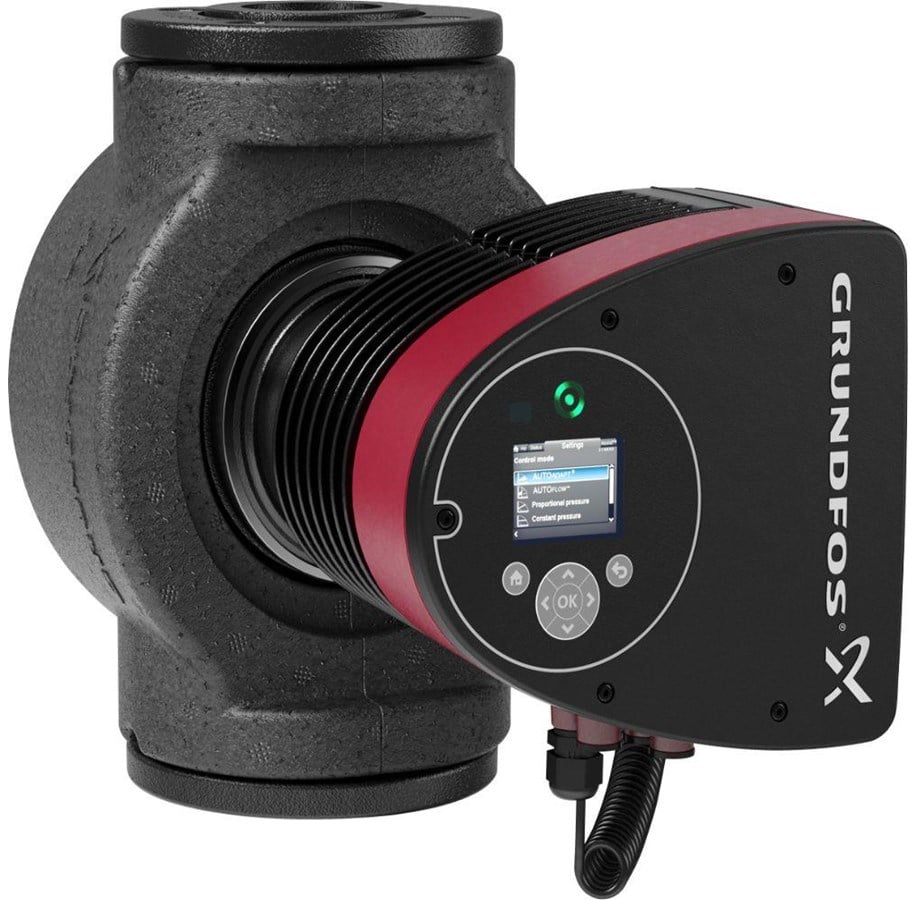

MAGNA3 50-60 FMAGNA3 – More than a pumpWith its unrivalled efficiency, all-encompassing range and built-in communication capabilities plus functionalities replacing system components, the MAGNA3 is ideal for engineers and specifiers looking to create high-performance systems for buildings. This pump in the Grundfos Master Class will fit both heating and cooling applications perfectly, making it the obvious choice for almost any building project – old or new.The MAGNA3 is of the canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.The innovative clamp with only one screw enables easy repositioning of the pump head. The MAGNA3 is a pump with no maintenance requirements and with extremely low Life Cycle Cost.The pump is characterised by the following:• controller integrated in the control box• control panel with TFT display on the control box• control box prepared for optional CIM modules• built-in differential-pressure and temperature sensor• cast-iron pump housing (depending on model)• carbon-fibre-reinforced composite rotor can• stainless-steel bearing plate and rotor cladding• aluminium alloy stator housing• air-cooled power electronicsThe MAGNA3 is a single-phase pump.Characteristic features• AUTOADAPT.• FLOWADAPT and FLOWLIMIT (more than a pump function as it reduces the need for pump throttling valves).• Proportional-pressure control.• Constant-pressure control.• Constant-temperature control.• Constant-curve duty.• Max. or min. curve duty.• Automatic Night Setback.• No external motor protection required.• Insulating shells supplied with single-head pumps for heating systems.• Large temperature range where the liquid temperature and the ambient temperature are independent of each other.CommunicationThe MAGNA3 enables communication via the following:• wireless Grundfos GO Remote

Les mer
36 463,00 kr 29 170,40 kr eksl. mva
Rimeligste private frakt: 165,00 kr
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Grundfos MAGNA3 50-60 F 240 1X230V PN6/10 Product description: MAGNA3 50-60 FMAGNA3 - More than just a pumpWith an unparalleled efficiency, comprehensive program and installation options plus functionalities that replace system components, MAGNA3 is particularly suitable for engineers and the like who seek to build high-performance building systems. This pump in Grundfos' Master Class will fit perfectly for both heating and cooling purposes, making it the obvious choice for almost any construction project - old or new.MAGNA3 is a wet rotor pump, i.e. pump and motor form a single unit without shaft seal and with only 2 packings as sealing. The bearings are lubricated by the pumped medium.The newly developed tensioning piece with only one screw makes it possible to quickly move the top piece. MAGNA3 is a maintenance-free pump with very low life cycle costs.The pump is characterized by:• control integrated in the control box• operating panel with TFT display on the control box• control box prepared for CIM modules available as accessories• built-in differential pressure and temperature sensor• cast iron housing (depending on model)• carbon fiber reinforced rotor casing in composite material • bearing plate and rotor cap in stainless steel • stator housing in aluminum alloy • air-cooled power electronicsMAGNA3 is a single-phase pump.Characteristic advantages:• AUTOADAPT.• FLOWADAPT and FLOWLIMIT (more than just a pumping function as it reduces the need for throttle valves). • Proportional pressure regulation.• Constant pressure regulation.• Constant temperature regulation.• Constant curve operation.• Max or min curve operation.• Automatic night lowering. • No need for external motor protection. • Insulation shells are supplied together with individual pumps for heating systems. • Large temperature range where medium temperature and ambient temperature are independent of each other.CommunicationWith MAGNA3 communication can be via:• wireless remote control Grundfos GO Remote• fieldbus communication

Produsent
Varenummer
2898929
Model
97924281
Ean
5710626493562
