Pumper - Grundfos magna3 65-120 f 340 1x230v pn6/10 - 97924298
Varenummer: 2898927

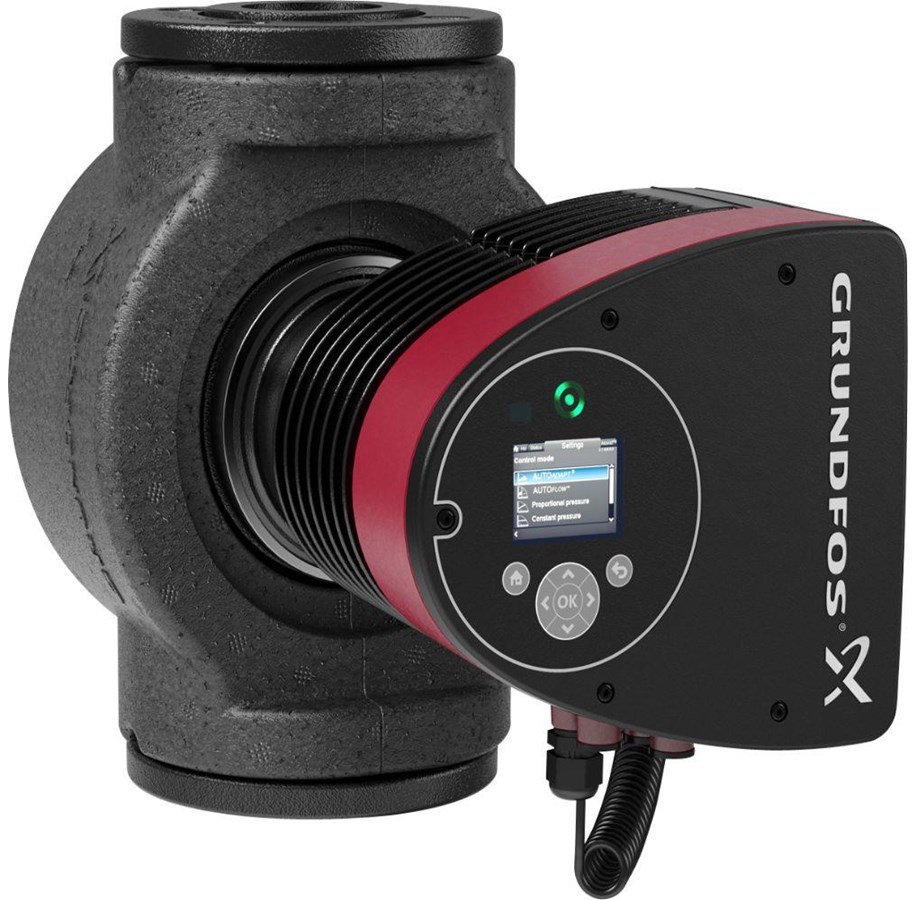

Grundfos magna3 65-120 f 340 1x230v pn6/10

MAGNA3 65-120 FMAGNA3 – More than a pumpWith its unrivalled efficiency, all-encompassing range and built-in communication capabilities plus functionalities replacing system components, the MAGNA3 is ideal for engineers and specifiers looking to create high-performance systems for buildings. This pump in the Grundfos Master Class will fit both heating and cooling applications perfectly, making it the obvious choice for almost any building project – old or new.The MAGNA3 is of the canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.The innovative clamp with only one screw enables easy repositioning of the pump head. The MAGNA3 is a pump with no maintenance requirements and with extremely low Life Cycle Cost.The pump is characterised by the following:• controller integrated in the control box• control panel with TFT display on the control box• control box prepared for optional CIM modules• built-in differential-pressure and temperature sensor• cast-iron pump housing (depending on model)• carbon-fibre-reinforced composite rotor can• stainless-steel bearing plate and rotor cladding• aluminium alloy stator housing• air-cooled power electronicsThe MAGNA3 is a single-phase pump.Characteristic features• AUTOADAPT.• FLOWADAPT and FLOWLIMIT (more than a pump function as it reduces the need for pump throttling valves).• Proportional-pressure control.• Constant-pressure control.• Constant-temperature control.• Constant-curve duty.• Max. or min. curve duty.• Automatic Night Setback.• No external motor protection required.• Insulating shells supplied with single-head pumps for heating systems.• Large temperature range where the liquid temperature and the ambient temperature are independent of each other.CommunicationThe MAGNA3 enables communication via the following:• wireless Grundfos GO Remot

Les mer
45 314,00 kr 36 251,20 kr eksl. mva
Rimeligste private frakt: 165,00 kr
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Patible CIM-moduler (ekstraudstyr)• Grundfos GO Balance app til hydraulisk balance og indregulering af anlægget• Grundfos GO Install app til nem installation og idriftsættelse af pumpenProduct description: MAGNA3 65-120 FMAGNA3 - More than just a pumpWith unparalleled efficiency, comprehensive program and installation options, plus functionalities that replace system components, MAGNA3 is particularly suitable for engineers and the like who seek to build high-performance building systems. This pump in Grundfos' Master Class will be perfect for both heating and cooling purposes, making it the obvious choice for almost any construction project - old or new.MAGNA3 is a wet rotor pump, meaning that the pump and motor form a single unit without shaft seals and with only 2 packings as seals. The bearings are lubricated by the pumped medium.The newly developed tensioning device with only 1 screw makes it possible to quickly move the top section. MAGNA3 is a maintenance-free pump with very low life cycle costs.The characteristics of this pump include:- Control integrated in control box- Operating panel with TFT display on control box- Control box prepared for CIM modules available as accessories - Built-in differential pressure and temperature sensor - Pump housing made of cast iron (depending on model)- Carbon fiber reinforced composite rotor casing - Bearing plate and rotor cap made of stainless steel -Aluminum alloy stator housing -Air-cooled power electronics MAGNA3 is a single-phase pump.Characteristic advantages:-AUTOADAPT.-FLOWADAPT AND FLOWLIMIT (more than just a pumping function as it reduces the need for throttle valves).-Proportional pressure regulation.-Steady pressure regulation.-Steady temperature regulation.-Steady curve operation.-Maximum or minimum curve operation.-Automatic night lowering.-No need for external motor protection.-Insulation shells are supplied with individual pumps for heating systems. -Large temperature range where the medium temperature and ambient temperature are independent of each other.CommunicationWith MAGNA3, communication can be done via:-Wireless remote control Grundfos GO Remote-Fieldbus-compatible CIM modules (accessories)-Grundfos GO Balance app for hydraulic balancing and system commissioning -Grundfos GO Install app for easy installation and commissioning of the pump.

Produsent
Varenummer
2898927
Model
97924298
Ean
5710626493739

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
