Pumper - Grundfos unilift ap 12.40.04 a1 1x230v 10m sch - 96011018
Varenummer: 2898887

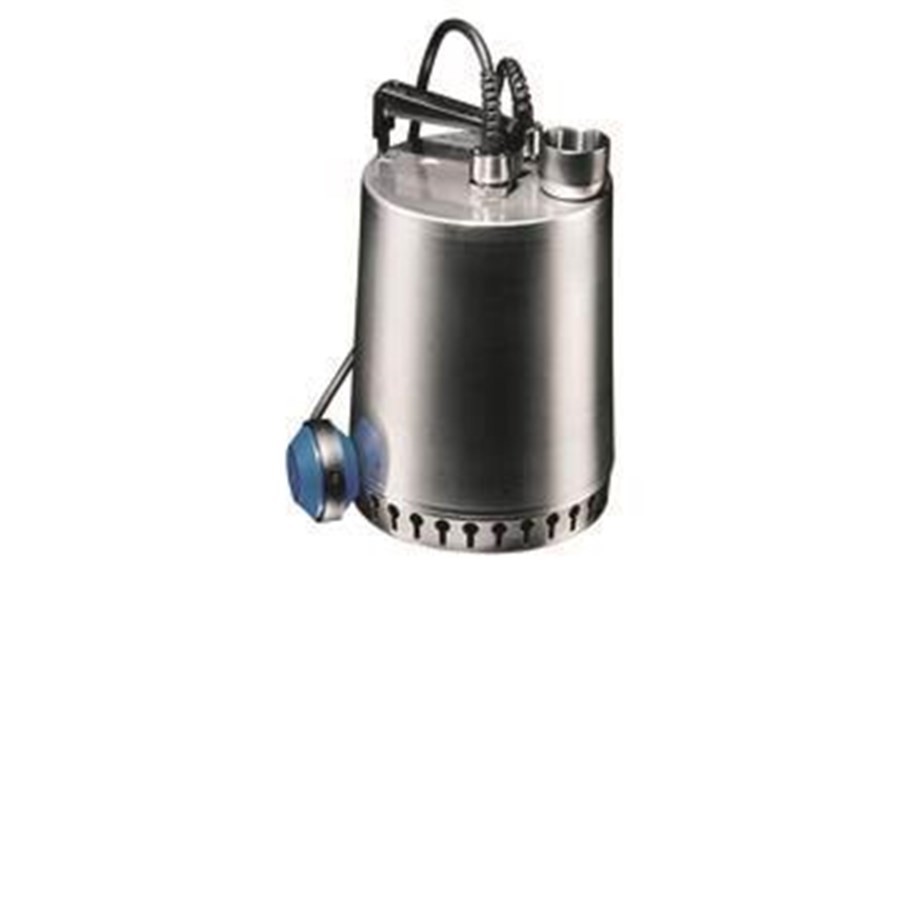

Grundfos unilift ap 12.40.04 a1 1x230v 10m sch

Unilift AP12.40.04.A1Submersible drainage pump typeVertical single-stage stainless steel submersiblepump with vertical discharge port and integratedsubmersible 1-phase totally enclosed motorin insulation class F with thermal overloadprotection. The pump is fitted with suction strainer and level switch for automatic start and stop.The impeller is a SEMI OPEN impeller for12 mm free passage suitable for pumpinggroundwater, surface water, rain water andsimilar.The pump has a double shaft seal and anintermediate oil chamber pre-filled with non-toxicspecial oil.The pump has a riser pipe, a cooling jacket for continuous cooling of the motor by the pumped liquid and long-life deep-groove greased-for-life ball bearings.The pump is ready for use as it is fitted withcarrying handle and is supplied with a10 m mains cable. The mains cable is ofthe plug type with glass sealing compound in thesocket to prevent penetration of humidity intothe stator windings.Liquid:Liquid temperature range:0 .. 55 °CTechnical:Type of impeller:SEMI OPENMaximum particle size:12 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr. 1.4301Impeller:AISI 304Installation:Pump outlet:Rp 1 1/2Maximum installation depth:10 mElectrical data:Type of motor:PSCPower input - P1:0.7 kWRated voltage:1 x 230 VRated current:3 ACos phi - power factor:0,99Rated speed:2770 rpmCapacitor size - run:12 F/400 VEnclosure class (IEC 34-5):IP68Insulation class (IEC 85):FLength of cable:10 mType of cable plug: SchukoOthers:Net weight:11 kgGross weight:11.5 kg

Les mer
13 416,00 kr 10 732,80 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 4-6 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT
FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

For å få levert varene dine før jul, må du bestille innen 17. desember kl. 14. Dette gjelder for postnummer 0 til 3999, varene må være på lager og leveres av PostNord. Bor du på et postnummer høyere enn 3999, må du bestille innen 16. desember kl. 14.

Grundfos UNILIFT drainage pump AP 12.40.04 A1 10m SCH with level switch Product description: Unilift AP12.40.04.A1 Submersible drainage pump Vertical 1-stage submersible pump in stainless steel with vertical outlet and integrated 1-phase fully enclosed submersible motor in insulation class F with thermal overload protection. The pump is equipped with an inlet sieve and level switch for automatic start and stop. The impeller is of the SEMI OPEN type for a free passage of 12 mm, suitable for pumping groundwater, surface water, rainwater and similar liquids.The pump has double shaft seals and an internal oil chamber filled with non-toxic special oil.The pump has a riser pipe, cooling jacket for continuous cooling of the motor using the pumped liquid, and maintenance-free lifetime lubricated ball bearings.The pump is ready to use as it is supplied with a carrying handle and a 10 m supply cable. The supply cable is equipped with a plug socket, sealed off by glass material in the clamp to prevent moisture from entering into the stator windings.Liquid:Liquid temperature range:0 ..55 °CTechnical:Type of impeller:SEMI OPENMaximum particle size:12 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI304Impeller:Stainless steelImpeller:DIN W.-Nr .43011Impeller:AISI304Installation:Pump outlet :Rp11/2Maximum installation depth :10 mElectrical data :Type of motor:PSCPower input - P1 :0 .7 kWRated voltage :1230 VRated current :3 ACos phi - power factor:.99Rated speed :2770 rpmCapacitor size - run:.F/400 VEnclosure class (IEC34-5):68Insulation class (IEC85):FLength of cable:10 mType of cable plug:SchukoOthers:Net weight :11 kgGross weight :11.5 kg

Produsent
Varenummer
2898887
Model
96011018
Ean
5700390901578
