Pumper - Grundfos unilift ap 12.40.06.1 1x230v 10m sch - 96001720
Varenummer: 2898888

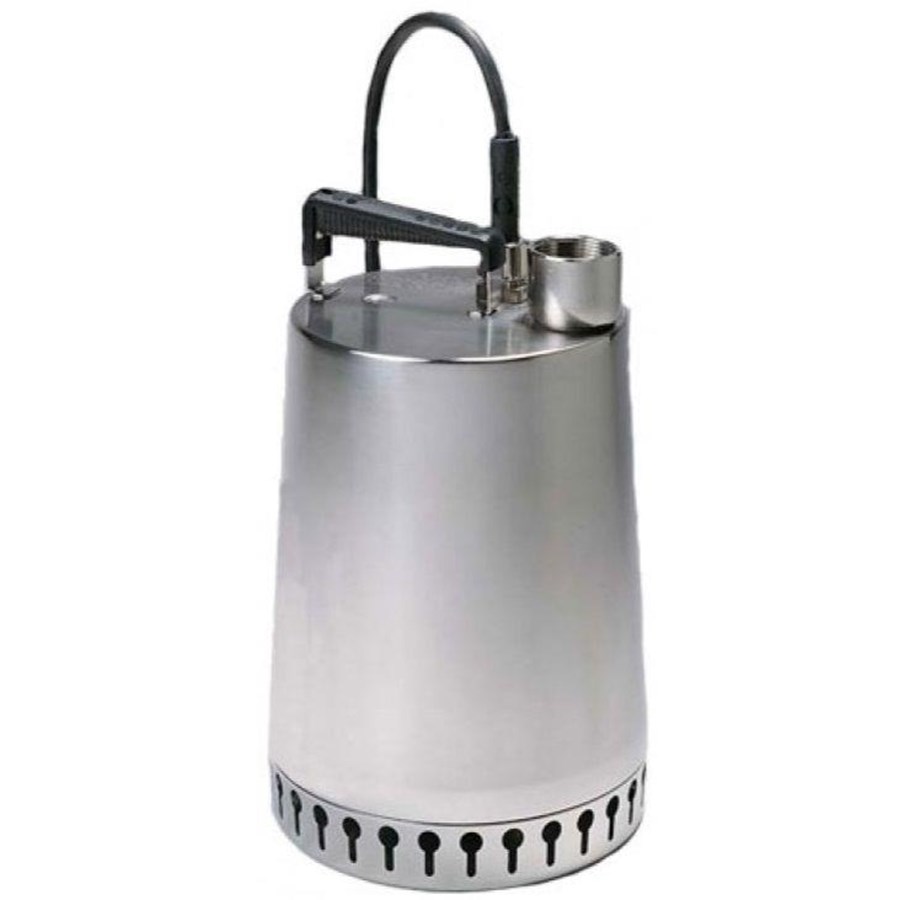

Grundfos unilift ap 12.40.06.1 1x230v 10m sch

Unilift AP12.40.06.1Submersible drainage pump typeVertical single-stage stainless steel submersiblepump with vertical discharge port and integratedsubmersible 1-phase totally enclosed motorin insulation class F with thermal overloadprotection. The pump is fitted with a suctionstrainer.The impeller is a SEMI OPEN impeller for12 mm free passage suitable for pumpinggroundwater, surface water, rain water andsimilar.The pump has a double shaft seal and an intermediate oil chamber pre-filled with non-toxic special oil.The pump has a riser pipe, a cooling jacket for continuous cooling of the motor by the pumped liquid and long-life deep-groove greased-for-life ball bearings.The pump is ready for use as it is fitted withcarrying handle and is supplied with a10 m mains cable. The mains cable is of theplug type with glass sealing compound in thesocket to prevent penetration of humidity intothe stator windings.Liquid:Liquid temperature range:0 .. 55 °CTechnical:Type of impeller:SEMI OPENMaximum particle size:12 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr. 1.4301Impeller:AISI 304Installation:Pump outlet:Rp 1 1/2Maximum installation depth:10 mElectrical data:Type of motor:PSCPower input - P1:0.9 kWRated voltage:1 x 230 VRated current:4.4 ACos phi - power factor:0,99Rated speed:2785 rpmCapacitor size - run:16 F/400 VEnclosure class (IEC 34-5):IP68Insulation class (IEC 85):FLength of cable:10 mType of cable plug: SchukoOthers:Net weight:12 kgGross weight:12.5 kg

Les mer
15 969,00 kr 12 775,20 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Grundfos UNILIFT drainage pump AP 12.40.06.1 10m SCH Product description: Unilift AP12.40.06.1 Submersible drainage pump Vertical single-stage submersible pump in stainless steel with vertical outlet and integrated 1-phase fully enclosed submersible motor in insulation class F with thermal overload protection. The pump is equipped with an inlet sieve.The impeller is a SEMI-OPEN impeller for 12 mm-free passage suitable for pumping groundwater, surface water, rainwater and similar liquids.The pump has a double shaft seal and an internally oil-filled chamber filled with non-toxic special oil.The pump has a riser pipe, cooling jacket for continuous cooling of the motor using the pumped liquid and maintenance-free, lifetime-lubricated track ball bearings.The pump is ready to use as it is supplied with carrying handle and 10 m supply cable which comes fitted with plug socket, sealed glass material in the base to prevent moisture from entering into stator windings.Liquid:Liquid temperature range:0 .. 55 °CTechnical:Impeller type:SEMI-OPENMax particle size:12 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr .4301Impeller:AISI304Installation:Pump outlet :Rp11/2Max installation depth :10 mElectrical data :Motor type:PSCPower consumption - P1 :0 .9 kWNominal voltage :230 VNominal current :4 .4 ACos phi - power factor :0 .99Rated speed :2785 rpmCapacitor size - during operation16 F /400 V Enclosure class (IEC34-5):68Insulation class (IEC85):FCable length :10 mType of cable plug: SchukoOthers:Net weight :12 kgGross weight :12.5 kg

Produsent
Varenummer
2898888
Model
96001720
Ean
5700390471606
