Pumper - Grundfos unilift ap 35b 50.06.3v 3x400v 5m noplug - 96004565
Varenummer: 2898894

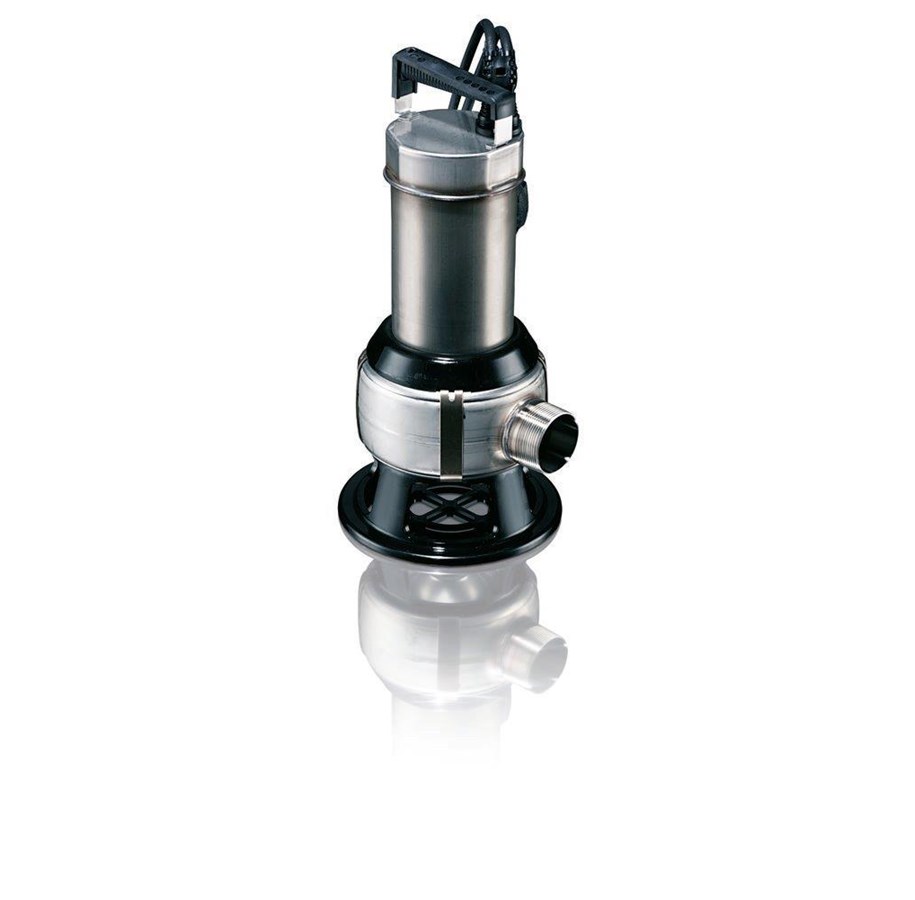

Grundfos unilift ap 35b 50.06.3v 3x400v 5m noplug

Unilift AP35B.50.06.3.VSubmersible effluent pumpVertical single-stage stainless steel submersiblepump with integrated submersible 3-phasemotor. The pump is fitted with ring stand and carryinghandle and is supplied with a 5 m mainscable. The impeller is a VORTEX impeller for35 mm free passage suitable for pumpingsurface water, groundwater, wastewater andsimilar.The pump has a double shaft seal and anintermediate oil chamber pre-filled with non-toxicspecial oil. The motor is insulation class F and has long-life deep-groove greased-for-life ball bearings.The pump has R 2' discharge port and is readyfor installation either free-standing or on anauto-coupling system. Liquid:Maximum liquid temperature:40 °CTechnical:Type of impeller:VORTEXMaximum particle size:35 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr. 1.4301Impeller:AISI 304Installation:Pump outlet:R 2'Maximum installation depth:7 mElectrical data:Power input - P1:1 kWRated voltage:3 x 400 VRated current:1.55 ACos phi - power factor:0,89Rated speed:2830 rpmEnclosure class (IEC 34-5):IP68Insulation class (IEC 85):FLength of cable:5 mType of cable plug:NONEOthers:Net weight:8.22 kg

Les mer
12 660,00 kr 10 128,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Grundfos drainage pump AP 35B 50.06.3V 3X400V 5M Product description: Unilift AP35B.50.06.3.V Wastewater pump Vertical single-stage submersible pump in stainless steel with integrated 3-phase submersible motor. The pump has a base plate and carrying handle and comes with a 5 m power cable. The impeller is a FREE-FLOW impeller with free passage of up to 35 mm and is suitable for pumping surface water, groundwater, wastewater, and similar liquids.The pump has double shaft seals and an intermediate chamber filled from the factory with non-toxic special oil.The motor is in insulation class F and has maintenance-free, lifetime-lubricated ball bearings.The pump has an R2' outlet connection and is designed for freestanding installation or installation using an auto-coupling system.Liquid:Max medium temperature:40 °CTechnical:Impeller type:FREE-FLOWMax particle size:35 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr.1,4301Pump housing:AISI304Impeller material :Stainless steelImpeller material :DIN W.-Nr .1,4301Impeller material :AISI304Installation:Pump outlet connection :R2'Maximum installation depth :7 mElectrical data:Intake power - P1 :1 kWNominal voltage :3 x400 VNominal current :1 .55 ACos phi - power factor:.89Nominal speed:.2830 rpmEnclosure class (IEC34-5):68Insulation class (IEC85):FCable length:.5 mType of cable plug:NONEOther featuresNet weight8 .22 kg

Produsent
Varenummer
2898894
Model
96004565
Ean
5700391488689
