Pumper - Grundfos unilift ap 50b 50.11.3 v 3x400v 5m no plug - 96004601
Varenummer: 2898893

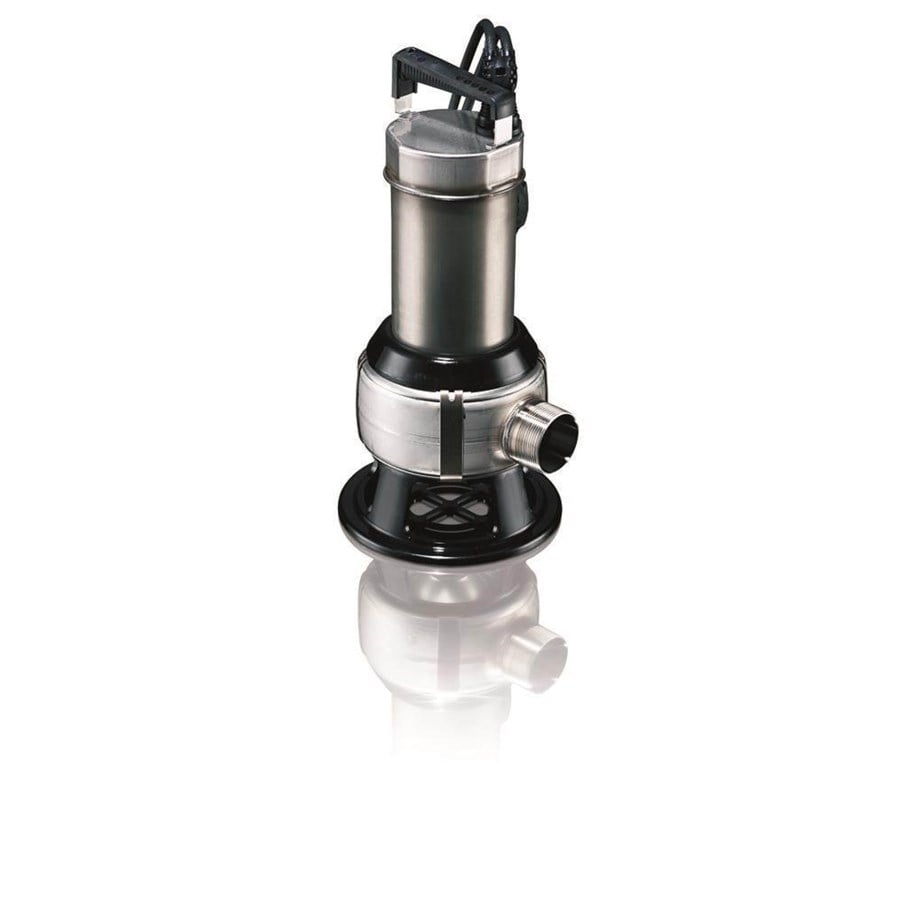

Grundfos unilift ap 50b 50.11.3 v 3x400v 5m no plug

Unilift AP50B.50.11.3.VSubmersible effluent pumpVertical single-stage stainless steel submersiblepump with integrated submersible 3-phasemotor. The pump is fitted with ring stand and carryinghandle and is supplied with a 5 m mainscable. The impeller is a VORTEX impeller for50 mm free passage suitable for pumpingsurface water, groundwater, wastewater andsimilar.The pump has a double shaft seal and anintermediate oil chamber pre-filled with non-toxicspecial oil. The motor is insulation class F and has long-life deep-groove greased-for-life ball bearings.The pump has R 2' discharge port and is readyfor installation either free-standing or on anauto-coupling system. Liquid:Maximum liquid temperature:40 °CTechnical:Type of impeller:VORTEXMaximum particle size:50 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr. 1.4301Impeller:AISI 304Installation:Pump outlet:R 2'Maximum installation depth:7 mElectrical data:Power input - P1:1.75 kWRated voltage:3 x 400 VRated current:2.81 ACos phi - power factor:0,90Rated speed:2785 rpmEnclosure class (IEC 34-5):IP68Insulation class (IEC 85):FLength of cable:5 mType of cable plug:NONEOthers:Net weight:10.6 kg

Les mer
21 829,00 kr 17 463,20 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Grundfos drainage pump AP 50B 50.11.3 V 3X400V 5M Product description: Unilift AP50B.50.11.3.VWastewater pumpVertical single-stage submersible pump in stainless steelwith integrated 3-phase submersible motor. The pump has a pump base and carrying handleand is supplied with a 5 m power cable.The impeller is a FREE-FLOW impeller with free passage of up to 50 mm and suitable for pumping surface water, groundwater, wastewater and similar.The pump has double shaft seal and an intermediate chamber filled from the factory with non-toxic special oil.The motor is in insulation class F and has maintenance-free, lifetime-lubricated track ball bearings.The pump has R2' outlet connection and is designed for freestanding installation orinstallation using an auto-coupling system.Liquid:Max medium temperature:40 °CTechnical:Type of impeller:FREE-FLOWMax particle size:50 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr.1,4301Pump housing:AISI304Impeller :Stainless steelImpeller :DIN W.-Nr .1,4301Impeller :AISI304Installation:Pump outlet connection :R2'Maximum installation depth :7 mElectrical data:Taken power - P1 :1.75 kWNominal voltage :3 x400 VNominal current :2 ,81 ACos phi - power factor:.90Rated speed:.2785 rpmEnclosure class (IEC34-5):68Insulation class (IEC85):FCable length:.5 mType of cable plug:NONEOther propertiesNet weight:.6 kg

Produsent
Varenummer
2898893
Model
96004601
Ean
5700391490088
