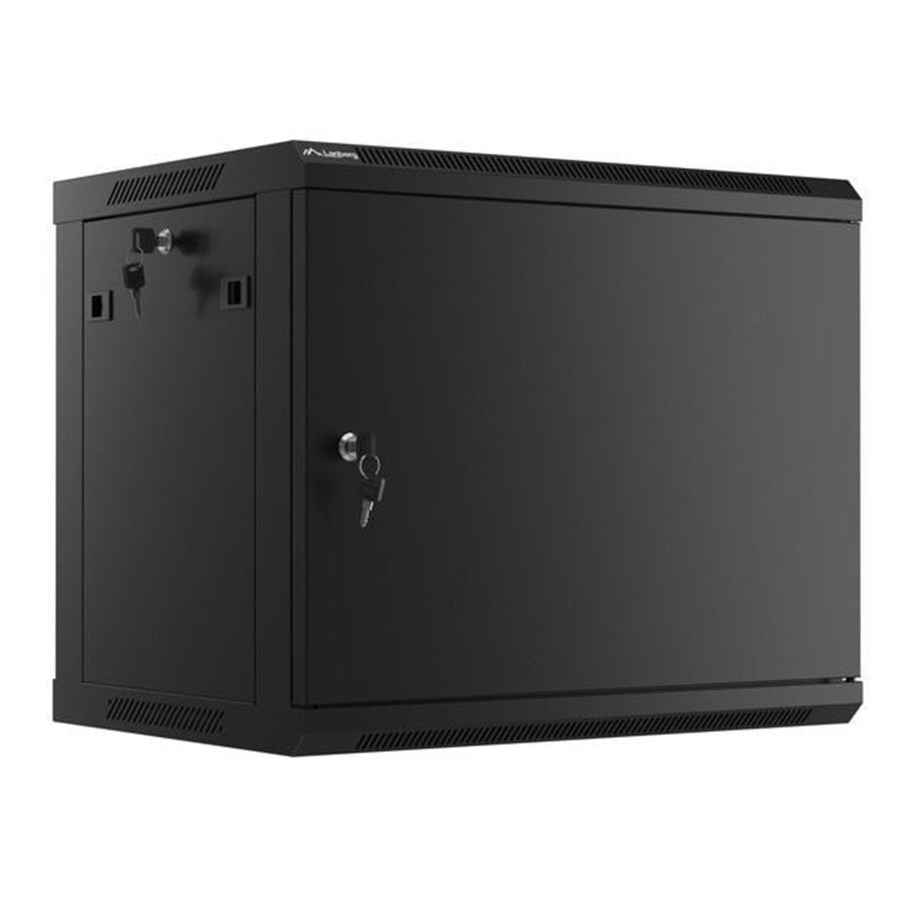

Lanberg WF01-6409-00B - 9U Wall-Mount Rack Cabinet
Rack skap, veggmonterbar, svart, RAL 9004, 9U, 19"
1 565,00 kr
1 252,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 5-7 dager til forsendelse
Wall mount, single section Lanberg cabinet WF01-6409-00B is a solution designed to expand networks, installation of cabling and equipment. It can be used in networks, server rooms, small and medium businesses.
It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. Appropriate design allows simple, self-assembly. Cabinet is characterized by IP20 degree of protection, opening front door with possibility of rotate to 180° with lock, removable side panels.
The cabinet has cable entry panel on top and bottom cover. This product is made of high grade cold rolled steel. Cabinet structure for self-assembly is in flat pack which facilitates transport. In addition, parcel includes additional accessories for rail mounts, M6 cage nuts and blank entry panels.
It can also work in low voltage systems such as cable television networks, alarm systems, fire protection systems and access control systems, CCTV and IP surveillance. Appropriate design allows simple, self-assembly. Cabinet is characterized by IP20 degree of protection, opening front door with possibility of rotate to 180° with lock, removable side panels.
The cabinet has cable entry panel on top and bottom cover. This product is made of high grade cold rolled steel. Cabinet structure for self-assembly is in flat pack which facilitates transport. In addition, parcel includes additional accessories for rail mounts, M6 cage nuts and blank entry panels.
Produsent
Varenummer
3018136
Model
WF01-6409-00B
Ean
5901969430110
Til produsentens hjemmeside
Produktbeskrivelse
Lanberg WF01 64/66 V2 Series - rack - 9U
Produkttype
Rack
Racktype
Skap
Plassering / montering
Veggmonterbar
Pakkeinnhold
Nøkler, veggmontering, 12 stk. M6 muttere, blankpaneler, bunndeksel, maskinvarepakke for montering, 2 sidepaneler med låser, frontdørlås, 4 vertical mounting rails, jordingssett
Farge
Svart, RAL 9004
Stativstørrelse
19"
Høyde (Stativenheter)
9U
Produktmateriale
Høyverdig kaldvalset stål
Dimensjoner (BxDxH)
45 cm x 60 cm x 51.235 cm
Vekt
19.72 kg
Egenskaper
Låsbar frontluke, låsbart sidepanel, kabelinngangser topp og bunn, flat pakke, 180-graders døråpning, avtakbare sidepaneler, IP20-vern, 2 spor for vifte, frontdør av metall
Fabrikantgaranti
3 års garanti
Generelt
Produkttype
Rack
Racktype
Skap
Plassering / montering
Veggmonterbar
Produktmateriale
Høyverdig kaldvalset stål
Pakkeinnhold
Nøkler, veggmontering, 12 stk. M6 muttere, blankpaneler, bunndeksel, maskinvarepakke for montering, 2 sidepaneler med låser, frontdørlås, 4 vertical mounting rails, jordingssett
Stativstørrelse
19"
Høyde (Stativenheter)
9U
Bredde
45 cm
Dybde
60 cm
Høyde
51.235 cm
Vekt
19.72 kg
Indre dimensjoner
37.95 cm
Farge
Svart, RAL 9004
Finish
Pulverbelegg
Diverse
Vektgrense
60 kg
Monteringssett
Inkludert
Montering kreves
Ja
Egenskaper
Låsbar frontluke, låsbart sidepanel, kabelinngangser topp og bunn, flat pakke, 180-graders døråpning, avtakbare sidepaneler, IP20-vern, 2 spor for vifte, frontdør av metall
Tilpassede standarder
ETSI, WEEE, IEC 297-2, IP20, DIN 41494 Part 7, ANSI/EIA-RS-310-D, RoHS 2011/65/EU, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-2:2017, IEC 62321-8:2017, IEC 62321-4:2013+A1:2017, Directive 2015/863UE, DIN 41494 Part 1
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
