Rackskap - Schneider Electric Actassi 19'' wall rack opb 15u fix chas d600 - NSYOPB15U6F
Varenummer: 2765266
NSYOPB15U6F

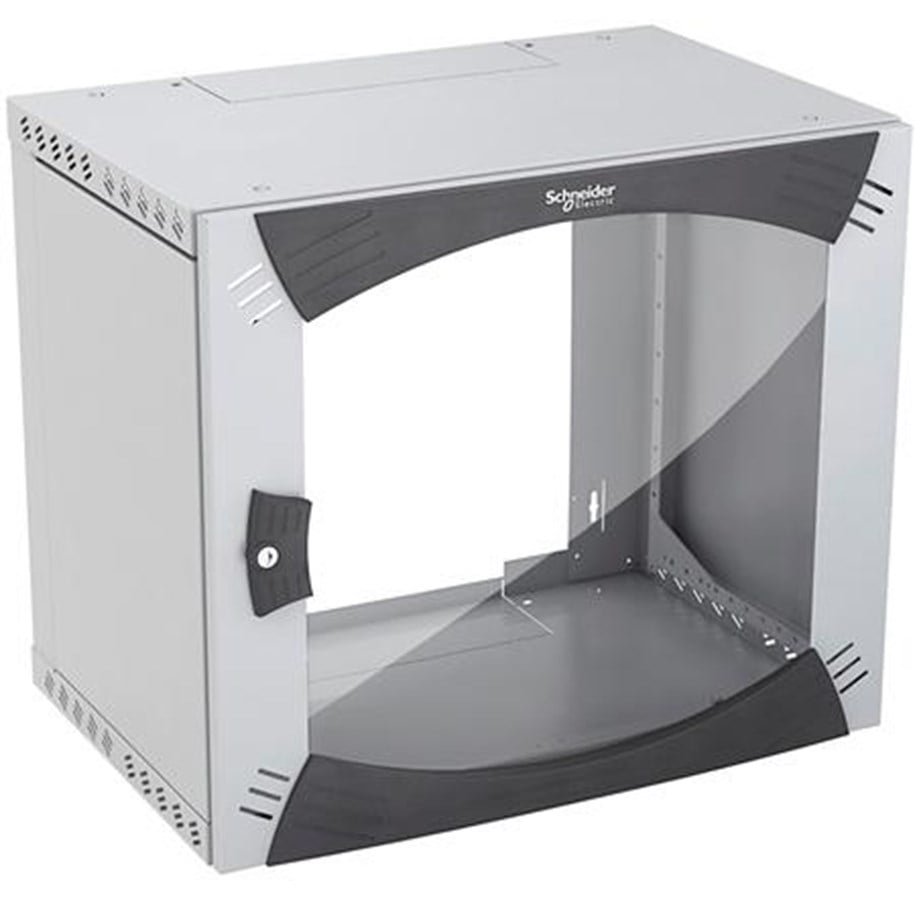

Schneider Electric Actassi 19'' wall rack opb 15u fix chas d600

This Actassi OPB is wall-mounting enclosure made from folded and welded sheet steel, powder paint, leather-grain finish, RAL 7035 light grey epoxy-polyester. The Enclosure is made up of a body, 2 hinged and removable side panels, 19-inch fixed uprights and a Securit glass transparent door with key no. 333. Rating of protection against object IP20, and against impact IK08 for the glazed door. Fixed 19-inch rack that accept up to 3kg per Unit, maximum 50kg per enclosure according to the IEC62208. The dimensions of this enclosure are 780mm in height (or 15U), 600mm in width and 600mm in depth.

Les mer
13 274,00 kr 10 619,20 kr eksl. mva
Rimeligste private frakt: 165,00 kr
Fjernlager, 2-4 dager til forsendelse

Actassi 19'' Rack 19'' wall rack with glass door, WxDxH: 600 x 600 x 780mm, 15U. Product description: Actassi wall rack cabinet with glass door WxDxH: 600x600x780mm,15U. In the wall rack cabinet, you can easily integrate patch panels, cables and active equipment. The wall rack is equipped with adjustable 19" and doors on both sides for easy access throughout the cabinet. The rack is supplied without a back panel and with punched flanges at the top and bottom for easy mounting over an existing cable installation. Mounting brackets in the rear of the cabinet make it easy to mount on a wall.Rack cabinets are an important part of the total Actassis system which also includes data connectors, patch panels and data outlets. With a complete Actassis system it is possible to achieve an extended warranty of up to25 years for functionality and spare parts.Technical specifications: Max load on each U (unit):3 kg.Max load on entire rack:50 kg.Enclosure rating (IP): IP20.Dimensions:WxDxH=600x600x780 mm.

Produsent
Varenummer
2765266
Model
NSYOPB15U6F
Ean
3606480169960
