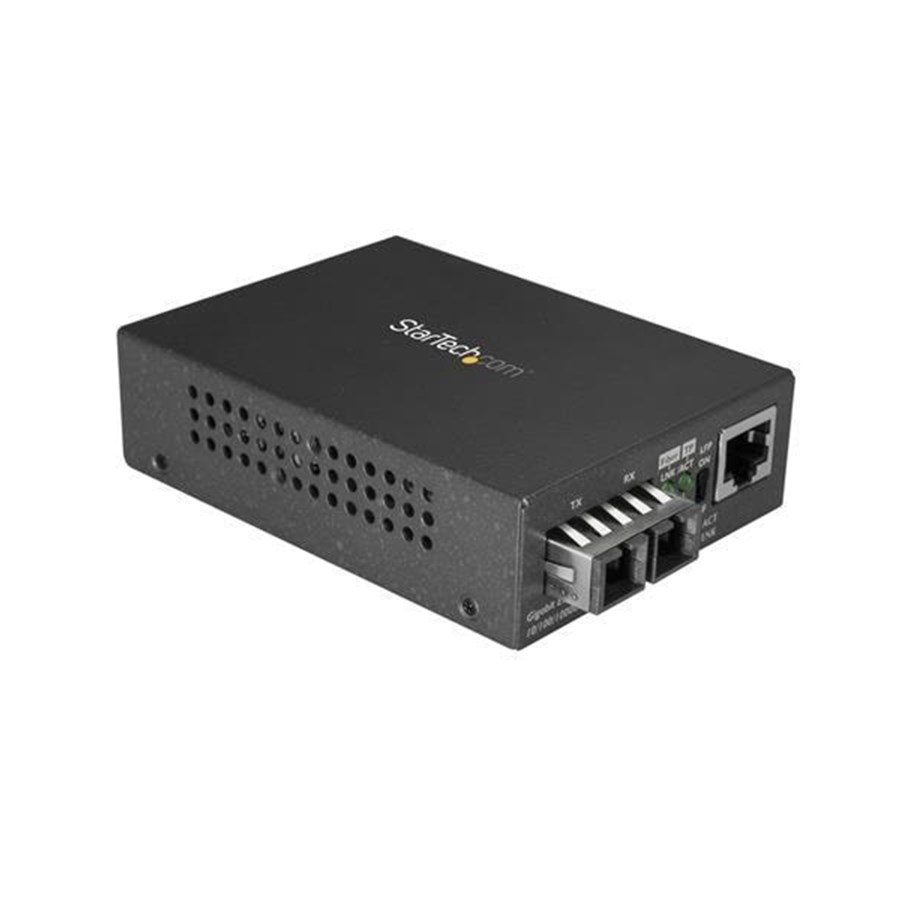

StarTech.com MCMGBSCMM055 Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex
Ethernet Over Fiber (MCMGBSCMM055), Fibermedieomformer, 1GbE, over fiberoptikk, 1000Base-SX, 100Base-TX, 1000Base-T, RJ-45 / SC flermodus, opp til 550 km, 850 nm
1 435,00 kr
1 148,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-6 dager til forsendelse
UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025
Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.
Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber. This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.
The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
Produsent
Varenummer
2652702
Model
MCMGBSCMM055
Ean
0065030878227
Til produsentens hjemmeside
Produktbeskrivelse
StarTech.com Multimode SC Fiber Media Converter for 10/100/1000 Network, 550m Range, Gigabit Ethernet, 850nm, Full Duplex Gigabit Ethernet Media Converter, Fiber Optic Media Converter - Ethernet Over Fiber (MCMGBSCMM055) - fibermedieomformer - 10Mb LAN, 100Mb LAN, 1GbE
Enhetstype
Fibermedieomformer - RJ-45 / SC flermodus
Produktformfaktor
Ekstern
Kabelføringstype
1000Base-SX, 100Base-TX, 1000Base-T
Dataoverføringshastighet
1 Gbps
Optisk bølgelengde
850 nm
Datakjedeprotokoll
10Mb LAN, 100Mb LAN, 1GbE
Transmisjonsmedium
Fiberoptikk
Maks. overføringsdistanse
550 km
Strømforsyning
AC 100 - 240 V
Dimensjoner (BxDxH)
7 cm x 9.7 cm x 2.6 cm
Vekt
200 g
Fabrikantgaranti
2 års garanti
Generelt
Enhetstype
Fibermedieomformer
Produktformfaktor
Ekstern
Farge
Brun
Nettverkstilknytning
Overføringsteknologi
Kablet
Kabelføringstype
1000Base-SX, 100Base-TX, 1000Base-T
Datakjedeprotokoll
10Mb LAN, 100Mb LAN, 1GbE
Dataoverføringshastighet
1 Gbps
Optisk bølgelengde
850 nm
Maks. overføringsdistanse
550 km
Statusindikatorer
Portdupleksmodus, strøm, lenke/aktivitet
Egenskaper
Auto-uplink (auto MDI/MDI-X), full dupleksmodus, overspenningsvern, 9 KB Jumbo Frame
Tilpassede standarder
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x
Ekspansjon / Tilkoplinger
Grensesnitt
1 x Ethernet 100Base-TX/1000Base-T - RJ-45 hunn
1 x Ethernet 100Base-SX - SC multi-mode hunn x 2
1 x Ethernet 100Base-SX - SC multi-mode hunn x 2
Diverse
MTBF
50,000 timer
Tilpassede standarder
cUL, FCC, RoHS, WEEE
Strømforsyning
Strømenhet
Ekstern strømadapter
Påkrevd nettspenning
AC 100 - 240 V
Strømforbruk ved drift
5 watt
Størrelser og vekt
Bredde
7 cm
Dybde
9.7 cm
Høyde
2.6 cm
Vekt
200 g
Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
