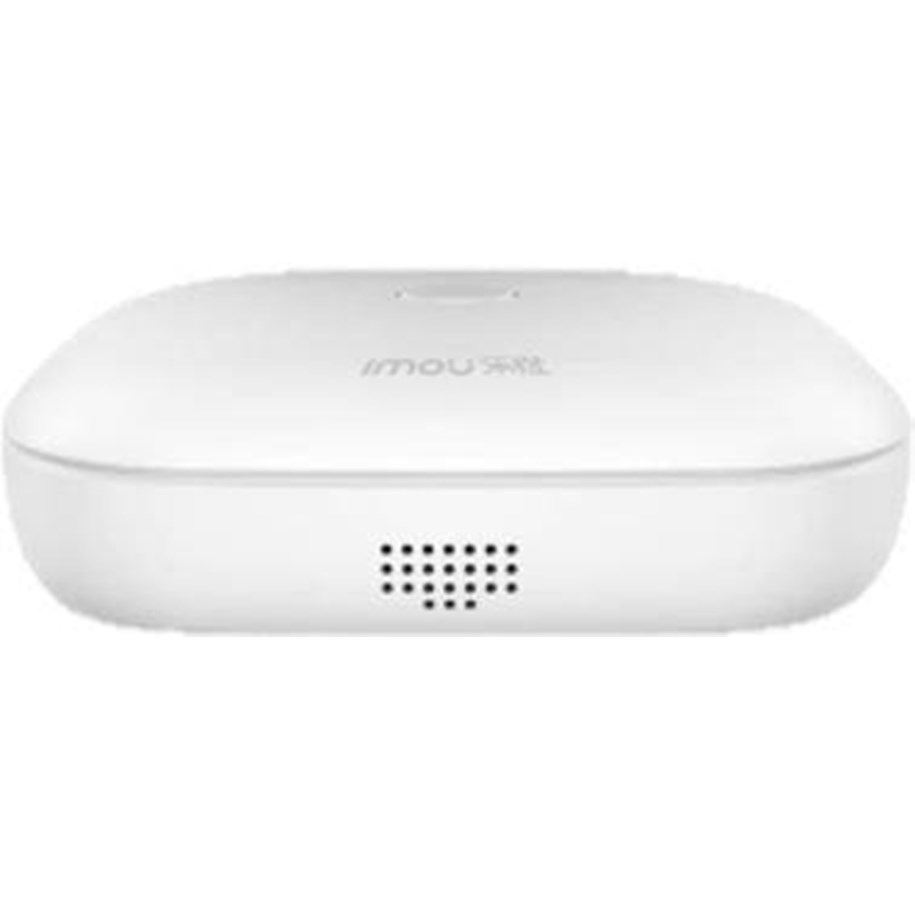

IMOU Zg1 (Wireless Gateway)
The smart alarm gateway is the control center of the security alarm system. Users can add, manage and control Zigbee sensors through the gateway. The alarm messages of the sensors are all reported by the gateway to the Imou cloud platform, and finally pushed to the user APP.
Wired&Wireless Connection
Gateway can connect to both wired and Wi-Fi
One-key configuration
Switch Home/Away/Disarm mode with one click
Remote APP control
Configure and view the state of the gateway through the APP
Local area network linkage
After the configuration, the home without network can still alarm
32-way sub-device access
A maximum of 32 sub-devices can be configured under the gateway
Built-in Siren
Remind your family of the alarm by sound
Specification:
General
Operating Voltage:DC 5V
Operating Temperature:-10~55℃
Operating Humidity:0~95%RH, no condensation
Installation Method: desktop & wall mounted
Appearance Size: 126.0×126.0×38.0mm
Network
Wireless Protocol:Wi-Fi IEEE 802.11 b/g/n 2.4GHz,Zigbee 3.0
Wired Connection:10/100Mbps adaptive Ethernet port
What’s in the box
• 1x Gateway
• 1x USB Cable
• 1x Quick Start Guide
• 1x Screw and Anchor Pack
• 1x Power Adapter
• 1x Wall Bracket
