Smarthus - Logic Group ZIF5020 Z-Wave DIN-Rail Smart Module for Automation Systems - ZIF5020
Varenummer: 2835650
ZIF5020
ZIF5020

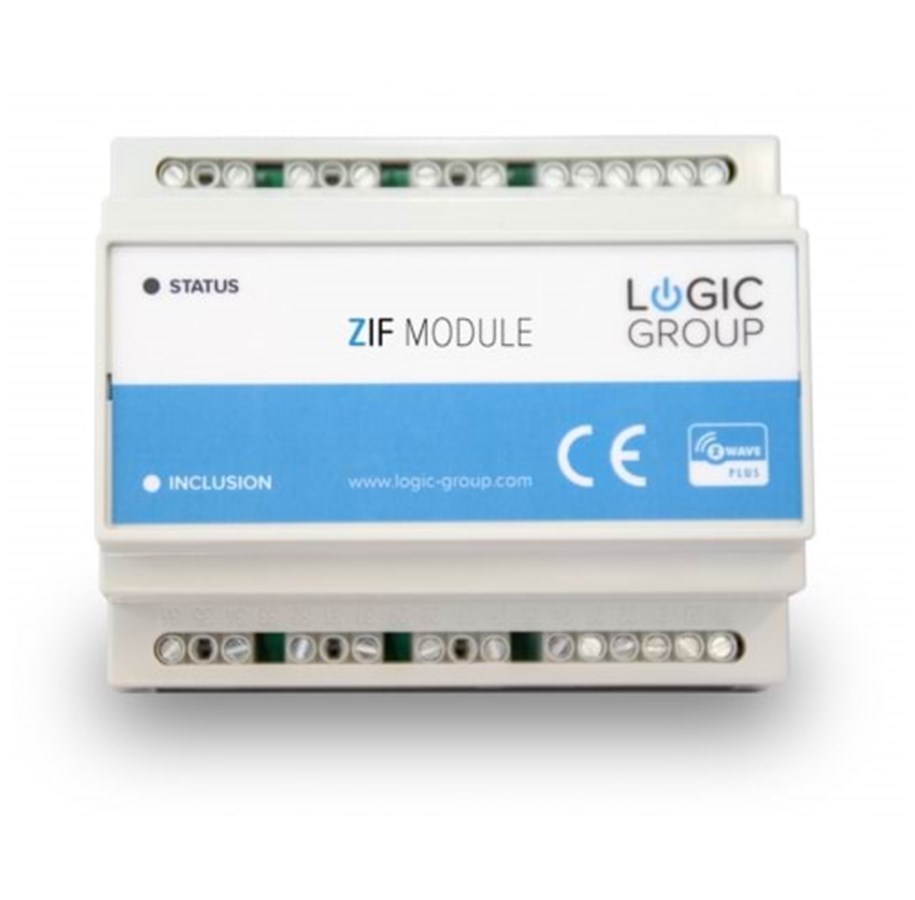

Logic Group ZIF5020 Z-Wave DIN-Rail Smart Module for Automation Systems

ZIF5020 a Z-Wave based device with 10 outputs and 4 inputs designed for mounting on a standard M36 DIN rail (EN50022). The 10 digital outputs (low-side switch) can be controlled freely over the Z-Wave network and used for various purposes. The 4 digital inputs can be connected to potential-free contacts, open-collector outputs, thereby enabling control of other Z-Wave based devices, such as relay modules, dimmers, curtain modules, etc. The 4 inputs of ZIF5020 enable activation of predefined scenes in a Z-Wave Controller unit. ZIF5020 can be powered with 10 – 24Vdc. Activation of Z-Wave inclusion and exclusion is done by activating a switch through a hole in the front of the module. ZIF5020 has a LED indicator on the front for status indication.

Les mer
1 829,00 kr 1 463,20 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 3-6 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

ZIF5020 a Z-Wave based device with 10 outputs and 4 inputs designed for mounting on a standard M36 DIN rail (EN50022). The 10 digital outputs (low-side switch) can be controlled freely over the Z-Wave network and used for various purposes. The 4 digital inputs can be connected to potential-free contacts, open-collector outputs, thereby enabling control of other Z-Wave based devices, such as relay modules, dimmers, curtain modules, etc. The 4 inputs of ZIF5020 enable activation of predefined scenes in a Z-Wave Controller unit. ZIF5020 can be powered with 10 â?? 24Vdc. Activation of Z-Wave inclusion and exclusion is done by activating a switch through a hole in the front of the module. ZIF5020 has a LED indicator on the front for status indication.

Produsent
Varenummer
2835650
Model
ZIF5020
Ean
5714090000080
