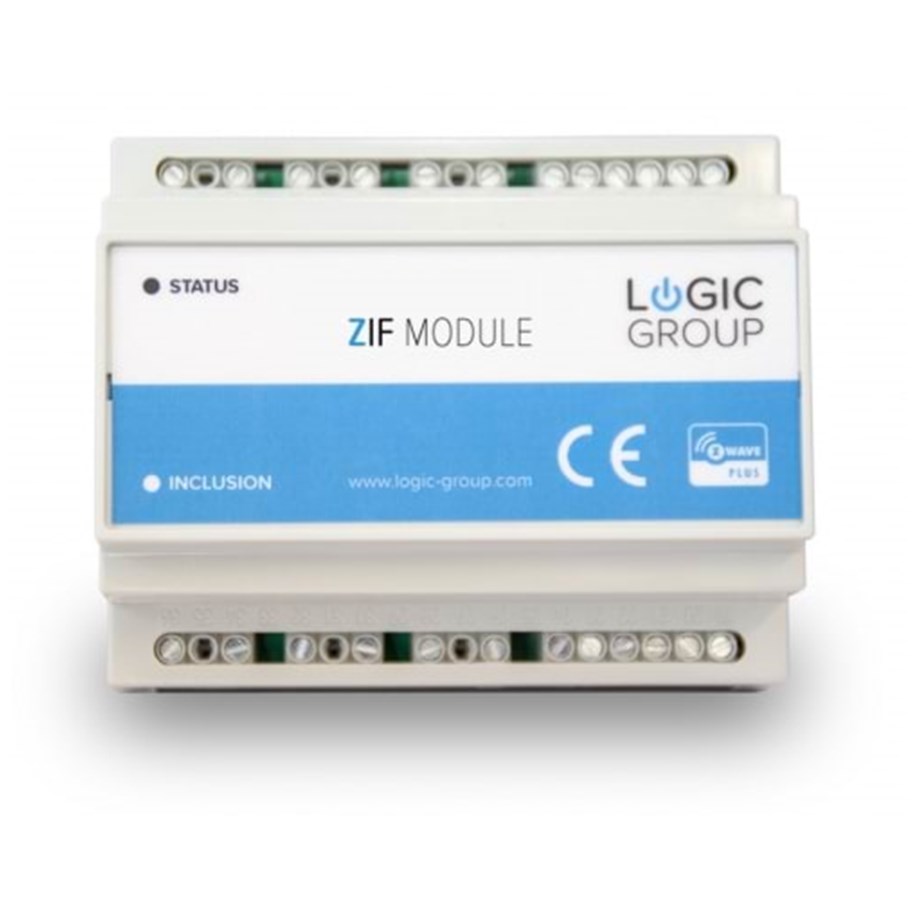

Logic Group ZIF5029 Z-Wave DIN-Rail Smart Module for Utility Meters
ZIF5029 is a Z-Wave based device with 6 relay outputs and 6 pulse inputs designed for mounting on a standard M36 DIN rail (EN50022). The 6 relay outputs can be freely controlled over the Z-Wave network and used for various purposes. The 6 pulse inputs can be used to count pulses from different types of consumption meters, such as water, electricity, and gas meters, which have an output that emits pulses when a specific consumption level is reached. You can also connect dual meters, such as an electric vehicle charger, solar panels, or a swimming pool. The 6 relay outputs can be used to control the house's lighting, socket groups, and motors, such as a garage door. ZIF5029 can be used to switch 6 pieces of 230V AC loads that can be freely controlled from the Z-Wave network. All 6 relay outputs are galvanically isolated from each other. ZIF5029 can be powered with 10-24V DC or 8-24V AC. Activation of Z-Wave inclusion and exclusion is done by activating a switch through a hole in the front of the module. ZIF5029 has a LED indicator on the front for status indication.
