Nanoleaf 4D Screen Mirror + Lightstrip Kit - up to 65"

Take your entertainment beyond the screen. Nanoleaf 4D is a screen mirror camera kit that syncs the colors on your screen onto the addressable gradient LED lightstrip mounted behind it.

Experience the ultra-immersive "4D" effect as the vibrant backlighting illuminates your space with the colors from your favorite shows, movies, and video games.

For a levelled-up entertainment experience, enable "Sync+" in the Nanoleaf App to extend the screen sync effects across 50+ Nanoleaf RGB lights—like Nanoleaf Shapes, Lines, and Essentials.

- Ultra Vivid Screen Mirroring
- Trimmable Lightstrip
- Privacy Cover for Camera
- Use with TV Screens or Monitors

Enhance Every Experience, whether you're a movie lover, a console gamer, a fan of karaoke nights or just having fun with friends !

Vivid Screen Mirroring
The colors from your favorite shows, movies, and video games extend out from your screen and into your space for an ultra-immersive entertainment experience.

Sync across 50+ Nanoleaf Devices
With Sync+ technology, extend the screen mirror effect across multiple Nanoleaf RGB lighting devices at once to transform your entire space with color and light.

10 Color Zones Per Meter
Ambient lighting and mirroring effects are enhanced with this high resolution addressable gradient lightstrip, allowing for multiple colors to appear on the lightstrip at once for the most accurate representation of your screen.

Customize to Fit your Screen & Versatile Camera Positioning
Trim the lightstrip to the best length to suit your screen size. With Smart Remap, lighting effects automatically adjust to the new length.
Place your camera either above or below your screen to best suit the layout of your setup.

Camera Privacy Cover
Included magnetic cover blocks camera lens when not in use for added peace of mind.

4 Mirror Modes for Endless Entertainment
Choose from 4 Screen Mirror modes with varying degrees of immersion to best suit what you're watching—from ambient background lighting, to fluid color melts, and finally a direct "4D" match for the highest impact.
Add Rhythm sound reactivity to any screen mirror mode to bring your favorite music videos and soundtracks to life!

Dynamic Color-Changing Scenes
Design your own lighting effects with 16M+ colors, or discover thousands created by the community. Enjoy these non-mirroring Scenes even when the screen is off: Set the ultimate gameshow vibe for trivia nights, rep your team for the big game, or just unleash your inner artist for all to see.

Rhythm Music Visualizer
Turn on a non-mirroring Rhythm Scene and watch as your lights react to your favorite music playlists in real-time for a complete audio-visual lightshow.

Magic Scenes
Enter any word to "magically" generate a unique Scene inspired by it. Try it with the titles or character names from your favorite shows, movies, or video games for a colorful and thematic treat!

Simple Setup & Control
Enjoy fast in-app setup with easy 2-step calibration.
Control with the Nanoleaf App or manual Controller, or use your Voice Assistant for non-mirroring effects ie. ON/OFF, Brightness, Scenes, Rhythm.

General Usage
Indoor Only

Luminous Flux Per Meter
275lm
Red: 71lm, Green: 177lm, Blue: 40lm

Lifetime
25,000 hours

Camera Positioning
Above or below the screen

Trimmable Lightstrip
Yes

Dimensions
Camera
31mm x 28mm x 34mm

Lightstrip
For Up to 65": 12mm x 4,8mm @4m

Controller
93,3mm x 57,1mm x 17mm

Camera Mount
181,2mm x 56,3mm x 50mm

Corner Brackets
148,5mm x 18mm x 17,9mm

Cable Length
Camera: 1,5 m
Lightstrip: 1 m
PSU: 2 m

Colour
Colour Channel Configuration
RGBIC

Resolution
30 LEDs per meter

Max Colours
More than 16 million

Colour Zones
10 zones per meter

Power
Input Voltage
100V~240V

Output Voltage
12V2A

Max Power Supply Power
24W

Max Energy Consumption Per meter of Lightstrip
7,2W

Control
Communication Protocol
Wi-Fi (2.4 GHz b/g/n)
NOTE: 5 GHz networks are not compatible with Nanoleaf products.

Dimmability
Yes, via the Nanoleaf App & Voice Control

Dimming Range
1%–100%, resolution at 0.1%

Thread Compatibility
4D Controller will work as a Thread Border Router

Compatibility
Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Razer Chroma

The Nanoleaf App
Control via Nanoleaf App (Android & iOS) for mobile/tablet or The Nanoleaf Desktop App (Windows & Mac).

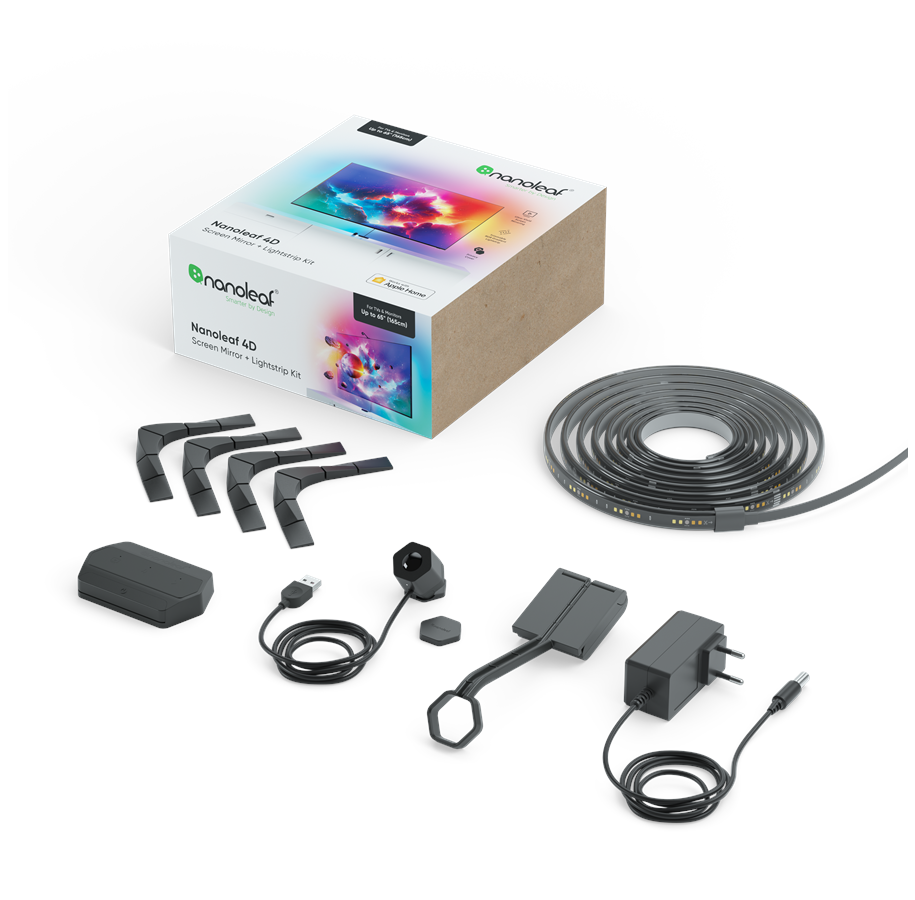

What's in the box
Nanoleaf 4D Screen Mirror + Lightstrip Kit (For TVs and Monitors up to 65"/165 cm)
- Camera, Mount & Privacy Cover
- Addressable Lightstrip
- Controller & Power Supply
- Corner Brackets
- Quick Start Guide
