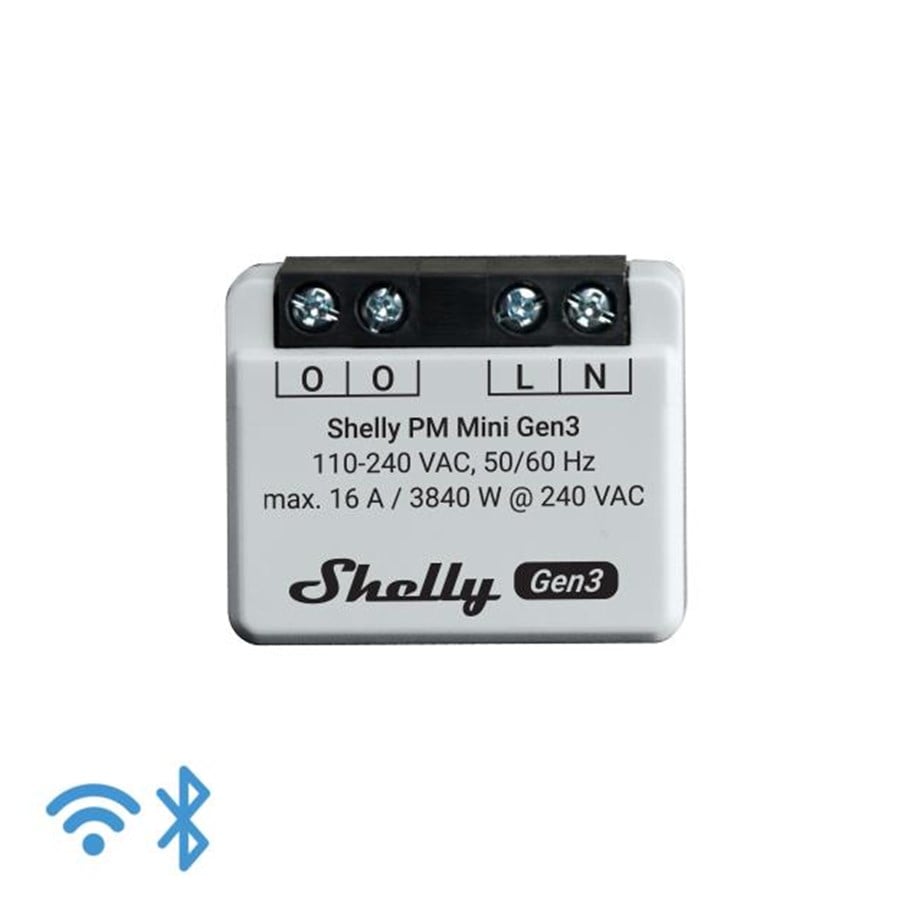

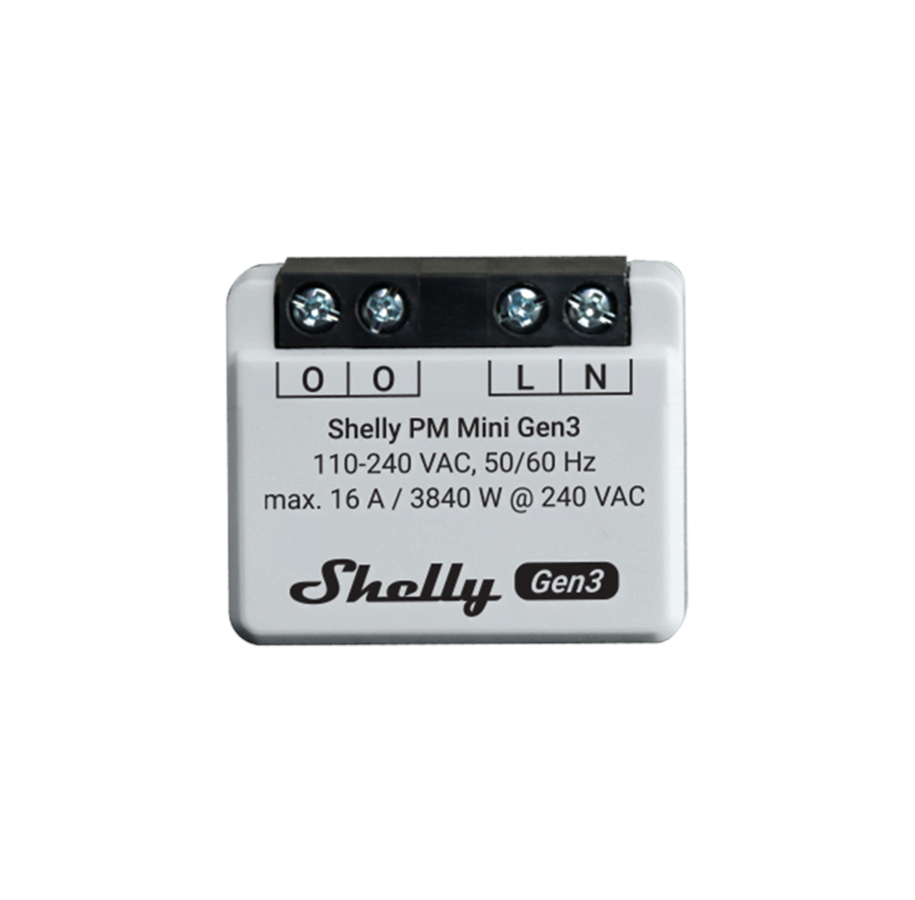

Shelly PM Mini (GEN 3)

Shelly PM Mini Gen3 is a small form factor monophase energy meter. Enhanced with all the gen3 firmware flexibility, it provides professional integrators with additional options for end-customer solutions. It can work stand alone in a local Wi-Fi network, or it can also be operated through cloud home automation services through MQTT, HTTP, and WebSocket. All inbound connections support TLS.
The Device reports accumulated energy as well as instantaneous voltage, current, active, and apparent power per in real time. It stores data in non-volatile memory that can be retrieved for a period of up to 60 days in 1-minute intervals.
The Device has a real-time clock to keep the correct time if the connection to an SNTP server is lost.
Shelly PM Mini can be accessed, set up, and monitored remotely by the User, as well as the Device can access and communicate with an automation system, as long as they are in the same network infrastructure.
The Device has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Shelly PM Mini has two outputs and can measure up to 16A total load.

NOTICE! The Device does not have a built-in relay.

Features
•    No load threshold*
•    Real-time clock
•    Data logs
•    Accuracy Class B (IEC 62053-21)
•    In case the total load for the three channels drops below 30 VA the measured power level will be displayed, but no consumed energy will be accumulated to the energy statistics and a "No load threshold" notification will be displayed in the Device web interface and the mobile application.

Main applications
•    Residential
•    MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
•    Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
