Strømforsyning (PSU) - Akyga AK-T1-300 - power supply Strømforsyning (PSU) - 300 Watt - 80 mm - ATX - 80 Plus White sertifisert - AK-T1-300
Varenummer: 2812555
AK-T1-300

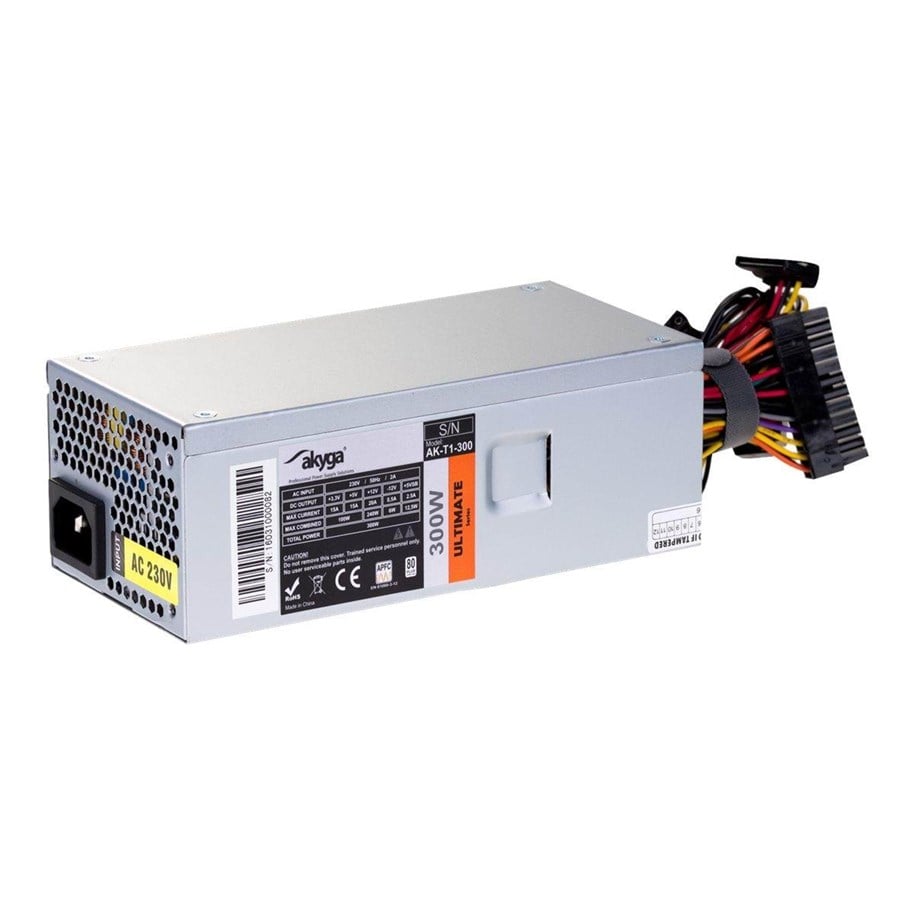

Akyga AK-T1-300 - power supply Strømforsyning (PSU) - 300 Watt - 80 mm - ATX - 80 Plus White sertifisert

Strømforsyning (intern), TFX12V, 80 PLUS, AC 230 V, 300 watt, aktiv PFC, grå

1 035,00 kr 828,00 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 5-7 dager til forsendelse

The Akyga TFX power supply 300W is an advanced, compact power adapter dedicated to mini and media PC systems. It supports all the latest construction standards, ensuring high performance and stability.The power supply features a 4-pin connector, MOLEX connector, 3 x SATA connector and universal 24-pin motherboard connector. A guarantee of high efficiency is the 80 PLUS compatibility which ensures that at least 80% of energy provided by the power supply is received by computer's components and a maximum of 20% of energy is lost in the form of heat. High efficiency allows effective supplying and so the stable operation of the power supply affects the reliability of all components of the computer. Effective cooling is provided by efficient, silent fan of 8 cm diameter. The power supply is ideal for small and medium-sized cases thanks to optimized 36 cm long set of cables. Product is made of durable galvanized steel.An important aspect is the presence of several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and active PFC filter that protects and prevents motherboard, processor and other parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference. The TFX AK-T1-300 power supply is a high-quality product that meets the current requirements and corresponds to modern standards.

Produsent
Varenummer
2812555
Model
AK-T1-300
Ean
5901720132857
Til produsentens hjemmeside
Produktbeskrivelse
Akyga Ultimate Series AK-T1-300 - strømforsyning - 300 watt
Enhetstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Spesifikasjonssamsvar
TFX12V
80 PLUS-sertifisering
80 PLUS
Vekt
836.4 g
Inngangsspenning
AC 230 V
Utgangsspenning
+3.3, +5, +12 V
Effektkapasitet
300 watt
Utgangsstrøm
+3.3V - 15 A
+5V - 15 A
+12V - 20 A
-12V - 0.5 A
+5VSB - 2.5 A
Inngangskontakter
1 x strøm IEC 60320 C14
Utgangskontakter
1 x strøm 24-pins ATX
1 x strøm 8-pins EPS12V med avtakbar 4-pins ATX12V-del
3 x 15-pins seriell ATA-strøm
Kjølesystem
80 mm-vifte
Farge
Grå
Dimensjoner (BxDxH)
8.5 cm x 17.5 cm x 6.5 cm
Fabrikantgaranti
2 års garanti

Generelt

Enhetstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Spesifikasjonssamsvar
TFX12V
PSU-formfaktor
TFX
Farge
Grå

Strømenhet

Inngangsspenning
AC 230 V
Inngangskontakter
1 x strøm IEC 60320 C14
Detaljer om strømutgangskoblinger
1 x strøm 24-pins ATX
1 x strøm 8-pins EPS12V med avtakbar 4-pins ATX12V-del
3 x 15-pins seriell ATA-strøm
Utgangsspenning
+3.3, +5, +12 V
Effektkapasitet
300 watt
Utgangsstrøm
+3.3V - 15 A
+5V - 15 A
+12V - 20 A
-12V - 0.5 A
+5VSB - 2.5 A
Effektivitet
80%+
80 PLUS-sertifisering
80 PLUS

Diverse

Medfølgende kabler
Strømkabel - ekstern - 1 m
MTBF
100,000 timer
Kjølesystem
80 mm-vifte
Egenskaper
Overopphetingsbeskyttelse, overstrømbeskyttelse, overspenningsvern, overstrømsbeskyttelse, underspenningsbeskyttelse, kortslutningsbeskyttelse
Tilpassede standarder
RoHS, REACH

Miljøparametere

Min. driftstemperatur
5 °C
Maks. Driftstemperatur
50 °C

Størrelser og vekt

Bredde
8.5 cm
Dybde
17.5 cm
Høyde
6.5 cm
Vekt
836.4 g

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
