Strømforsyning (PSU) - Seasonic FOCUS SPX 650 Strømforsyning (PSU) - 650 Watt - 92 mm - ATX - 80 Plus Platinum sertifisert - FOCUS-SPX-650
Varenummer: 3207246
FOCUS-SPX-650
FOCUS-SPX-650
FOCUS-SPX-650
FOCUS-SPX-650
FOCUS-SPX-650
FOCUS-SPX-650

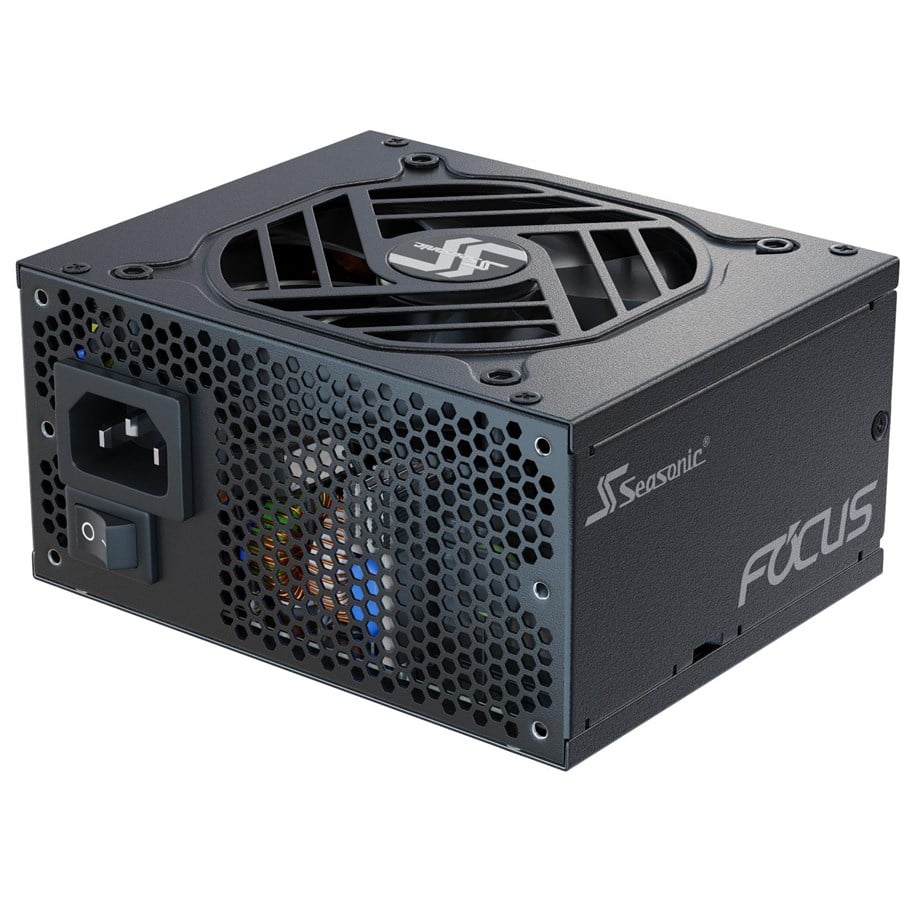

Seasonic FOCUS SPX 650 Strømforsyning (PSU) - 650 Watt - 92 mm - ATX - 80 Plus Platinum sertifisert

Strømforsyning ( intern ), SFX standard: ATX12V 12V / EPS12V 12V, 80 plus Platinum, 92mm kjøler med zero RPM mode teknologi og fluid dynamic lager, aktiv PFC, kabler: 4 x 8 (6+2) pins for grafikkort / 6 x 5 pins SATA / 3 x 4 pins Molex / 1 x 24 (20+4) pins ATX / 2 x 4+4 pins CPU, full modulær og tynn/sleeved kabler, kabler, farge: svart, 650 watt

Les mer
2 212,00 kr 1 769,60 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 11-13 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

The new line of Seasonic's FOCUS SPX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SPX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.

80 PLUS PLATINUM
The PRIME Platinum Series achieves 80 PLUS Platinum certification with its 92 % efficiency at 50 % system load.

STANDARD SFX SIZE
The 2021 version of the FOCUS SPX measures at 125 and 100 mm in length and width. This super-compact size allows it to fit into various sized computer cases.

SMART AND SILENT FAN CONTROL
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

Strømkabel (intern)

Vis flere

Produsent
Varenummer
3207246
Model
FOCUS-SPX-650
Ean
4711173877103
Til produsentens hjemmeside
Total strøm
650 W
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50 - 60 Hz
Innput-strøm
9 - 4.5 A
Kombinert strøm (+3.3V)
120 W
Kombinert strøm (+12V)
648 W
Kombinert strøm (+5V)
120 W
Kombinert strøm (-12V)
3,6 W
Kombinert strøm (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Maksimal utgangsstrøm (+12V)
54 A
Max output current (+5V)
20 A
Max output current (-12V)
0,3 A
Max output current (+5Vsb)
3 A
Strømbeskyttelsesfunksjoner
Overstrøm, Over-spenning (volt), Kortslutning
Strømkontakt for hovedkort
20+4 pin ATX
Perifere (Molex) strømkontakter (4-pin)
3
Hovedkort strømkabellengde
35 cm
Antall SATA-strømtilkoblinger
6
PCI Express-strømtilkobling (8-pin)
4
Kabeltype
Fullt modulær
Formål
PC
Strømforsyningsenhetens formfaktor
CFX
80 PLUS-sertifisering
80 PLUS Platinum
Bæreteknologi
FDB
Gjennomsnittstid mellom feil (MTBF)
100000 timer
Sertifisering
OPP, OVP, UVP, OCP, OTP, SCP, cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Produktfarge
Sort
Form for nedkjøling
Aktiv
Viftediameter
9,2 cm
Antall vifter
1 vifter
Av/på-bryter
Ja
Driftstemperatur (T-T)
0 - 50 °C
Kabler inkludert
AC, PlayStation Network, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Strips medfølger
Ja
Bredde
125 mm
Dybde
100 mm
Høyde
63,5 mm
Pakketype
Boks

Energihåndtering

Total strøm
650 W
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50 - 60 Hz
Innput-strøm
9 - 4.5 A
Kombinert strøm (+3.3V)
120 W
Kombinert strøm (+12V)
648 W
Kombinert strøm (+5V)
120 W
Kombinert strøm (-12V)
3,6 W
Kombinert strøm (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Maksimal utgangsstrøm (+12V)
54 A
Max output current (+5V)
20 A
Max output current (-12V)
0,3 A
Max output current (+5Vsb)
3 A
Strømbeskyttelsesfunksjoner
Overstrøm, Over-spenning (volt), Kortslutning

Tilkoblingsevne

Strømkontakt for hovedkort
20+4 pin ATX
Perifere (Molex) strømkontakter (4-pin)
3
Hovedkort strømkabellengde
35 cm
Antall SATA-strømtilkoblinger
6
PCI Express-strømtilkobling (8-pin)
4
Kabeltype
Fullt modulær

Ytelse

Formål
PC
Strømforsyningsenhetens formfaktor
CFX
80 PLUS-sertifisering
80 PLUS Platinum
Bæreteknologi
FDB
Gjennomsnittstid mellom feil (MTBF)
100000 timer
Sertifisering
OPP, OVP, UVP, OCP, OTP, SCP, cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Design

Produktfarge
Sort
Form for nedkjøling
Aktiv
Viftediameter
9,2 cm
Antall vifter
1 vifter
Av/på-bryter
Ja

Miljømessige forhold

Driftstemperatur (T-T)
0 - 50 °C

Emballasjeinnhold

Kabler inkludert
AC, PlayStation Network, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Strips medfølger
Ja

Vekt og dimensjoner

Bredde
125 mm
Dybde
100 mm
Høyde
63,5 mm

Datainnpakking

Pakketype
Boks

Ovenstående informasjon/spesifikasjoner er veiledende og kan uten varsel bli endret av produsenten. Det tas forbehold om trykkfeil og illustrerende bilder. Enkelte tekster kan være autogenerert eller maskinoversatt, så derfor kan det forekomme tekster som virker misvisende.
