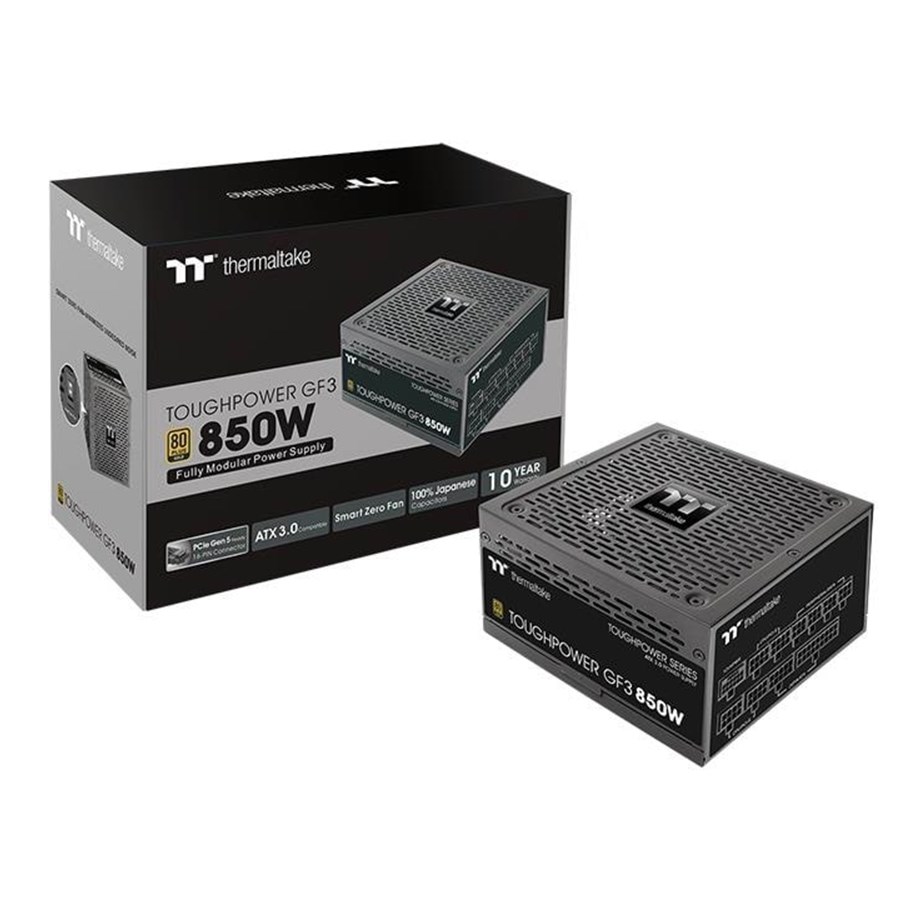

Strømforsyning (PSU) - Thermaltake Toughpower GF3 - TT Premium Edition Strømforsyning (PSU) - 850 Watt - 135 mm - ATX 3.0 - 80 Plus Gold sertifisert - PS-TPD-0850FNFAGE-4
Varenummer: 3264979
PS-TPD-0850FNFAGE-4
PS-TPD-0850FNFAGE-4
PS-TPD-0850FNFAGE-4
PS-TPD-0850FNFAGE-4
PS-TPD-0850FNFAGE-4
PS-TPD-0850FNFAGE-4

Thermaltake Toughpower GF3 - TT Premium Edition Strømforsyning (PSU) - 850 Watt - 135 mm - ATX 3.0 - 80 Plus Gold sertifisert

Thermaltake Toughpower GF3 strømforsyningsenhet 850 W 24-pin ATX Sort

Les mer
1 652,00 kr 1 321,60 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, 10-13 dager til forsendelse
proshop-xmas-gran proshop-xmas-gran

UTVIDET JULERETURRETT FRAM TIL 31. JANUAR 2025

Proshop tilbyr utvidet Juleretur til privatkunder på ordre kjøpt i perioden 1. november til 23. desember 2024. Les betingelsene her.

Toughpower GF3 850W Gold - TT Premium Edition
PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 850W includes all the critical features such as < 30mV low ripple noise design, extremely strict voltage regulation < ±2%, hold up time> 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.

Fully Compatible With Intel PSDG ATX 3.0 Specifications
Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.

Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.

PCIe Gen 5.0 Ready
Toughpower GF3 850W Gold comes with a 16pin connector to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.

Ultra Quiet Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

30mV Low Ripple Noise Design
Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

100% High Quality Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

135mm Fluid Dynamic Bearing fan
Featuring a 135mm fluid bearing fan to guarantee superior cooling performance.

80 PLUS Gold Certified and Intel C6/C7 States Ready
Tough power GF3 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Strømkabel (intern)

Vis flere

Produsent
Varenummer
3264979
Model
PS-TPD-0850FNFAGE-4
Ean
4713227533928
Til produsentens hjemmeside
Total strøm
850 W
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50 - 60 Hz
Power Factor Correction (PFC) type
Aktiv
Kombinert strøm (+3.3V)
120 W
Kombinert strøm (+12V)
849,6 W
Kombinert strøm (+5V)
120 W
Kombinert strøm (-12V)
3,6 W
Kombinert strøm (+5Vsb)
15 W
Max output current (+3.3V)
22 A
Maksimal utgangsstrøm (+12V)
70,8 A
Max output current (+5V)
22 A
Max output current (-12V)
0,3 A
Max output current (+5Vsb)
3 A
Holdtid
17 ms
Strømbeskyttelsesfunksjoner
Overstrøm, Overstrøm, Over-spenning (volt), Overoppheting, Kortslutning, Under voltage
Strømkontakt for hovedkort
24-pin ATX
Perifere (Molex) strømkontakter (4-pin)
4
Hovedkort strømkabellengde
60 cm
Antall SATA-strømtilkoblinger
12
SATA kraftledning lengde
500,650,800,950 mm
Peripheral (Molex) strømkabellengde
500,650,800,950 mm
PCI Express-strømtilkobling (6+2-pin)
4
PCI Express-strømkontakter (16-pinners)
1
PCI Express-strømforsyning kabellengde
50 cm
CPU strømtilkobling (4+4-pin)
Ja
Strømkontakt til diskettstasjon
1
Kabeltype
Fullt modulær
Formål
PC
80 PLUS-sertifisering
80 PLUS Gold
Stillemodus
Ja
Bæreteknologi
FDB
Gjennomsnittstid mellom feil (MTBF)
100000 timer
Sertifisering
CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC
Produktfarge
Sort
Viftediameter
13,5 cm
Antall vifter
1 vifter
Av/på-bryter
Ja
Driftstemperatur (T-T)
0 - 40 °C
Oppbevaringstemperaturomåde (Celsius)
-20 - 70 °C
Relativ luftfuktighet under drift (H-H)
20 - 90%
Lagringsrelativ fuktighet
5 - 95%
Strips medfølger
Ja
Bredde
150 mm
Dybde
160 mm
Høyde
86 mm
Vekt
1,69 kg
Pakketype
Boks

Energihåndtering

Total strøm
850 W
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50 - 60 Hz
Power Factor Correction (PFC) type
Aktiv
Kombinert strøm (+3.3V)
120 W
Kombinert strøm (+12V)
849,6 W
Kombinert strøm (+5V)
120 W
Kombinert strøm (-12V)
3,6 W
Kombinert strøm (+5Vsb)
15 W
Max output current (+3.3V)
22 A
Maksimal utgangsstrøm (+12V)
70,8 A
Max output current (+5V)
22 A
Max output current (-12V)
0,3 A
Max output current (+5Vsb)
3 A
Holdtid
17 ms
Strømbeskyttelsesfunksjoner
Overstrøm, Overstrøm, Over-spenning (volt), Overoppheting, Kortslutning, Under voltage

Tilkoblingsevne

Strømkontakt for hovedkort
24-pin ATX
Perifere (Molex) strømkontakter (4-pin)
4
Hovedkort strømkabellengde
60 cm
Antall SATA-strømtilkoblinger
12
SATA kraftledning lengde
500,650,800,950 mm
Peripheral (Molex) strømkabellengde
500,650,800,950 mm
PCI Express-strømtilkobling (6+2-pin)
4
PCI Express-strømkontakter (16-pinners)
1
PCI Express-strømforsyning kabellengde
50 cm
CPU strømtilkobling (4+4-pin)
Ja
Strømkontakt til diskettstasjon
1
Kabeltype
Fullt modulær

Ytelse

Formål
PC
80 PLUS-sertifisering
80 PLUS Gold
Stillemodus
Ja
Bæreteknologi
FDB
Gjennomsnittstid mellom feil (MTBF)
100000 timer
Sertifisering
CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC

Design

Produktfarge
Sort
Viftediameter
13,5 cm
Antall vifter
1 vifter
Av/på-bryter
Ja

Miljømessige forhold

Driftstemperatur (T-T)
0 - 40 °C
Oppbevaringstemperaturomåde (Celsius)
-20 - 70 °C
Relativ luftfuktighet under drift (H-H)
20 - 90%
Lagringsrelativ fuktighet
5 - 95%

Emballasjeinnhold

Strips medfølger
Ja

Vekt og dimensjoner

Bredde
150 mm
Dybde
160 mm
Høyde
86 mm
Vekt
1,69 kg

Datainnpakking

Pakketype
Boks
