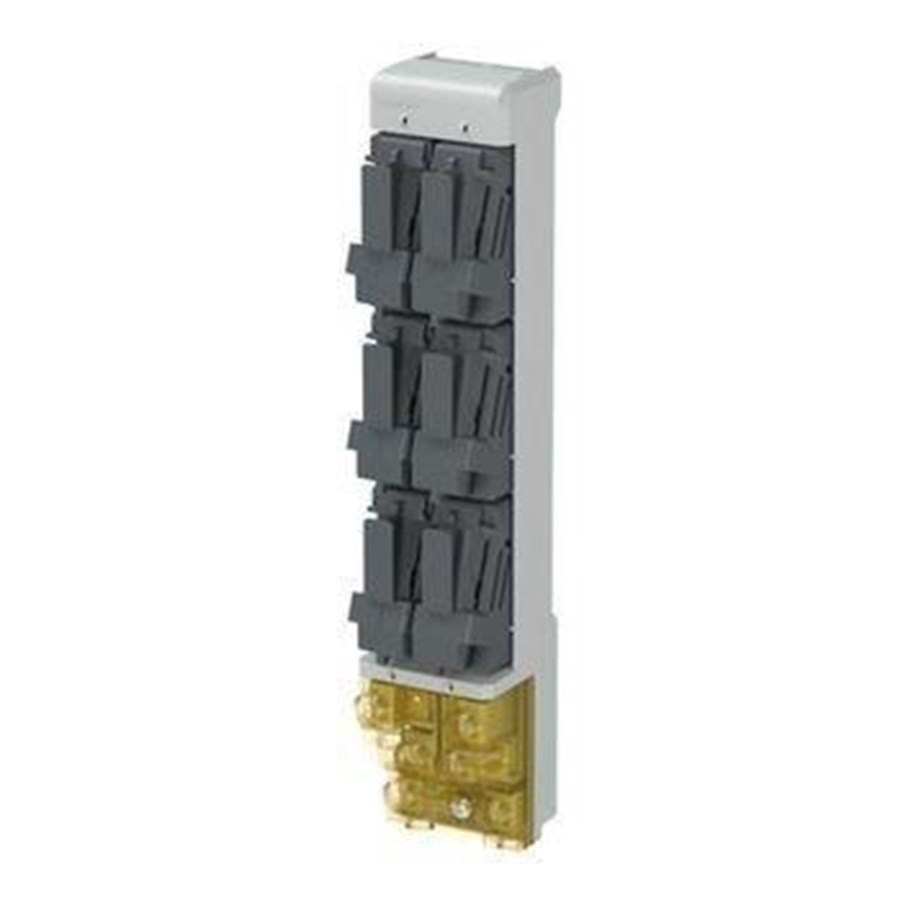

ABB kabeldon sld263 fuse switch disconnector 2 x 63a - diaz
ABB Kabeldon SLD263 fuse switch disconnector 2x63A outgoings groups for Diazed fuses. Cable size mm2: 1,5-25 Al/Cu. Mounting width : 75mm / 6 moduls. Degree of protection IP2X. For mounting in ABB cabinets with Kabeldon busbar system. Rated Insulation Voltage (Ui) 690 V.Rated Operational Current (Ie) 63 A.Gauge piece for SLD 263, type GP, are available for fuse size: 10A, 16A, 20A, 25A,35A and 50A.
2 708,00 kr
2 166,40 kr eksl. mva
Gratis frakt (privatkunde)
Fjernlager, 2-4 dager til forsendelse
ABB Cable Duct SLD263 Fuse Switch List 2 x 63A - Diaz Product Description: ABB Cable Duct SLD263 fuse switch list with 2x63A output for fuses DZ, DII or DIII. Cable cross-section mm2: 1.5-25 Al/Cu. Mounting width: 75mm / 6 modules. Enclosure class IP2X. Fuse switch list for installation in ABB cable cabinets with Kabeldon busbars. Rated operating voltage (Ue) of 400V. Thermal rated current (Ie) of 63A and breaking category (le) AC22-B. There is the possibility to purchase a reduction piece, type GP, when using smaller fuses:10A,16A,20A,25A,35A and50 A .
