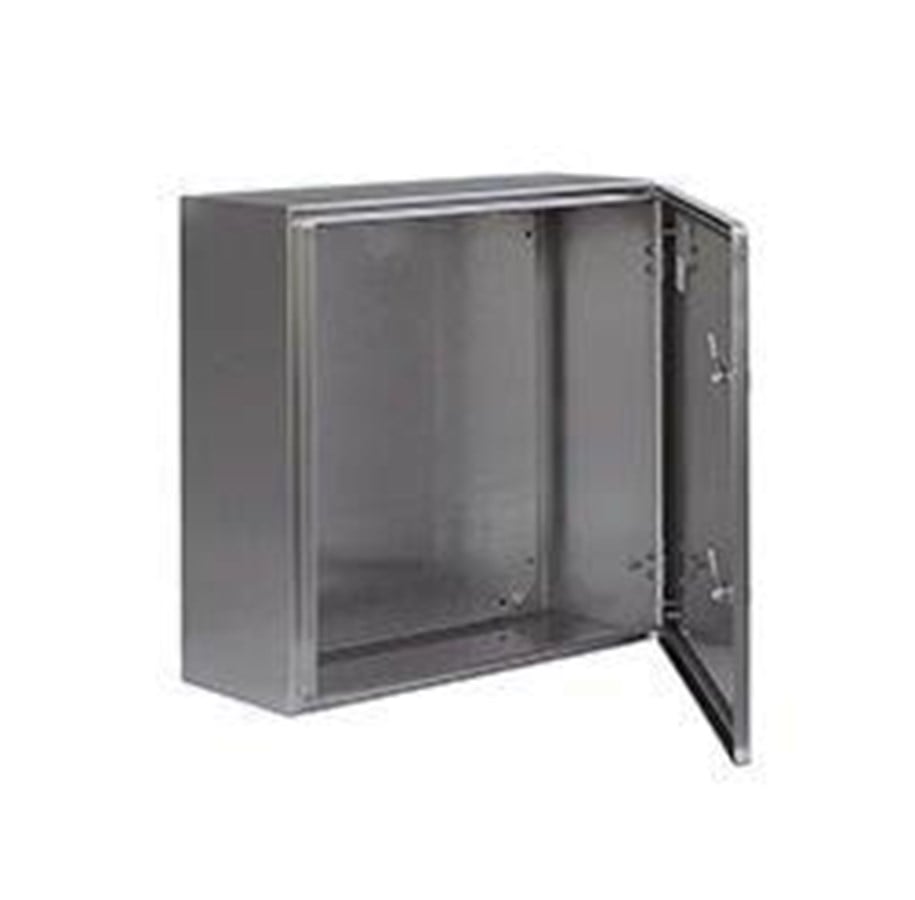

ELDON Wall mounted 240x240x150

Wall cabinet 240x240x150 ASR0242415 Product description: Description: RFt wall cabinet 240x240x150 Material: AISI 304 polished stainless steel. Cabinet: 1mm/1.5mm ASR0505021 and larger Door: 1.5mm/2mm ASR1008030 and larger, Mounting plate: 2mm galvanized Frame: Edge-folded and fully welded. Door opening angle of 130°. Pre-polished AISI304. Hinges with removable split pin for right or left opening. Polyurethane gasket in one piece. The inside of the door has four welded threaded studs for mounting accessories Locks : Chrome-plated DIN lock with a movement of up to 90° with anti-vibration mechanism, Stainless steel locks and other versions can be supplied as accessories Mounting plate : Attached to M8 screws welded to the back wall of the cabinet In cabinets with a height of over800 mm, the mounting plate has a fold on all four sides for extra stability When using AMG accessories, the mounting plate can be adjusted in depth Cable entry : No flange openings as standard to maximize sealing and clean lines Degree of protection : In accordance with IP66and NEMA4X,12and13 IK10 Surface treatment : Polished (average0 .5 microns) Delivery includes : Mounting plate complete with fixing accessories and grounding connection.Packed in recycled packaging Additional information Use temperature regulation , ventilation ,and rain cover recommended for demanding outdoor use Please see section on general accessories and technical chapter for further information Technical specifications Color Stainless Steel Width240 Height240 Depth150
