ELDON Wall mounted 400x300x150

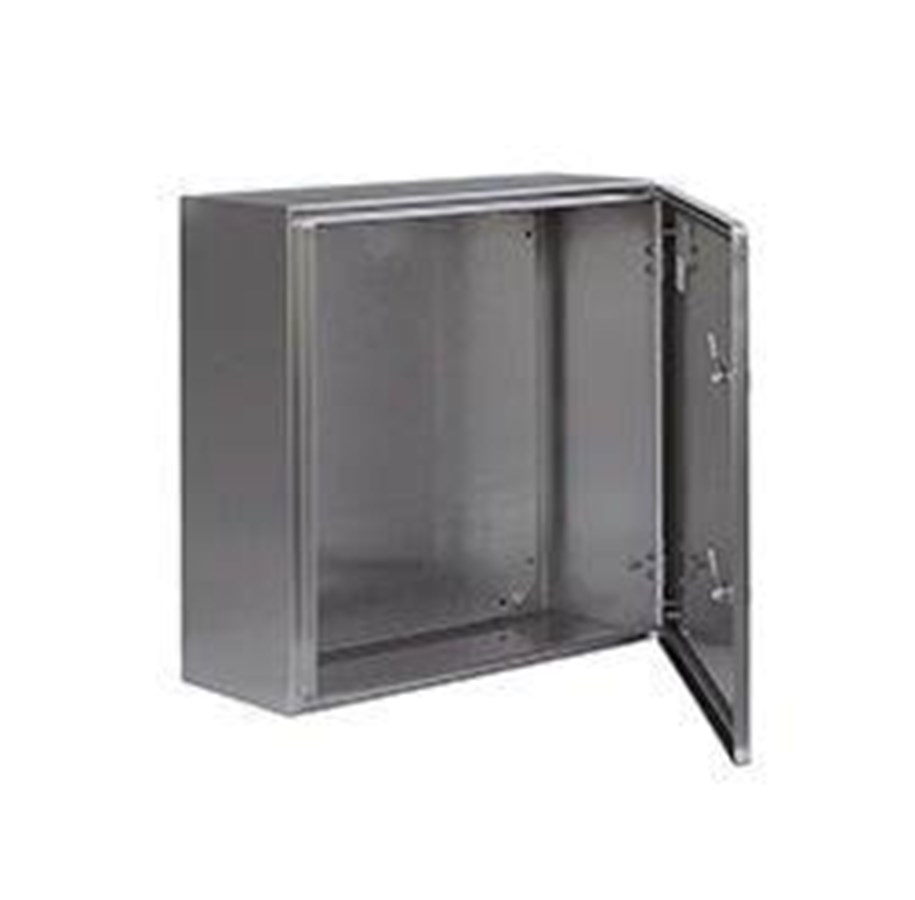

Wall cabinet 400x300x150 ASR0403015 Product description: Description: RFt wall cabinet 400x300x150 Material: AISI 304 / AISI 316L polished stainless steel. Cabinet: 1mm/1.5mm ASR0505021 and larger Door: 1.5mm/2mm ASR1008030 and larger, Mounting plate: 2mm galvanized Frame: Bent and fully welded. Door opening angle of 130°. Pre-polished AISI304. Hinges with removable split pin for right or left opening doors. Polyurethane gasket in one piece on the inside of the door with four welded threaded studs for mounting accessories.Locks : Chrome-plated DIN lock with a movement of up to 90° with anti-vibration mechanism made from stainless steel, other versions can be supplied as accessories.Mounting plate : Welded onto M8 screws on the back of the cabinet.In cabinets over a height of 800 mm, all four sides have an edge bend for extra stability.When using AMG accessories, mounting plates can be adjusted in depth.Cable entry : No flange openings as standard to maximize sealing and clean lines.Degree of protection : In accordance with IP66 and NEMA4X ,12and13.IK10.Surface treatment : Polished (average roughness value Ra =0,5 µm)Delivery includes : Mounting plate complete with mounting hardware and earthing connection.Packaged in recycled packaging.Additional information:The use of temperature regulation, ventilation,and rain covers is recommended for demanding outdoor applications.Please refer to section on general accessoriesand technical chapter for further information.Technical specificationsColor Stainless SteelWidth300Height400Depth150
