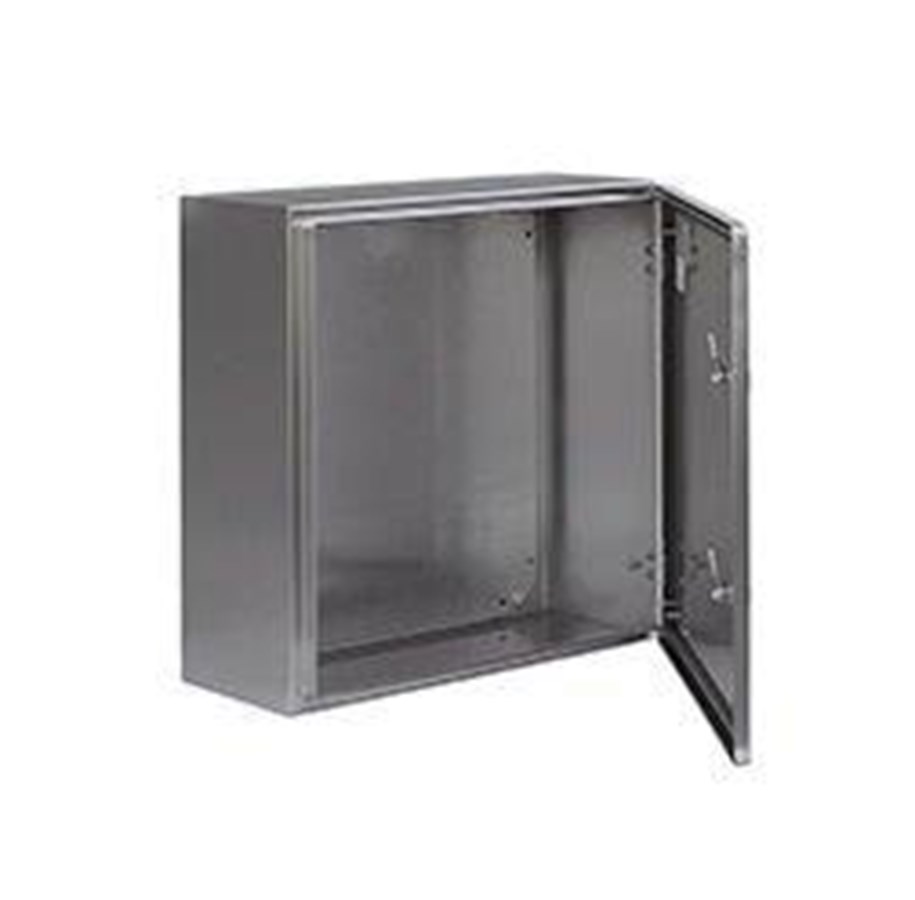

ELDON Wall mounted 500x400x210
Veggmontert, 500x400x210, Kompakt kabinett, 1-dør, med MP, rustfritt stål 304, IP66
4 904,00 kr
3 923,20 kr eksl. mva
Gratis frakt (privatkunde)
Bestillingsvare, leveringstiden kan ikke opplyses.
Wall cabinet H500xB400xD210 ASR0504021 Product description: Description: RFt wall cabinet 500x400x210 Material: AISI 304 brushed stainless steel. Cabinet: 1mm/1.5mm ASR0505021 and larger Door: 1.5mm/2mm ASR1008030 and larger, Mounting plate: 2mm galvanized Frame: Folded and fully welded. Door opening angle of 130°. Pre-brushed AISI304. Hinges with removable split pin for right or left opening doors. Polyurethane gasket in one piece. The inside of the door has four welded threaded studs for mounting accessories Locks : Chrome-plated DIN lock with a movement of 90° with anti-vibration mechanism, Stainless steel locks and other versions can be supplied as accessories Mounting plate : Fixed on M8 screws welded to the back wall of the cabinet In cabinets with a height of over 800 mm, the mounting plate has a fold on all four sides for extra stability When using AMG accessories, the mounting plate can be adjusted in depth Cable entry : No flange openings as standard to maximize sealing and clean lines Degree of protection : In accordance with IP66 and NEMA4X,12,and13 IK10 Surface treatment :240s brushed (average thickness is .5 microns) Delivery includes :Mounting plate complete with fixing hardware & earthing connection.Packed in recycled packaging Additional information Use temperature control ventilation & rain hood recommended for demanding outdoor applications Please see general accessory section & technical chapter for further information Technical specifications Color Stainless Steel Width (W)400 Height (H)500 Depth(D)210
